Custom Anodized Extruded Aluminum Heat Sink for Motor Enquiries with Drilled Mounting Flanges
Generate QR code
Product description
Project & Delivery Requirements
-
Grade6000 SeriesTemperT3-T8
-
ApplicationHeat Sink, Industrial EquipmentShapeT - Profile
-
Alloy Or NotIs AlloyModel NumberDmetal-200329
-
Tolerance±1%Processing ServiceBending, Decoiling, Punching, Cutting
-
Delivery Time22-30 daysProduct material6061 6063 Aluminum
-
ColorBlack MetalSizeCustomized
-
Surface treatmentAnodized/oxide etc /powder coatedToolingMade by ourself
-
PackingCartonProcessSand casting +CNC Machining
-
CertificationISO9001-2008MachiningAvailable
Mounting flanges on both sides of the fin field

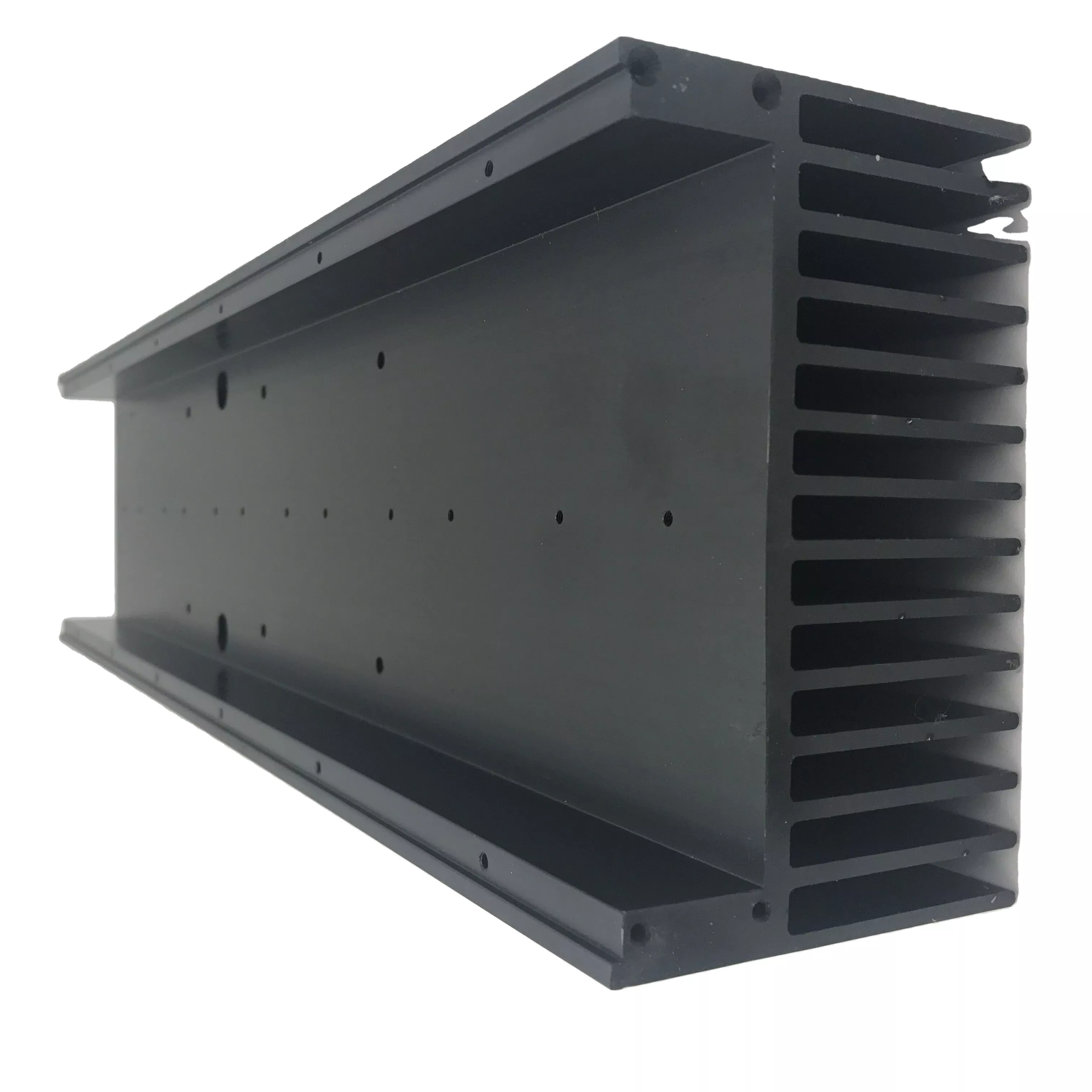

The dark example has parallel fins between flat side flanges with a series of fixing holes. Dimension the flange widths and hole positions relative to the contact face, including the clearance needed around the fasteners.
Motor installation information
For a motor-related heat sink enquiry, provide the actual motor interface and heat-source layout. State the required aluminum alloy, temper and profile length, with any machined areas and the anodizing specification.
Include the operating-space limits, airflow and thermal requirements. Add quantities and inspection criteria for the mounting pattern and contact surfaces; the photographs alone do not define compatibility with a particular motor.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
