Custom 6061 6063 Aluminum Extrusion Heat Sink Profiles with Stepped Fin Heights
Generate QR code
Product description
Project & Delivery Requirements
-
Grade6000 SeriesTemperT3-T8
-
ApplicationHeat Sink, Industrial EquipmentShapeT - Profile
-
Alloy Or NotIs AlloyModel NumberDmetal-2309
-
Tolerance±1%Processing ServiceBending, Decoiling, Punching, Cutting
-
Delivery Time22-30 daysProduct material6063 Aluminum
-
ColorBlack MetalSizeCustomized
-
Surface treatmentAnodized/oxide etc /powder coatedToolingMade by ourself
-
PackingCartonProcessSand casting +CNC Machining
-
CertificationISO9001-2008MachiningAvailable
Specify the height changes across the fins

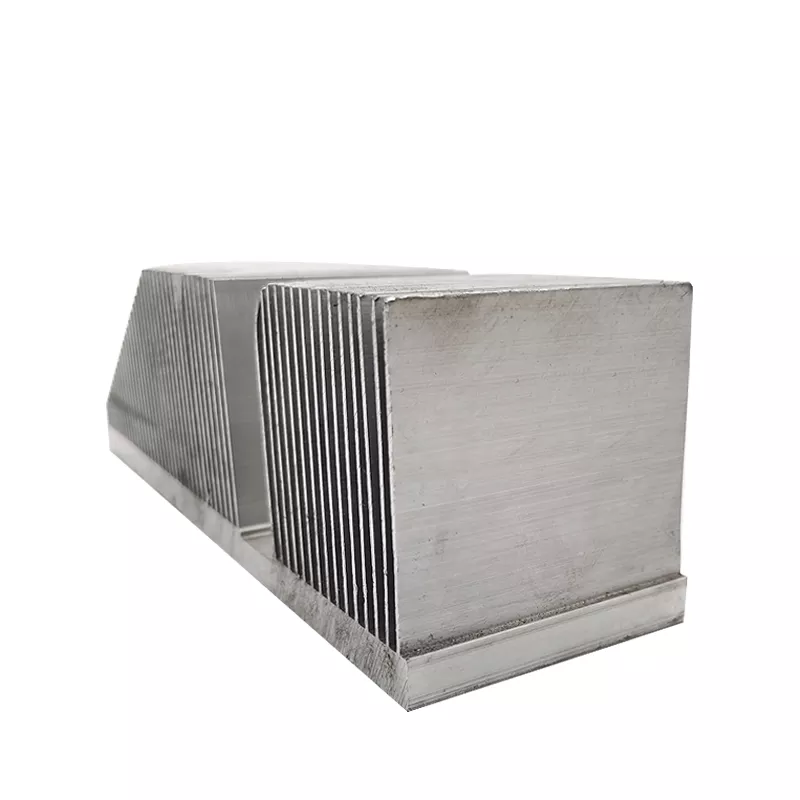

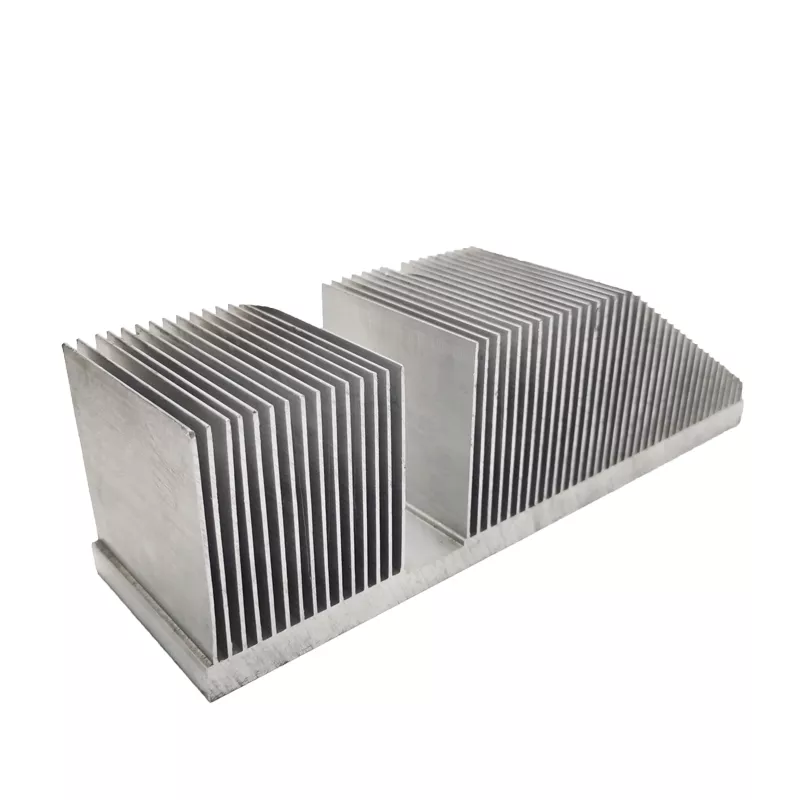

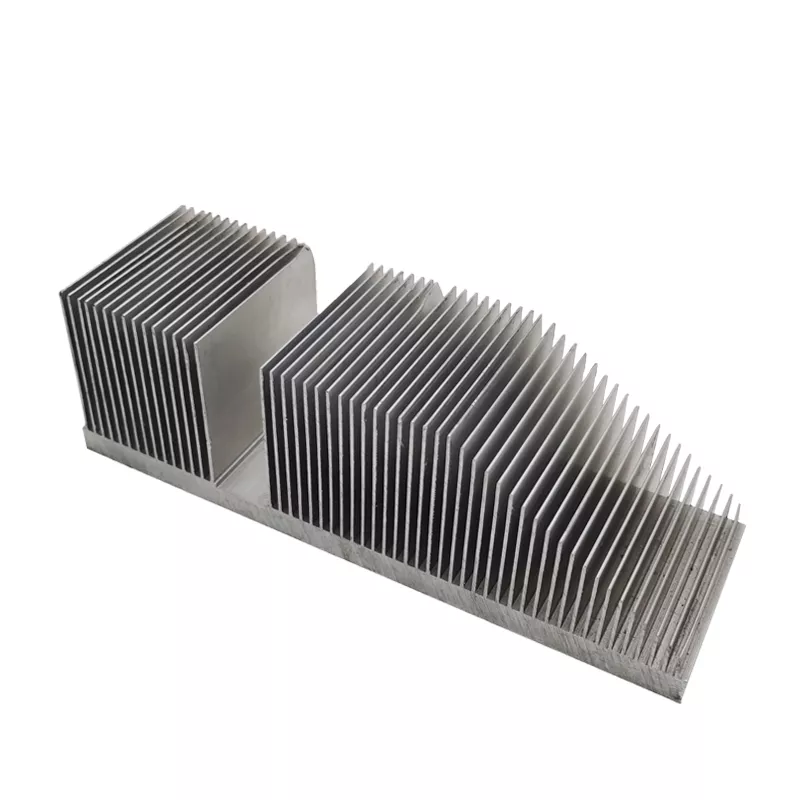

The sample has groups of parallel fins with different heights on a common base. Define each fin group, the transition between them and the overall envelope so the profile can be reviewed against the available installation space.
For a 6061 or 6063 aluminum extrusion enquiry, provide the selected alloy and temper, cut length and any secondary-machined areas. Identify the heat-source contact face and the finish or anodizing requirements.
Cooling-space requirements
Include the mounting arrangement, heat-source layout, airflow and thermal design requirement. Mark critical fit dimensions and add quantities and a drawing revision for the custom section review.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
