Custom Anodized Aluminum Extrusion Heat Sink Profiles with Broad Mounting Surfaces and an Underside Fin Bank
Generate QR code
Product description
Project & Delivery Requirements
-
Grade6000 SeriesTemperT3-T8
-
ApplicationHeat SinkShapeT - Profile
-
Alloy Or NotIs AlloyModel NumberS2410
-
Tolerance0.05mmProcessing ServiceBending, Decoiling, Welding, Punching, Cutting, extruding
-
Delivery Time15-21 daysProduct nameCustom Extrusion Aluminum Heat Sink Enclosure
-
ColorPanton ColorSurface treatmentAnodized/oxide etc /powder coated
-
ToolingMade by ourselfCertificationISO9001:2008/ ISO14001:2004/ OHSAS 18001:1999/PPG/TUV
-
KeywordHeatsinkMaterial & TemperAlloy 6063-T5/6061-T6
-
Deep processExtrusion Driling Precison Cutting CNCFabricationExtruded+cutting+machining
-
LengthLongest 6 Meters

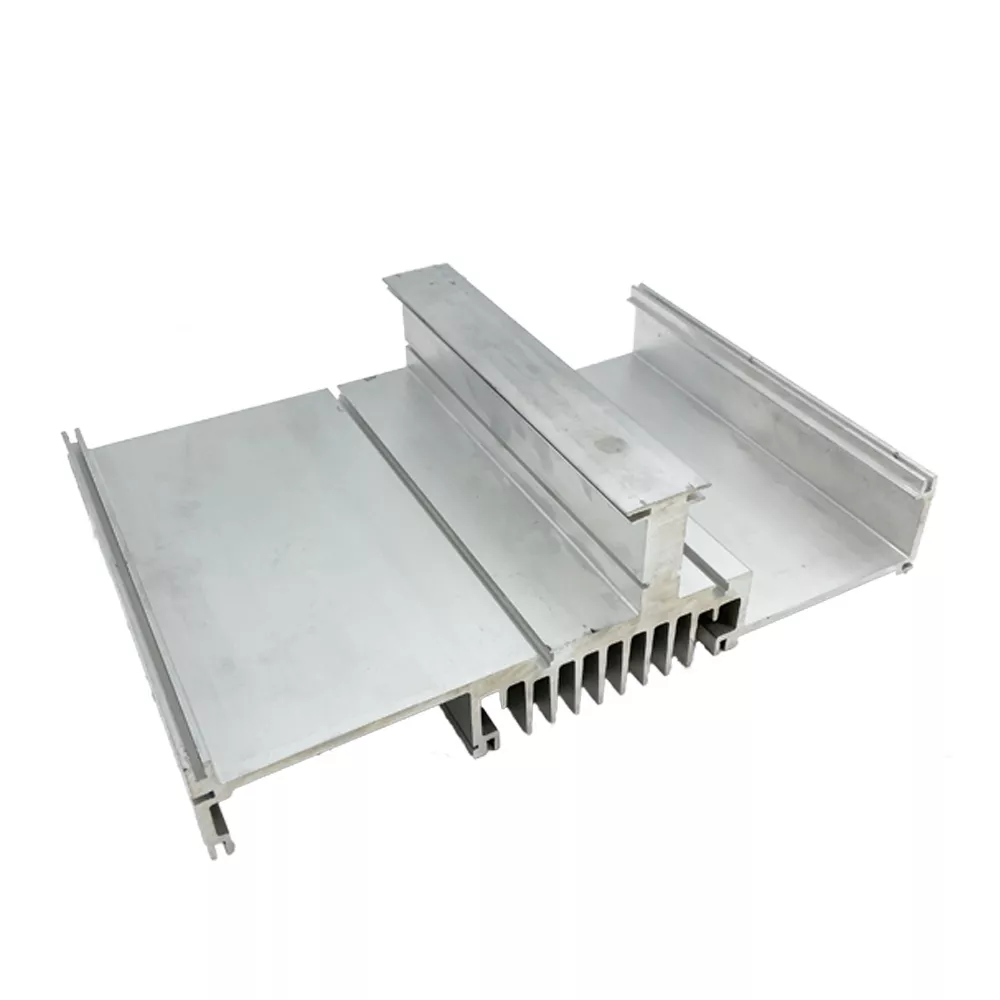

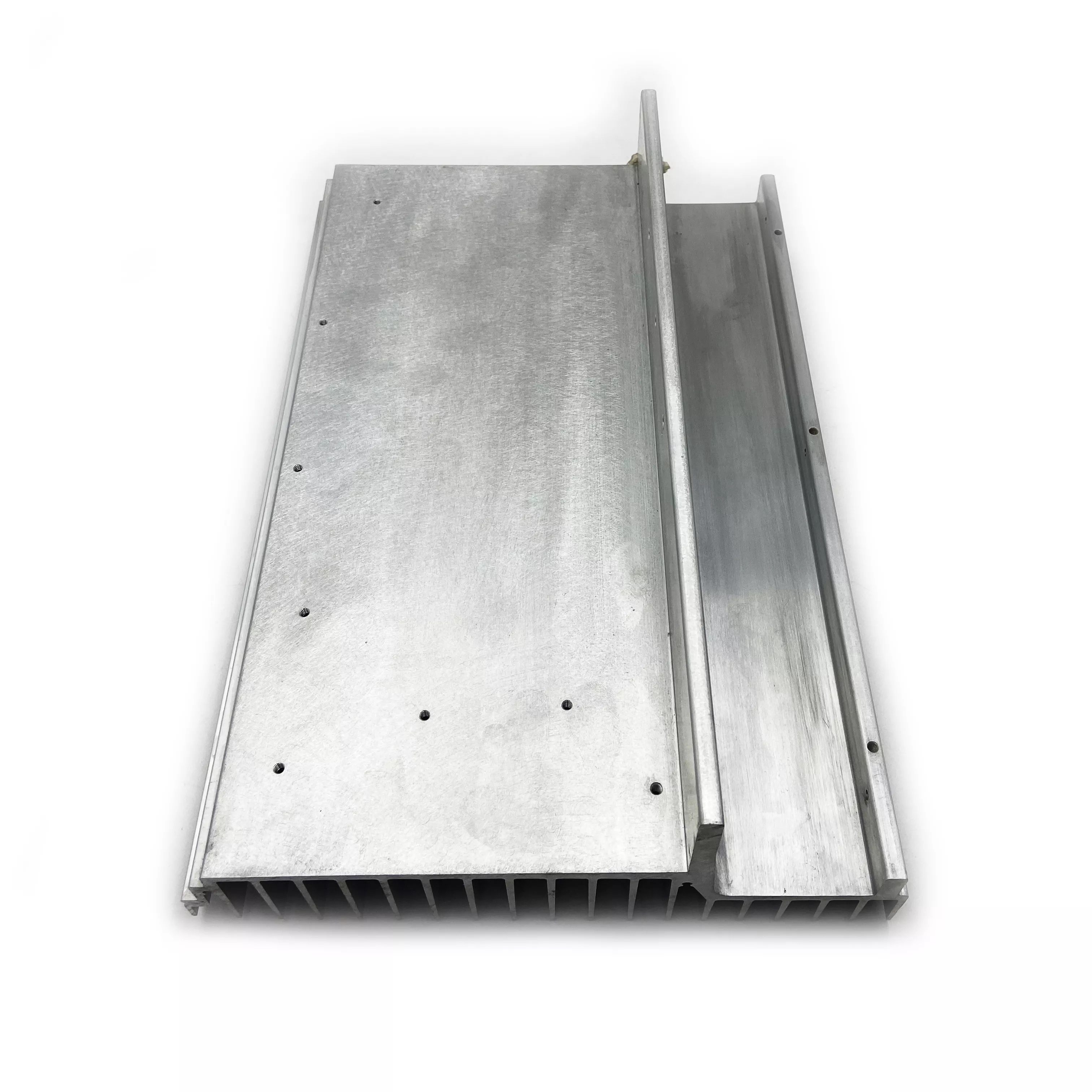

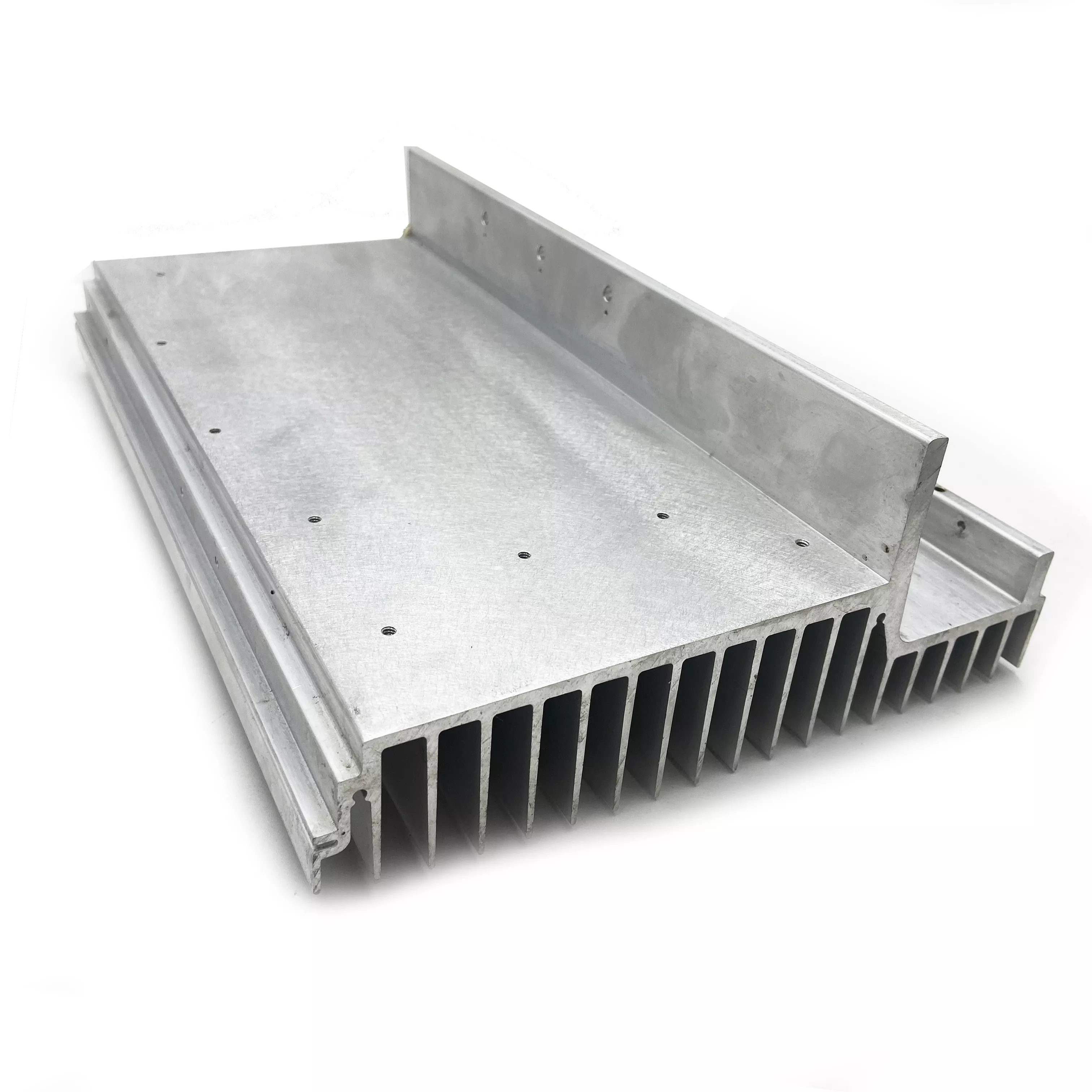

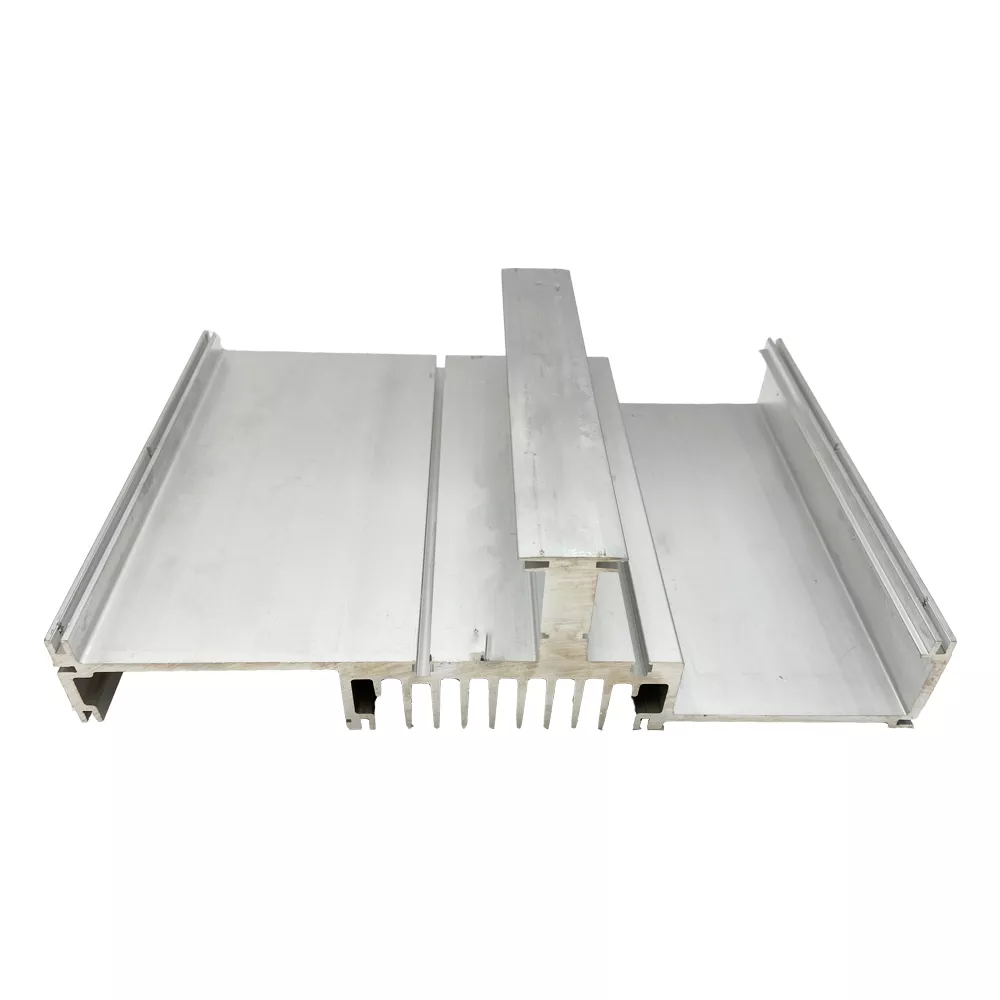

Mounting surfaces above an underside fin bank
The example combines broad flat areas, raised longitudinal walls and fins beneath the central part of the section. Identify the component contact surfaces, edge interfaces and required clearance around the lower fins in the assembly drawing.
For model S2410, extrusion, cutting and machining are listed with 6063-T5 or 6061-T6 aluminum. Specify the alloy, temper, profile length and any holes or end features. Include the required anodized finish, color and quantities, or select another listed finish for review. Provide heat input, airflow and allowable temperatures when assessing the section for a cooling application.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
