Custom Anodized Aluminum Extrusion Heat Sink with CNC Machining and Mounting Flanges
Generate QR code
Product description
Project & Delivery Requirements
-
Grade6000 SeriesTemperT3-T8
-
ApplicationTransportation Tools, Industrial EquipmentShapeT - Profile
-
Alloy Or NotIs AlloyModel NumberDM2012
-
Tolerance±1%Processing ServiceBending, Decoiling, Welding, Punching, Cutting, extruding
-
Delivery Time22-30 daysProduct material6061 6063 Aluminum
-
ColorBlack MetalSizeCustomized
-
Surface treatmentAnodized/oxide etc /powder coatedToolingMade by ourself
-
PackingCartonProcessSand casting +CNC Machining
-
CertificationISO9001-2008MachiningAvailable
Relate the mounting flanges to the heat-source face

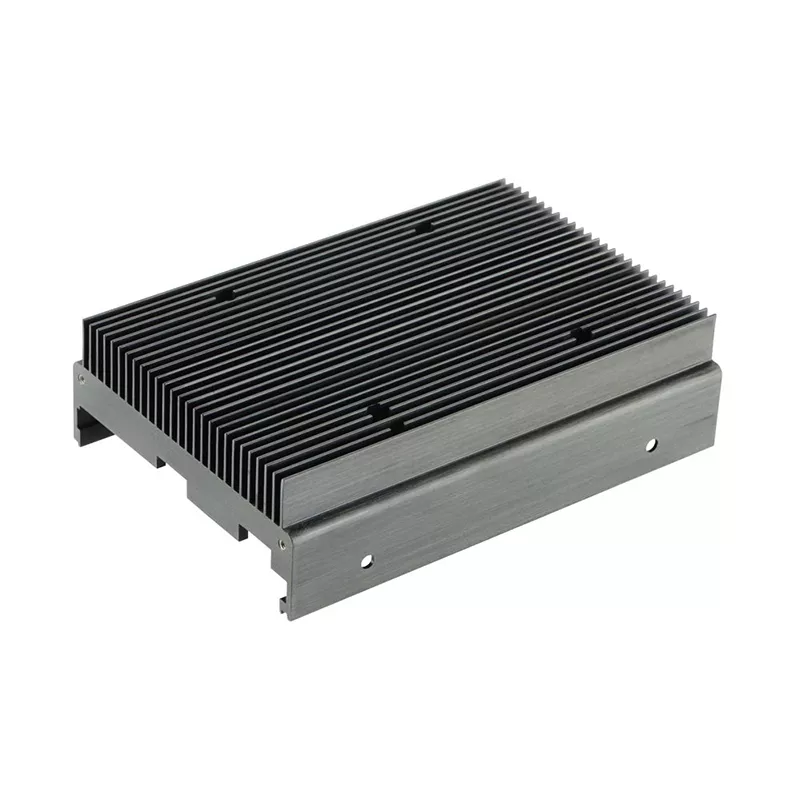

The retained example shows a dark finned section with outward mounting areas and holes in the sides. Identify the contact face and dimension the mounting interfaces from the same references used to position the heat source.
Separate the section from secondary machining
For a custom aluminum extrusion, define the alloy and temper, full cross-section and cut length. Show hole positions, end features and any required machined areas on the component drawing. Include the anodizing specification and surfaces needing masking or a particular finish condition.
Provide installation clearance, airflow and thermal requirements. Quantities and inspection criteria for the mounting holes and contact surface help define the enquiry scope.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
