Custom Small Brass Parts CNC Milling Turning Machining with Bores Slots and Mounting Holes
Generate QR code
Product description
Project & Delivery Requirements
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Rapid Prototyping, Turning, Wire EDM
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model NumberS240401Product namecustom cnc machined parts
-
Surface treatmentanodizing/powder coating/painting/polishing / chrome plating etcMaterialAluminum Alloy
-
Drawing Format2D/(PDF/CAD)3D(IGES/STEP)MOQ100 pcs
-
Materials Avaliablealuminum/ stainsteel steel/ brass/ zincCertificationISO9001:2015
-
ProcessCnc Machining+deburrs +surface treatmentLogoAccept Custom Logo
-
Tolerance0.01mm

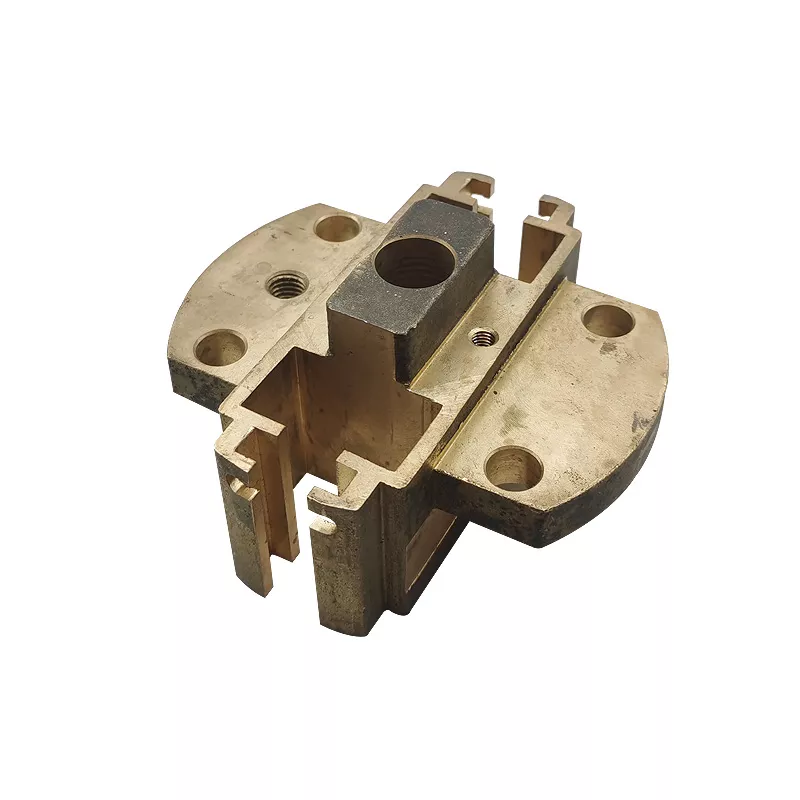

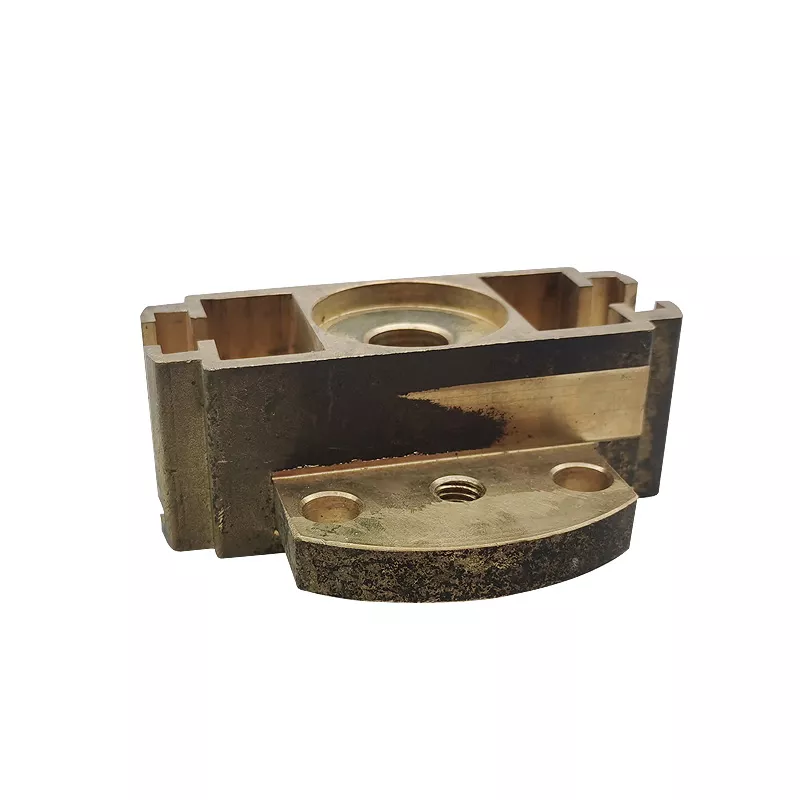

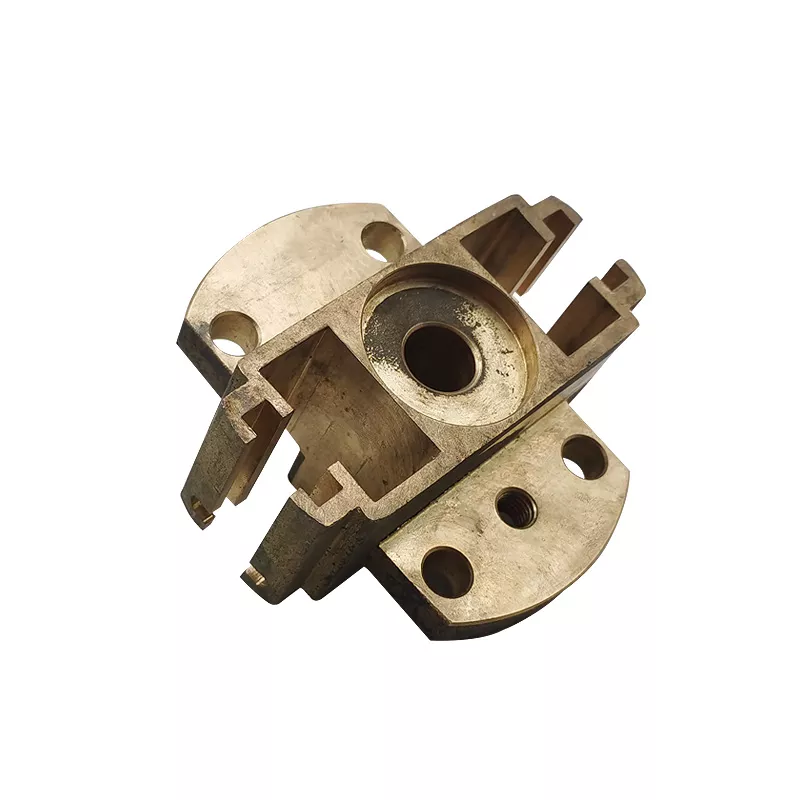

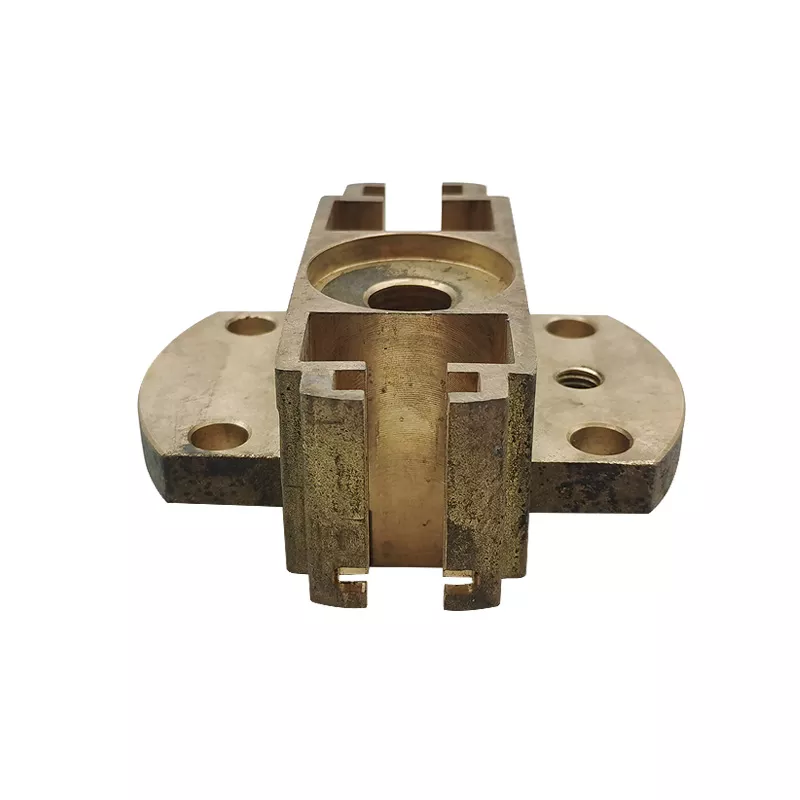

A central bore within a shaped mounting body
The example has a round opening, split or slotted features and several mounting extensions with holes. Establish the bore axis and reference faces, then locate the holes and outer features from that system.
For a small brass-part enquiry, specify the brass grade and the required turning, milling and drilling. Define the finish and edge conditions at the bore, slots and mating faces.
Assembly and inspection information
Include the mating component geometry, quantities and drawing revision. Mark critical fit dimensions and inspection requirements for the central opening and fixing interfaces.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
