Custom Industrial Aluminum Extrusion Profiles with Angled Hollow Sections CNC Machining China Supplier
-
Grade6000 SeriesTemperT3-T8
-
ApplicationHeat SinkShapeAngle
-
Alloy Or NotIs AlloyModel NumberS 2306
-
Tolerance0.02mm, ±0.02Processing ServiceBending, Decoiling, Welding, Punching, Cutting, Machining
-
Delivery Time15 daysProduct nameCustom CNC Machining Aluminum Extrusion Profiles
-
Material6063/ 6061 etcMachiningAvailable
-
Surface treatmentAnodized/oxide etc /powder coatedToolingMade by ourself
-
Surface ColorCustomized Panton Colors

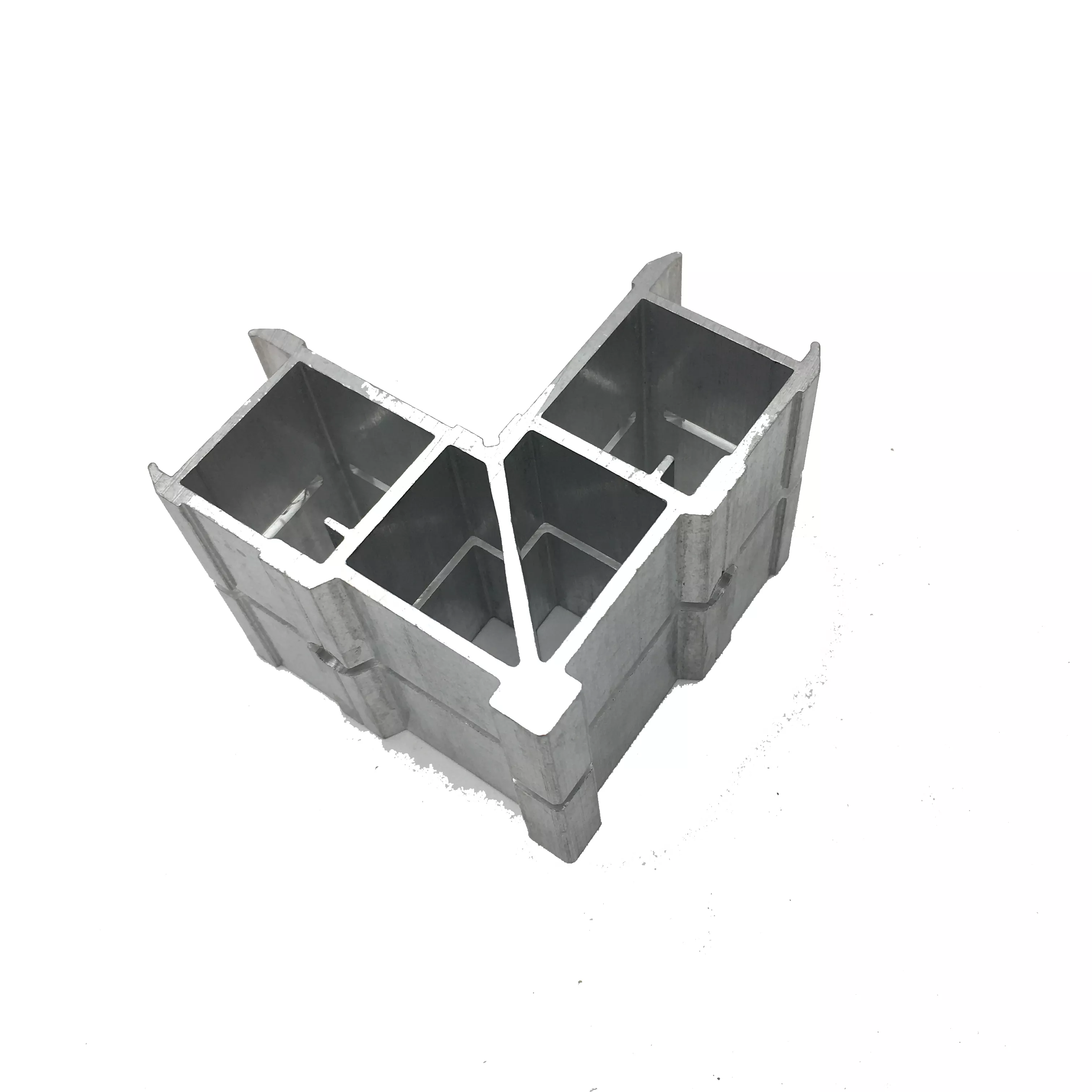

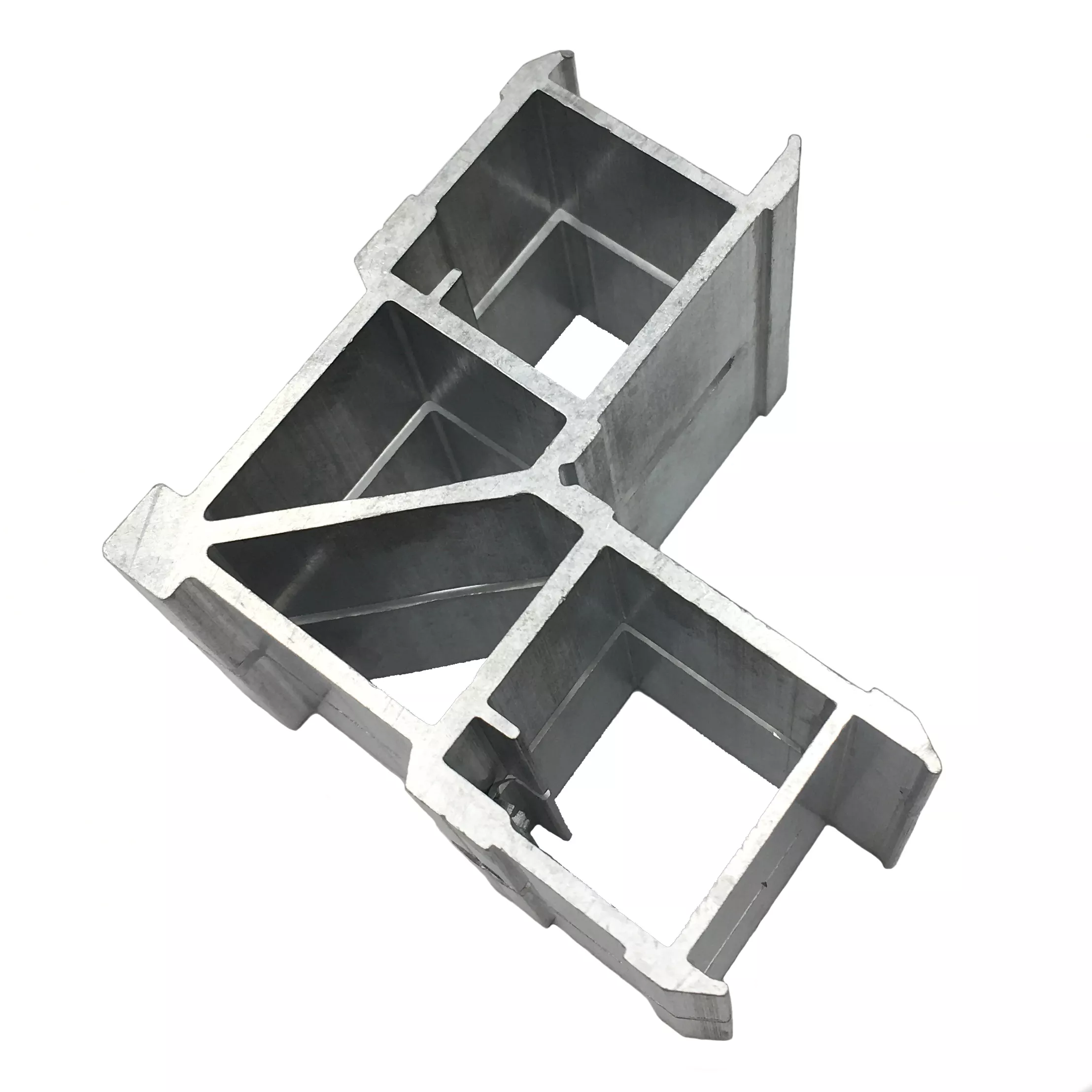

Multiple hollow cells in an angled section
The pictured industrial aluminum profile brings several hollow cells together around an angled cross-section. Openings are also visible through portions of the walls. A custom extrusion enquiry should distinguish the continuous section from any openings or end features that require secondary machining.
Describe the complete part
- Supply the cross-section with the angle, wall dimensions and hollow-cell layout.
- Define the finished length and locate cutouts from the part references.
- Identify adjoining components where they determine the profile's position or clearance.
6063 and 6061 are listed material options, with CNC machining available. Specify the chosen alloy and temper, the required machining scope and the dimensions to inspect on the finished piece.
Anodized, oxide and powder-coated surface options can be assessed for the selected metal and color. Mark mating faces or openings that need a controlled finished condition. Include quantities and drawing revision so the quotation covers the same geometry, finish and supplied-component scope.
