Custom CNC Machined Aluminum Extrusion Housing Profiles with Open Channels and External Fins for Industry
Generate QR code
Product description
Project & Delivery Requirements
-
Grade6000 SeriesTemperT3-T8
-
ApplicationHeat SinkShapeAngle
-
Alloy Or NotIs AlloyModel NumberS S2306
-
Tolerance0.02mm, ±0.02Processing ServiceBending, Decoiling, Welding, Punching, Cutting, Machining
-
Delivery Time15 daysProduct nameCustom CNC Machining Aluminum Extrusion Profiles
-
Material6063/ 6061 etcMachiningAvailable
-
Surface treatmentAnodized/oxide etc /powder coatedToolingMade by ourself
-
Surface ColorCustomized Panton Colors

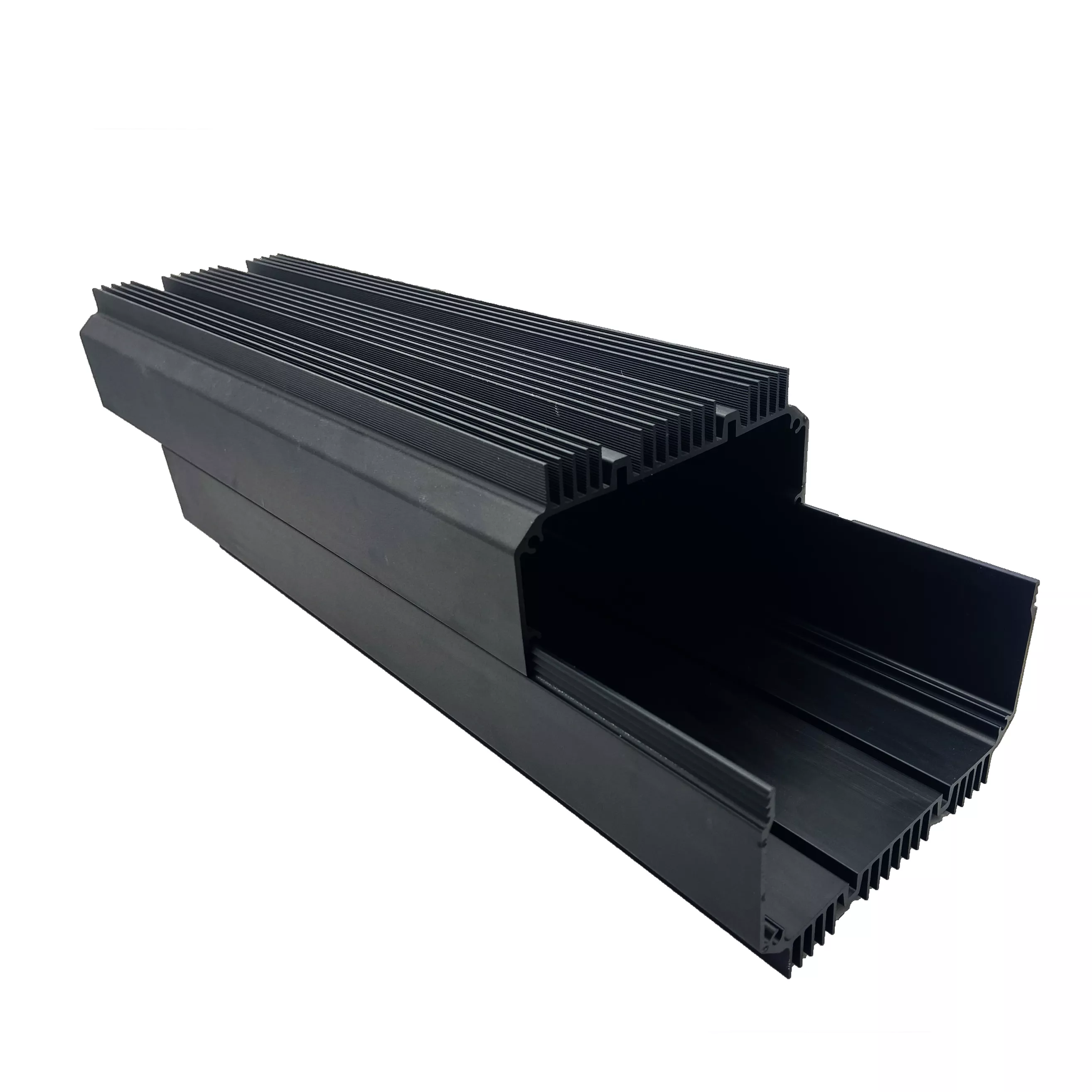

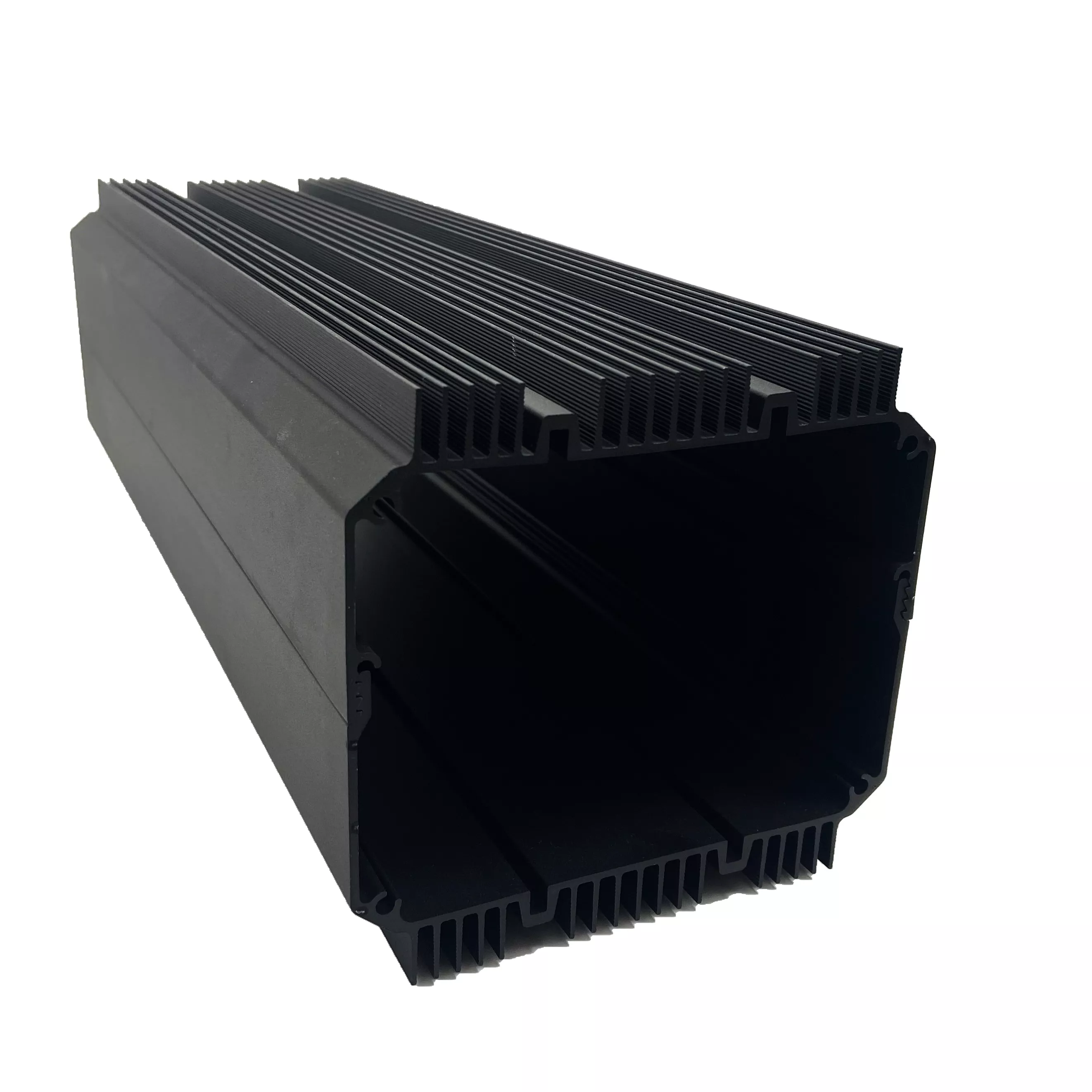

Housing section with open access and external fins
The main example has an open side, internal longitudinal channels and fins along the outside. Define the internal envelope, mating cover edges and any end plates in the assembly drawing, including the features that locate internal components.
Model S S2306 lists custom CNC machining aluminum extrusion profiles in 6063 or 6061. Specify the alloy, temper, cut length and machining requirements for each housing section. Anodized, oxide and powder-coated finishes with customized colors are listed options. Include quantities and inspection datums. Confirm covers, end plates and fastening hardware as separate supply items when required; they are not established by the open section photograph.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
