Custom Precision Aluminum CNC Milling and Turning Parts with Circular Plates and Countersunk Fixing Holes
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Rapid Prototyping, Turning, Wire EDM
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model NumberDmetal-200464Surface treatmentSmooth
-
CertificationISO9001:2008MaterialAluminum Alloy
-
Surface finishAnodized/oxide etc /powder coatedSizeCustomized Size
-
Tolerance±0.02mmToolingMade by ourself
-
Drawing Format2D/(PDF/CAD)3D(IGES/STEP)MOQ100pcs
-
Materials Avaliablealuminum/ stainsteel steel/ brass/ zinc

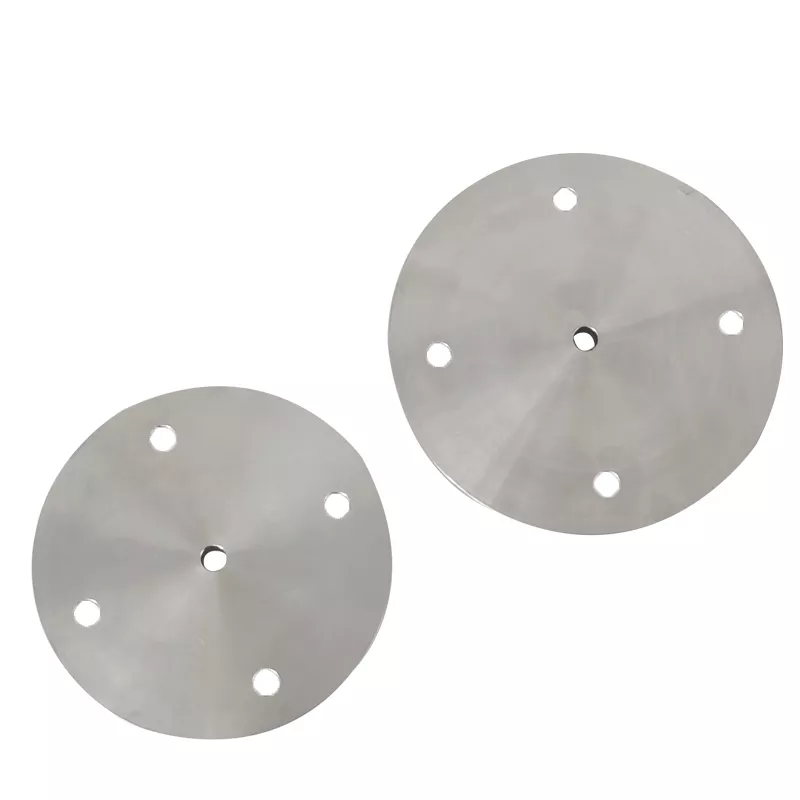

The circular plate examples have four countersunk fixing holes, a small central opening and a rounded outer edge. Their diameter, thickness and hole pattern should be defined together on the ordered drawing, including the finished condition of the mounting faces.
Fixing pattern and inspection references
Specify the hole circle or coordinate dimensions, countersink geometry and center-opening size. Locate the pattern from the selected references and mark any faces requiring flatness or other acceptance criteria for the assembly.
Dmetal-200464 lists aluminum alloy with customized sizes and anodized, oxide or powder-coated finish options. State the alloy and surfaces needing masking. PDF, CAD, IGES and STEP formats are listed, with a minimum order of 100 pieces. Include quantities, drawing revision and feature-level inspection requirements for quotation.
