Custom Stainless Steel CNC Machining Parts with Split Bores and Mounting Flanges for 5-Axis Milling Setup Review
Generate QR code
Product description
Project & Delivery Requirements
-
CNC Machining or NotCnc MachiningTypeMilling
-
Material CapabilitiesBrass, Aluminum, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel Alloys, OtherMicro Machining or NotMicro Machining
-
Model NumberS2410MaterialHardened Metals
-
ProcessCNC Machining Milling TurningSurface treatmentPainting\Powder Coating\Plating\Polishing
-
Drawing Format2D/(PDF/CAD/DWG/DXF)3D(IGES/STEP/VDA)ColorCustomized Panton Color or Ral Color
-
Processing TypeAxis CNC Machining Service
Split bore and transverse fixing holes

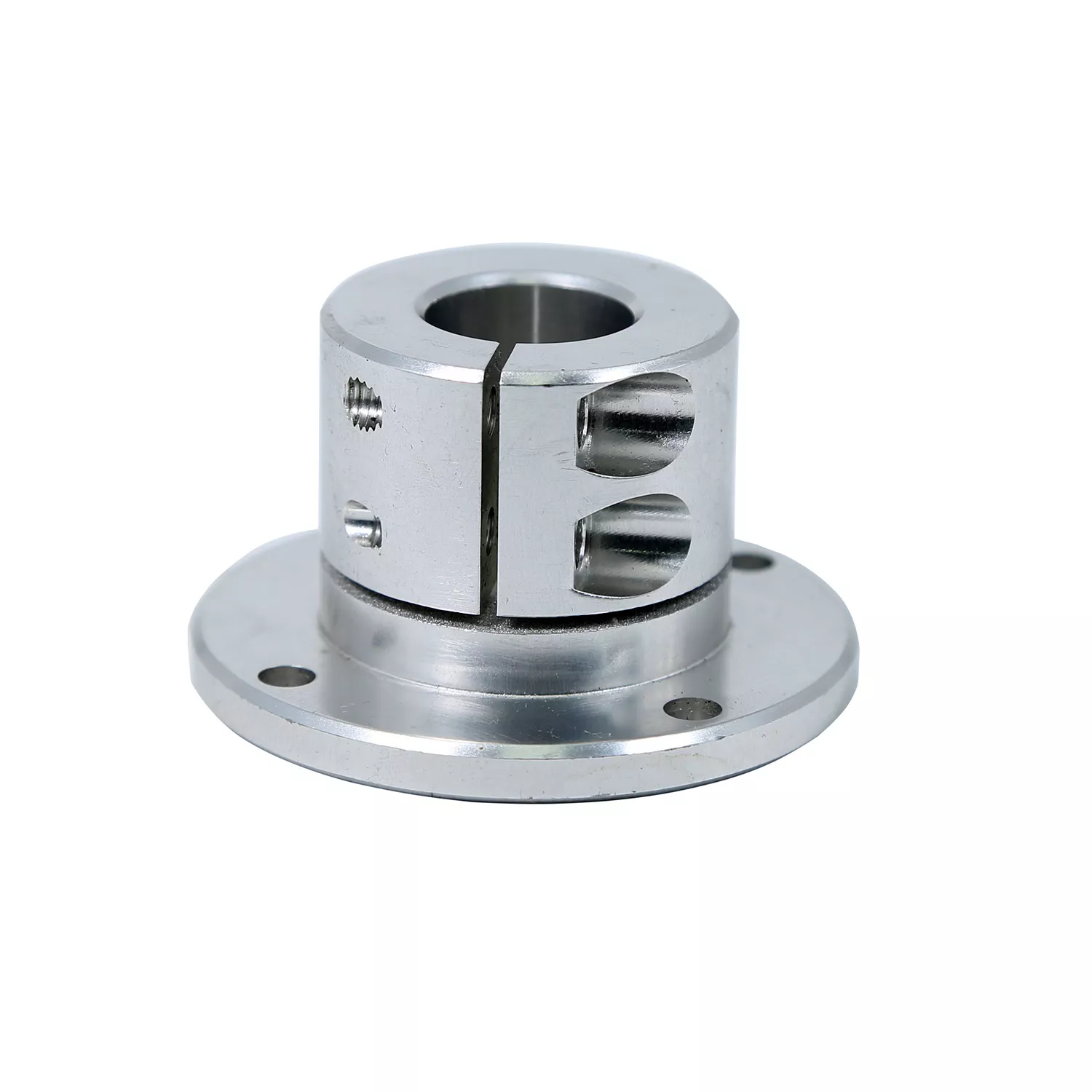

The example has a cylindrical opening divided by a narrow slit, transverse fixing holes and a round mounting flange. Define the bore fit and the slit geometry with the mating component in place. Locate the flange holes from the bore axis and identify the surfaces used for assembly.
Model S2410 lists CNC milling and turning, with stainless steel among machining capabilities. Confirm the actual grade and quantities for the selected part. Provide PDF, CAD, DWG, DXF, IGES, STEP or VDA drawings. State any five-axis setup needs separately for assessment, then agree the finish and inspection requirements; no clamping force is established by the image.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
