OEM Custom Precision Aluminum CNC Milling Spare Parts with Slots and Notched Flanges
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Rapid Prototyping, Turning, Wire EDM
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model NumberDmetal-200448Surface treatmentSmooth
-
CertificationISO9001:2008MaterialAluminum Alloy
-
Surface finishAnodized/oxide etc /powder coatedSizeCustomized Size
-
Tolerance±0.1ToolingMade by ourself
-
Drawing Format2D/(PDF/CAD)3D(IGES/STEP)MOQ100pcs
-
Materials Avaliablealuminum/ stainsteel steel/ brass/ zinc

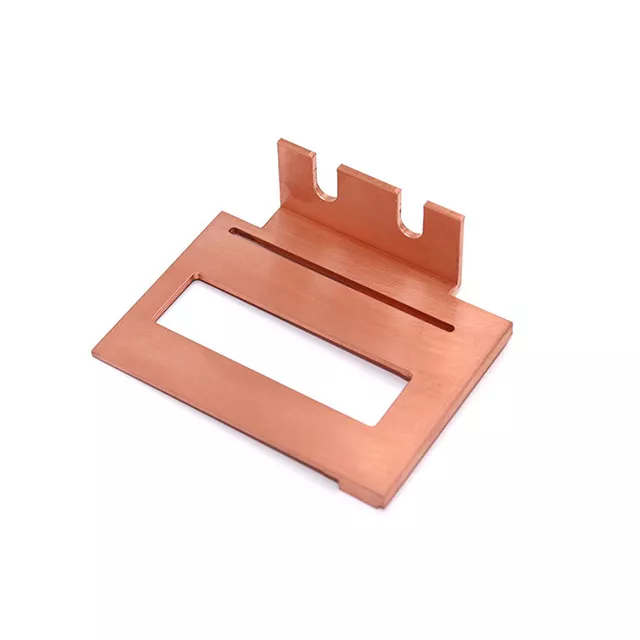

The illustrated component combines a rectangular opening and long narrow slot with an upright flange containing open notches. Its geometry brings the flat mounting area and flange features into one custom CNC milling enquiry.
Define the flange relationship
Specify the flange height, its position relative to the base, and the notch widths and spacing. Dimension both openings and mark the faces used to check alignment. Include adjoining components where they establish clearance or fixing requirements.
Dmetal-200448 is listed in aluminum alloy with customized sizes. Select the alloy and required finish, including anodized, oxide or powder-coated options where appropriate. Provide PDF, CAD, IGES or STEP drawings, quantities and feature tolerances for review. The listed minimum order is 100 pieces.
