OEM ODM Custom 6061 6063 T5 Aluminum Extrusion Heat Sink Profile with Dense Parallel Fins
Generate QR code
Product description
Project & Delivery Requirements
-
Grade6000 SeriesTemperT3-T8
-
ApplicationHeat Sink, Industrial EquipmentShapeT - Profile
-
Alloy Or NotIs AlloyModel NumberDmetal-200329
-
Tolerance±1%Processing ServiceBending, Decoiling, Punching, Cutting
-
Delivery Time22-30 daysProduct material6063 Aluminum
-
ColorBlack MetalSizeCustomized
-
Surface treatmentAnodized/oxide etc /powder coatedToolingMade by ourself
-
PackingCartonProcessSand casting +CNC Machining
-
CertificationISO9001-2008MachiningAvailable

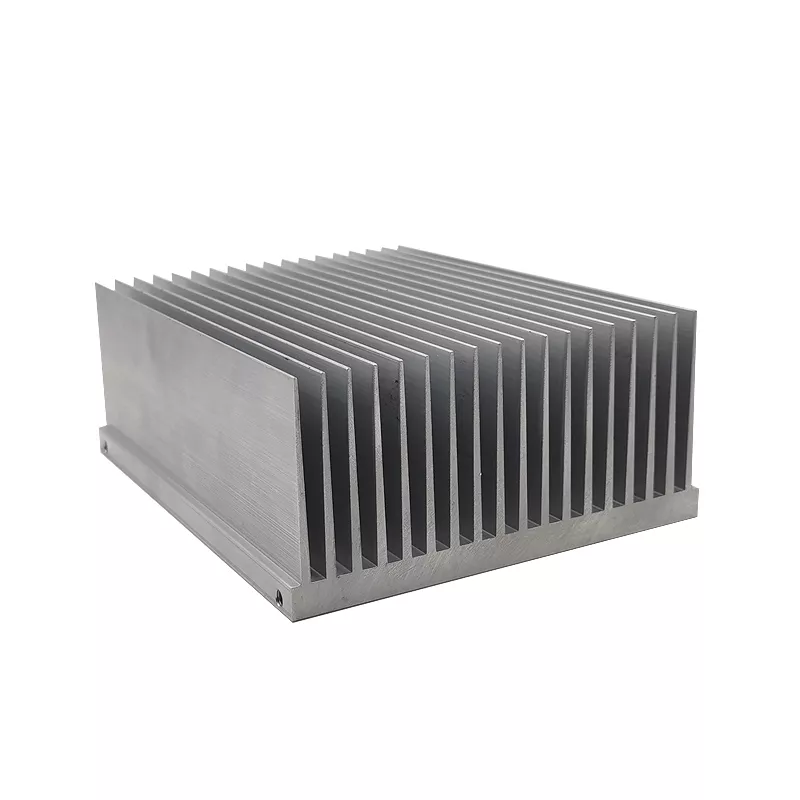

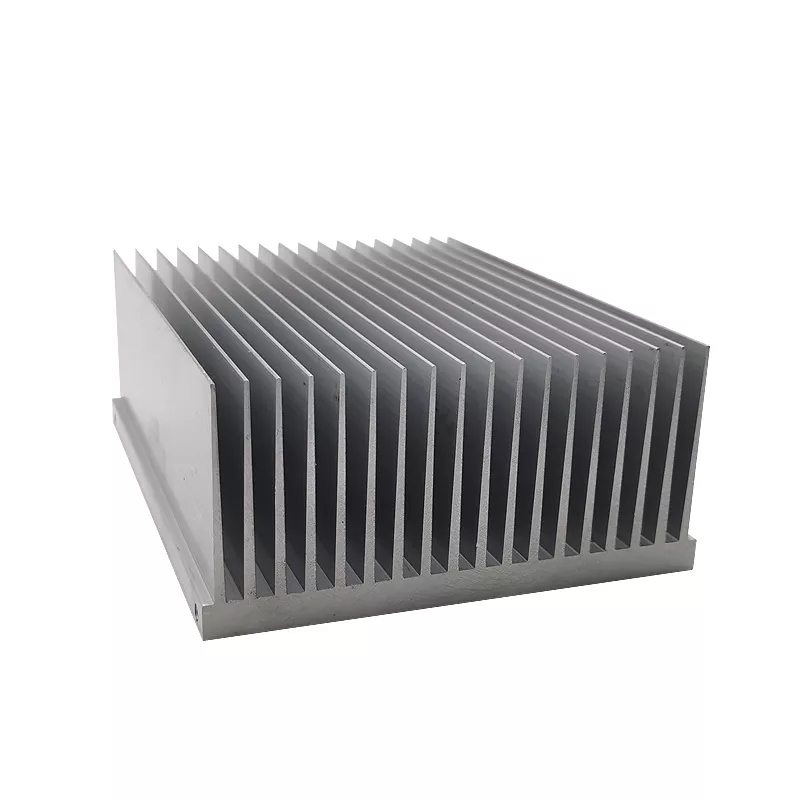

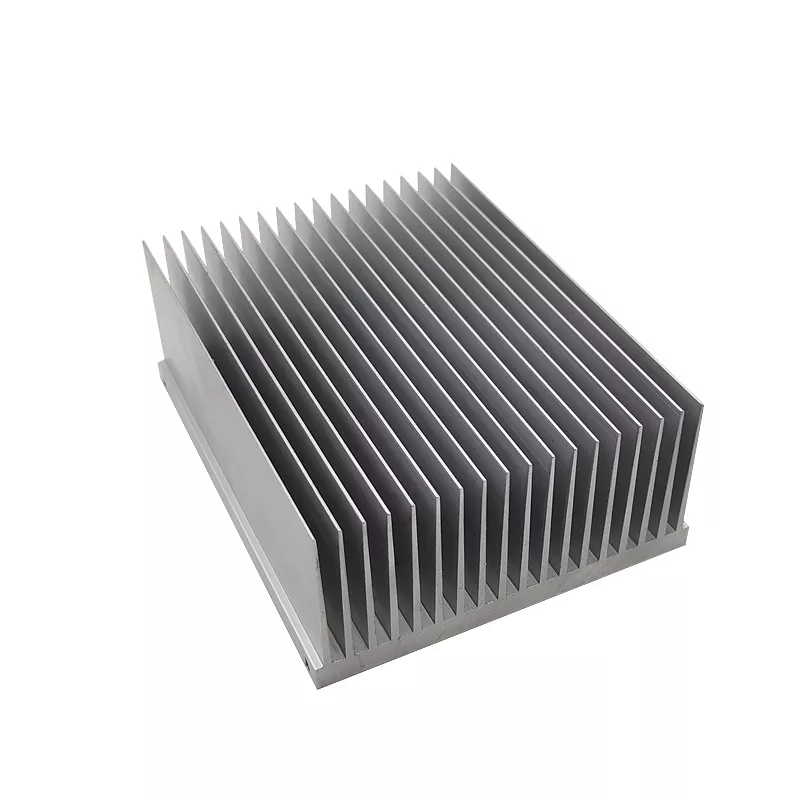

Dense fins beside an extended flat area
The example has a rectangular finned region beside a flat ledge. Define the ledge position, base thickness and fin envelope as one cross-section, with the contact face and mounting references clearly marked.
For a 6061 or 6063 aluminum extrusion enquiry, state the selected alloy and its required temper together, including T5 where specified by the design. Provide cut length, fixing details and any surfaces requiring secondary machining.
Cooling and finishing scope
Include airflow, heat-source geometry and thermal requirements. Specify the finish, quantities and inspection dimensions for the mounting and thermal-contact interfaces, using the current section and part drawings.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
