Custom 6061 6063 Anodized Industrial Aluminum Extrusion Profiles with Curved Edge Channels
Generate QR code
Product description
Project & Delivery Requirements
-
Grade6000 SeriesTemperT3-T8
-
ApplicationHeat SinkShapeAngle
-
Alloy Or NotIs AlloyModel Number1024
-
Tolerance0.02mm, ±0.02Processing ServiceBending, Decoiling, Welding, Punching, Cutting, Machining
-
Delivery Time15 daysProduct nameCustom CNC Machining Aluminum Extrusion Profiles
-
Material6063/ 6061 etcMachiningAvailable
-
Surface treatmentAnodized/oxide etc /powder coatedToolingMade by ourself
-
Surface ColorCustomized Panton Colors

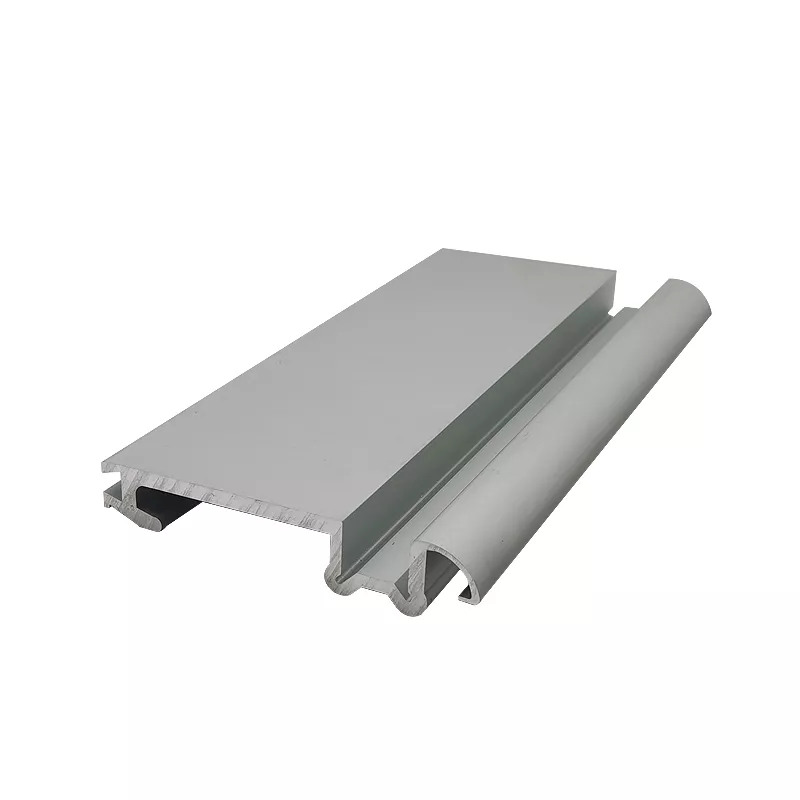

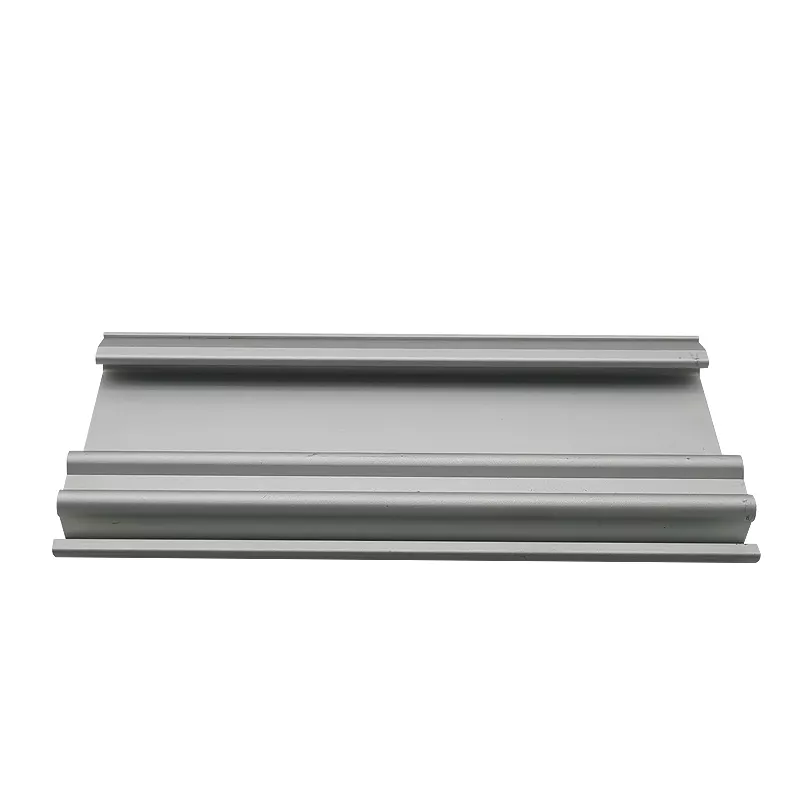

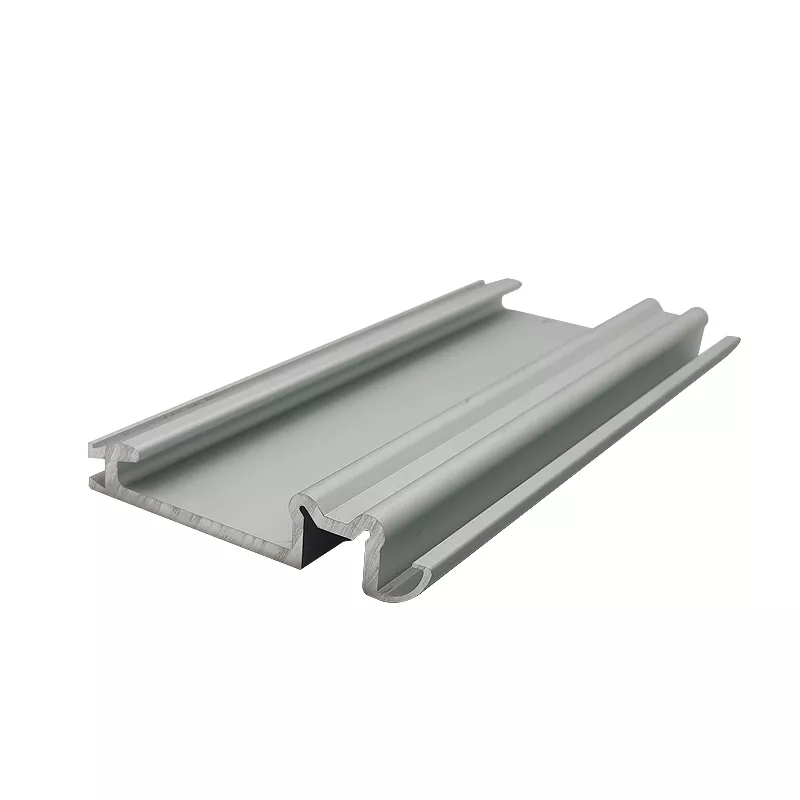

Flat face with curved longitudinal edge features
This aluminum extrusion combines a broad flat upper face with shaped features along both edges, including an open curved channel on one side. The required cross-section should show how these features fit against the neighboring parts in the assembly.
Drawing information to include
- Dimension the flat face, wall thicknesses and the complete edge contours.
- Specify the cut length and any drilled or CNC-machined features.
- Show mating sections and identify the fitted faces that require inspection.
6061 and 6063 aluminum are listed options. State the alloy and temper for the ordered part and the operations needed to produce its finished condition.
Anodized, oxide and powder-coated finishes can be assessed for the requested color. Mark any edge channels or fitted surfaces needing masking. Include quantity and drawing revision so the section, machining and final inspection requirements can be reviewed as one manufacturing enquiry.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
