Custom CNC Machined Aluminum Extrusion Heat Sinks with a Flat Mounting Plate and Deep Parallel Fins
Generate QR code
Product description
Project & Delivery Requirements
-
Grade6000 SeriesTemperT3-T8
-
ApplicationHeat SinkShapeAngle
-
Alloy Or NotIs AlloyModel Number2310
-
Tolerance0.02mm, ±0.02Processing ServiceBending, Decoiling, Welding, Punching, Cutting, Machining
-
Delivery Time15 daysProduct nameCustom CNC Machining Aluminum Extrusion Profiles
-
Material6063/ 6061 etcMachiningAvailable
-
Surface treatmentAnodized/oxide etc /powder coatedToolingMade by ourself
-
Surface ColorCustomized Panton Colors

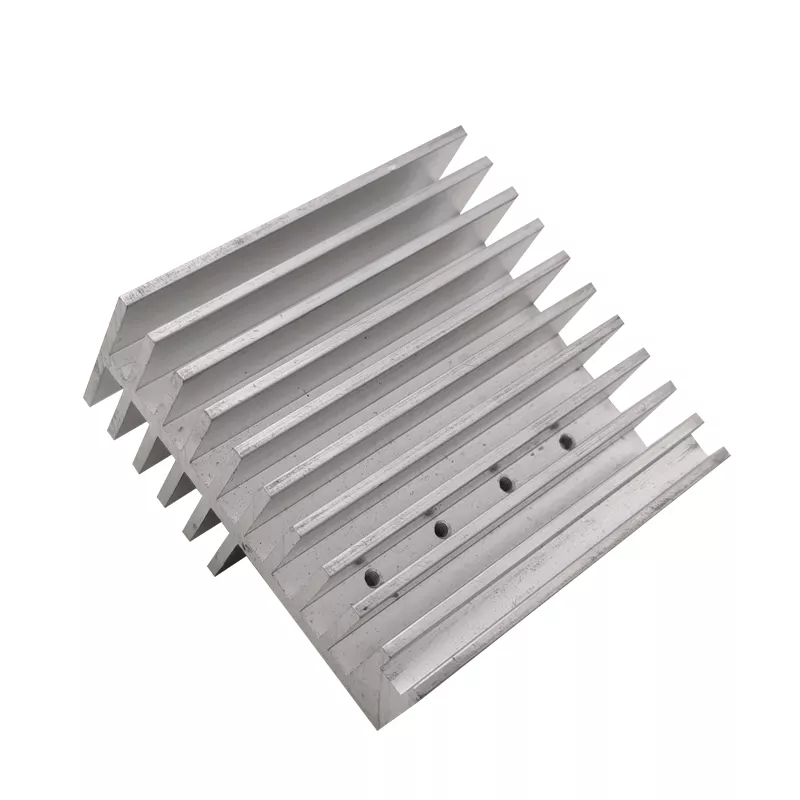

Flat contact plate above a parallel fin bank
The example has a broad flat plate with mounting holes and deep fins beneath it. Identify the component contact area, fixing pattern and required space below the fins, including any side access for fasteners.
Model 2310 covers custom CNC machining aluminum extrusion profiles, with 6063 and 6061 material options. Specify the alloy, temper, base thickness, profile length and machining details. Anodized, oxide and powder-coated finishes with customized colors are listed. Provide quantities and the inspection datums for the contact face and holes. Include heat input and airflow conditions when requesting a review of the proposed cooling geometry.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
