Custom 6063-T5 and 6061-T6 Aluminum Extrusion Profile Enquiries with a Circular Multi Chamber Section and Heat Sink Requirements
Generate QR code
Product description
Project & Delivery Requirements
-
Grade6000 SeriesTemperT3-T8
-
ApplicationHeat SinkShapeT - Profile
-
Alloy Or NotIs AlloyModel NumberS2410
-
Tolerance0.05mmProcessing ServiceBending, Decoiling, Welding, Punching, Cutting, extruding
-
Delivery Time15-21 daysProduct nameCustom Extrusion Aluminum Heat Sink Enclosure
-
ColorPanton ColorSurface treatmentAnodized/oxide etc /powder coated
-
ToolingMade by ourselfCertificationISO9001:2008/ ISO14001:2004/ OHSAS 18001:1999/PPG/TUV
-
KeywordHeatsinkMaterial & TemperAlloy 6063-T5/6061-T6
-
Deep processExtrusion Driling Precison Cutting CNCFabricationExtruded+cutting+machining
-
LengthLongest 6 Meters

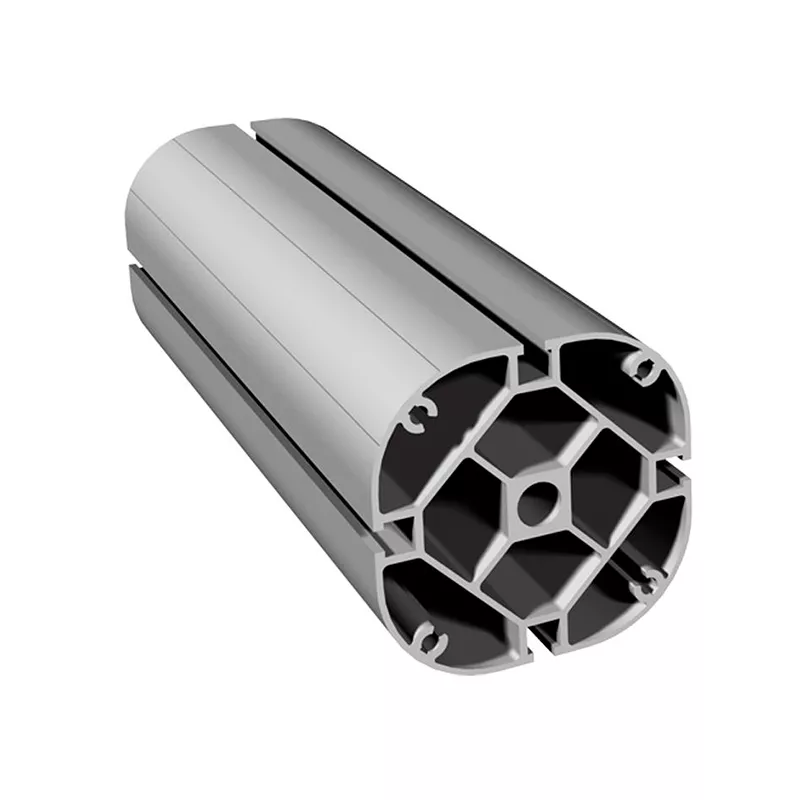

The illustrated profile has a rounded outer contour, internal chambers, a central bore and longitudinal outer slots. Provide the section drawing with wall thicknesses, slot openings and end connections so the mating interfaces can be assessed.
Profile dimensions and application review
Model S2410 lists 6063-T5 and 6061-T6 aluminum, with extrusion, cutting and machining. Select the material and temper, cut length, finish and quantities for your enquiry. Anodized, oxide and powder-coated finishes are listed choices. Where the profile is intended for heat sink use, supply the contact arrangement, heat input and airflow requirements for review; the rounded section alone does not establish thermal performance.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
