Custom 6000 Series Aluminum Extrusion Heat Sink Profiles | Anodized Dense Fin Enquiries
Generate QR code
Product description
Project & Delivery Requirements
-
Grade6000 SeriesTemperT3-T8
-
ApplicationHeat Sink, Industrial EquipmentShapeT - Profile
-
Alloy Or NotIs AlloyModel Number2201
-
Tolerance±1%Processing ServiceBending, Decoiling, Punching, Cutting
-
Delivery Time22-30 daysProduct material6063 Aluminum
-
ColorBlack MetalSizeCustomized
-
Surface treatmentAnodized/oxide etc /powder coatedToolingMade by ourself
-
PackingCartonProcessSand casting +CNC Machining
-
CertificationISO9001-2008MachiningAvailable

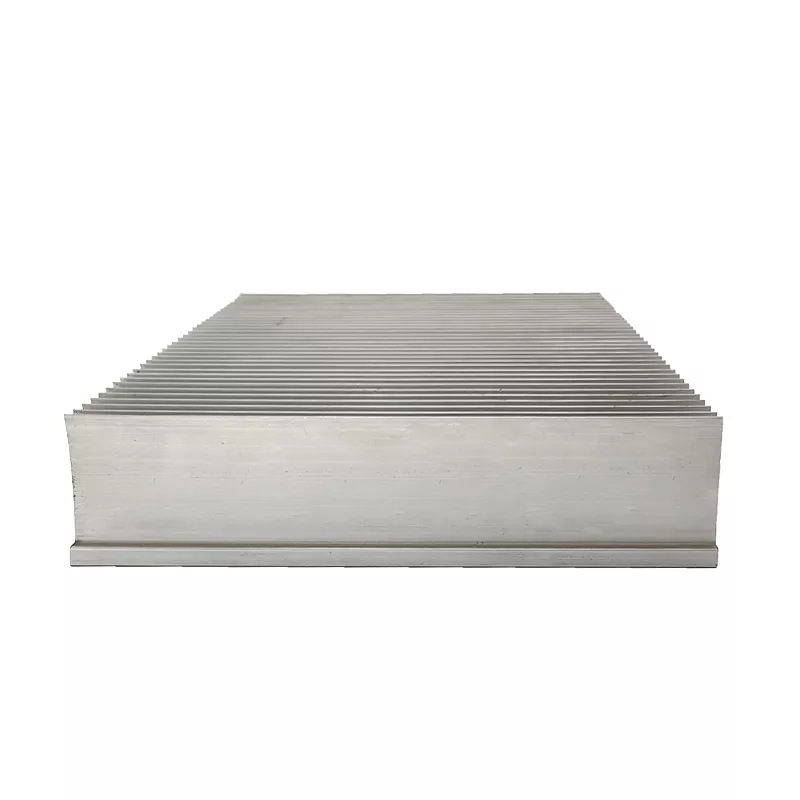

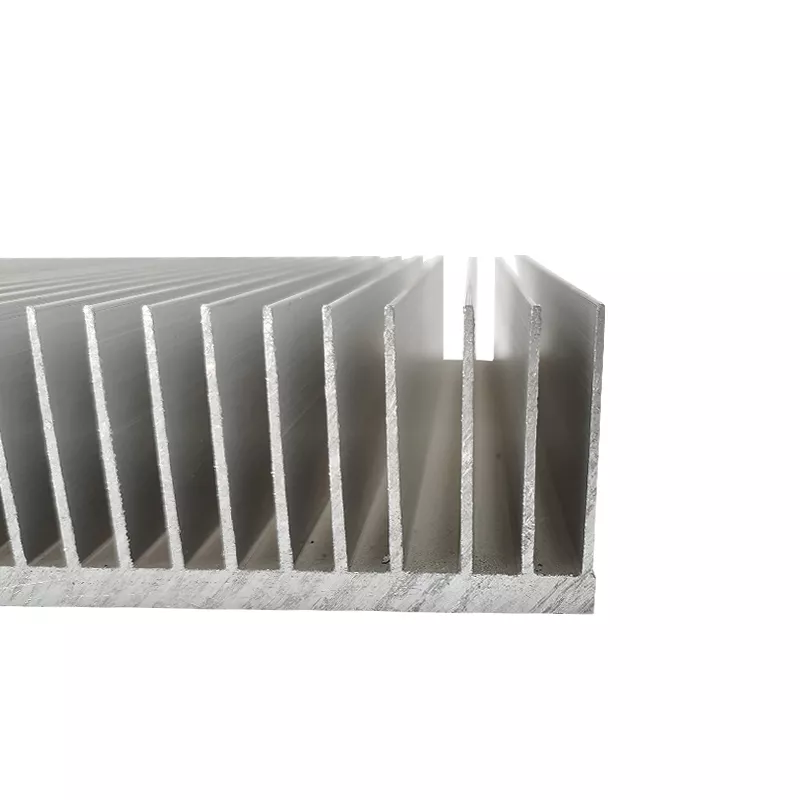

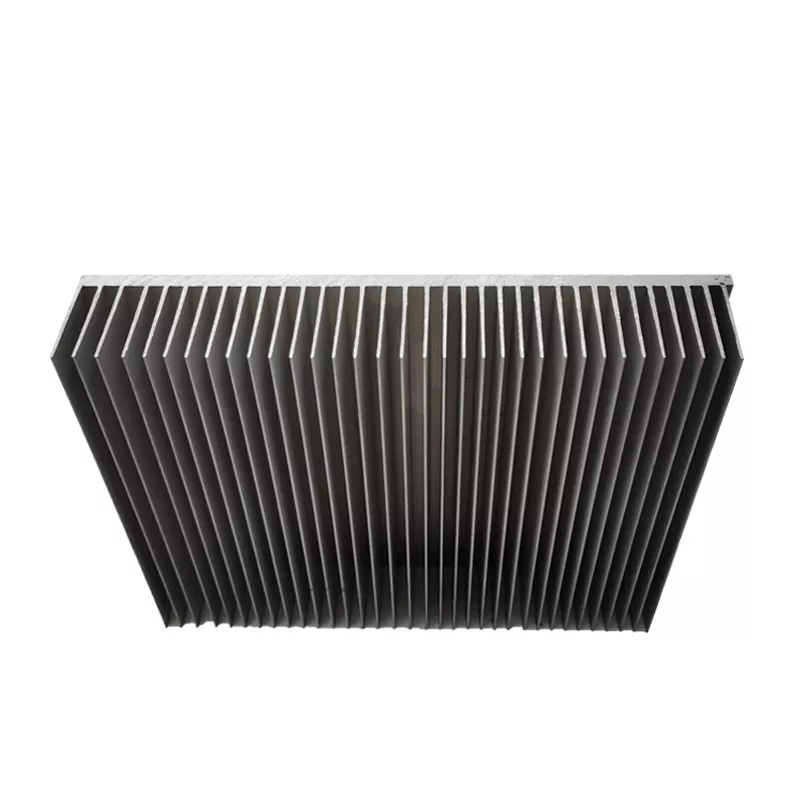

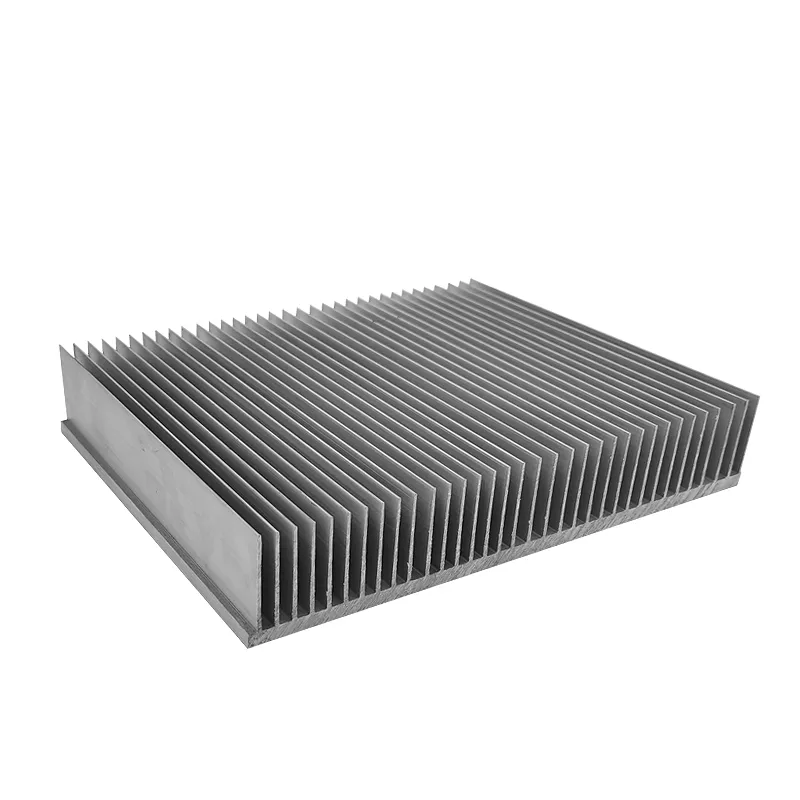

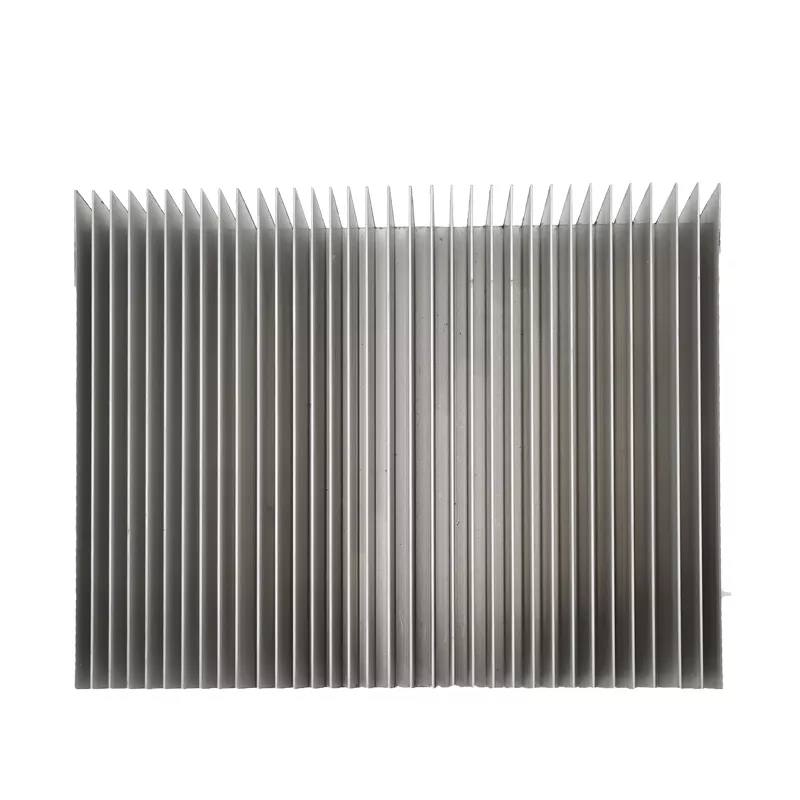

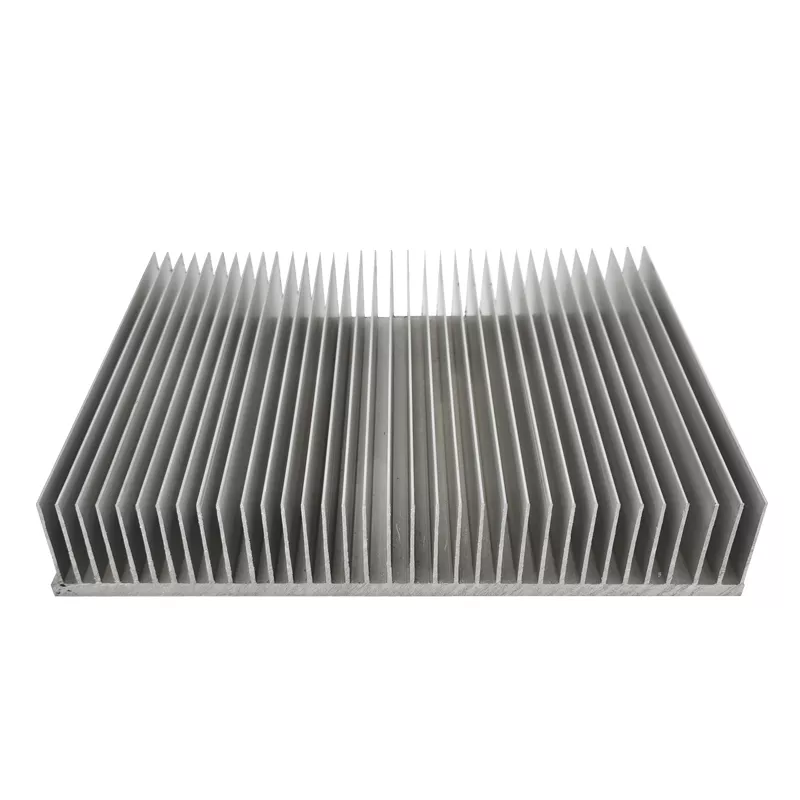

Closely spaced fins on a broad rectangular base
The example has a repeated parallel-fin pattern above a flat lower plate. Define fin height and spacing, base thickness and the region that contacts the heat source or mounting assembly.
For a 6000-series aluminum extrusion enquiry, identify the alloy, temper and section drawing. Set the fin layout and base geometry for the intended installation, then specify any secondary milling or drilling needed at the contact and mounting areas.
Machining, finish and thermal requirements
Provide cut length, quantities and any mounting holes or machined faces. State the anodizing specification and dimensional inspection criteria. Similar finned plates do not independently establish a different profile size, and the photograph does not verify cooling capacity under any installation condition.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
