Custom LED Aluminum Extruded Heat Sink Profiles with CNC Machined Mounting Features
Generate QR code
Product description
Project & Delivery Requirements
-
Grade6000 SeriesTemperT3-T8
-
ApplicationHeat Sink, Industrial EquipmentShapeT - Profile
-
Alloy Or NotIs AlloyModel Number2201
-
Tolerance±1%Processing ServiceBending, Decoiling, Punching, Cutting
-
Delivery Time22-30 daysProduct material6063 Aluminum
-
ColorBlack MetalSizeCustomized
-
Surface treatmentAnodized/oxide etc /powder coatedToolingMade by ourself
-
PackingCartonProcessSand casting +CNC Machining
-
CertificationISO9001-2008MachiningAvailable

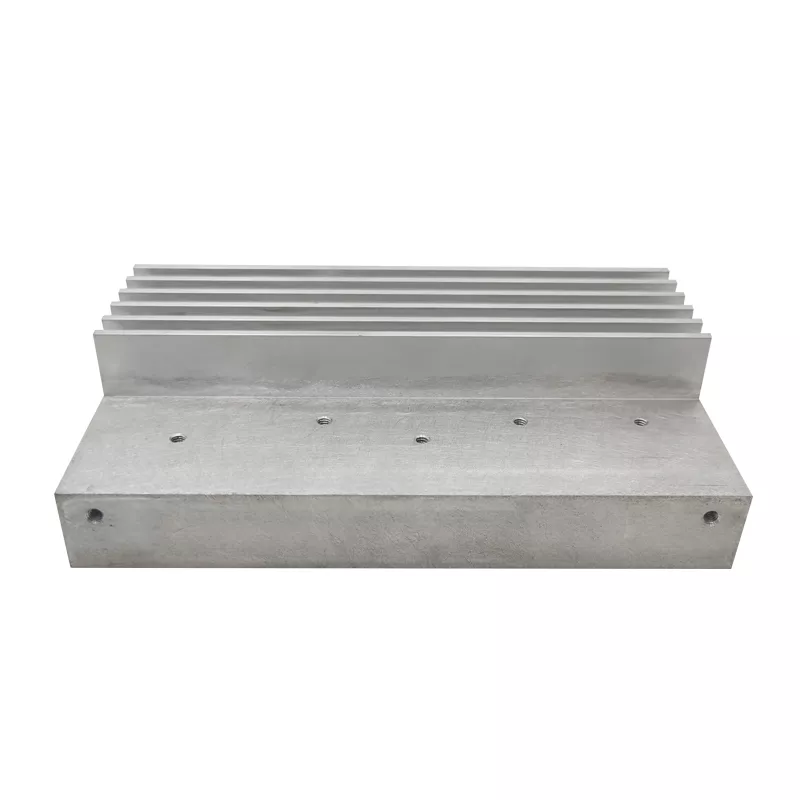

A mounting ledge beside the finned section

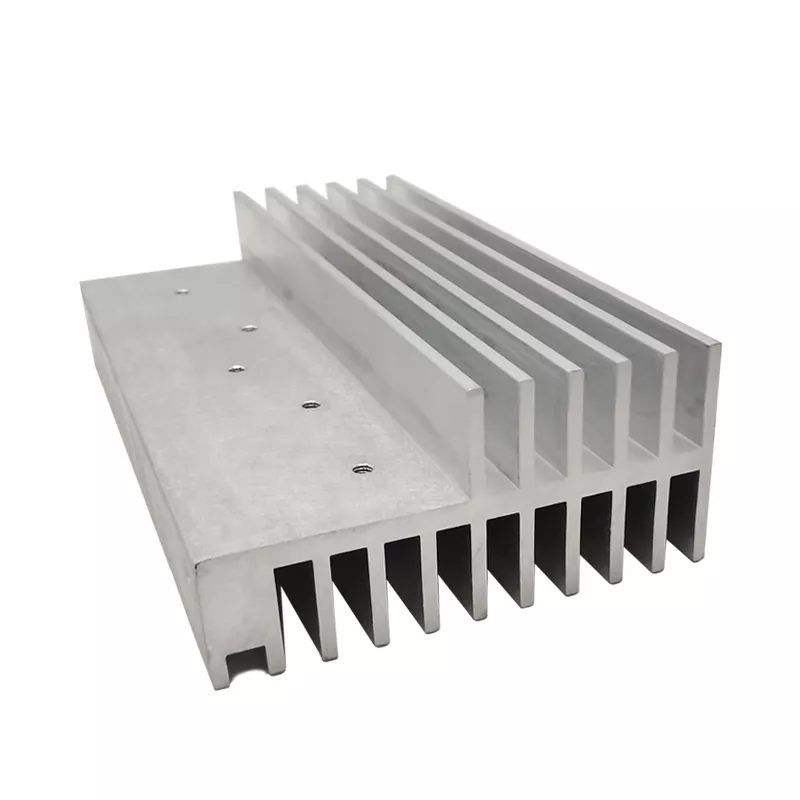

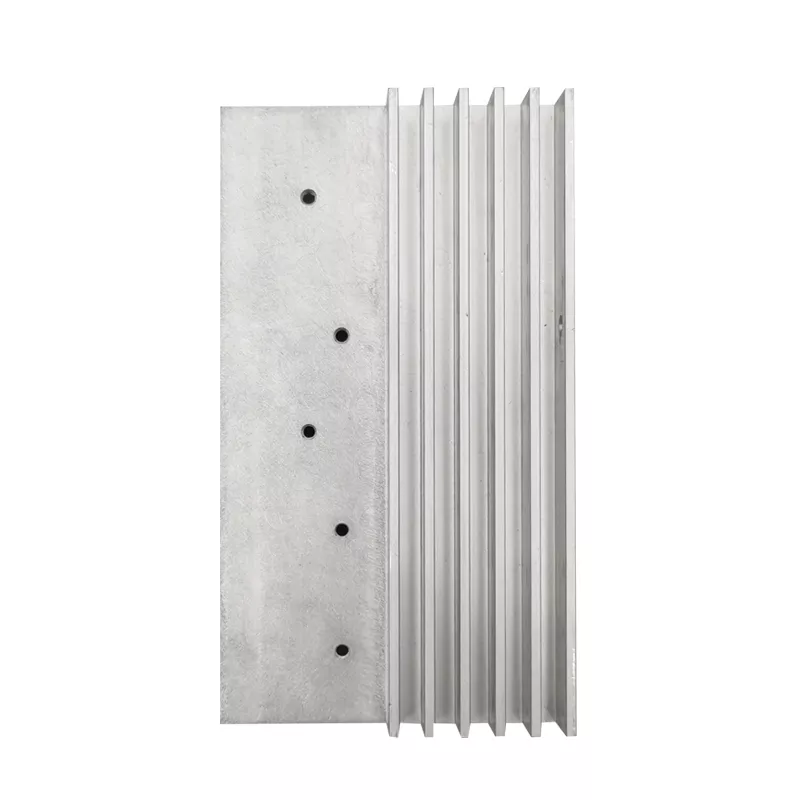

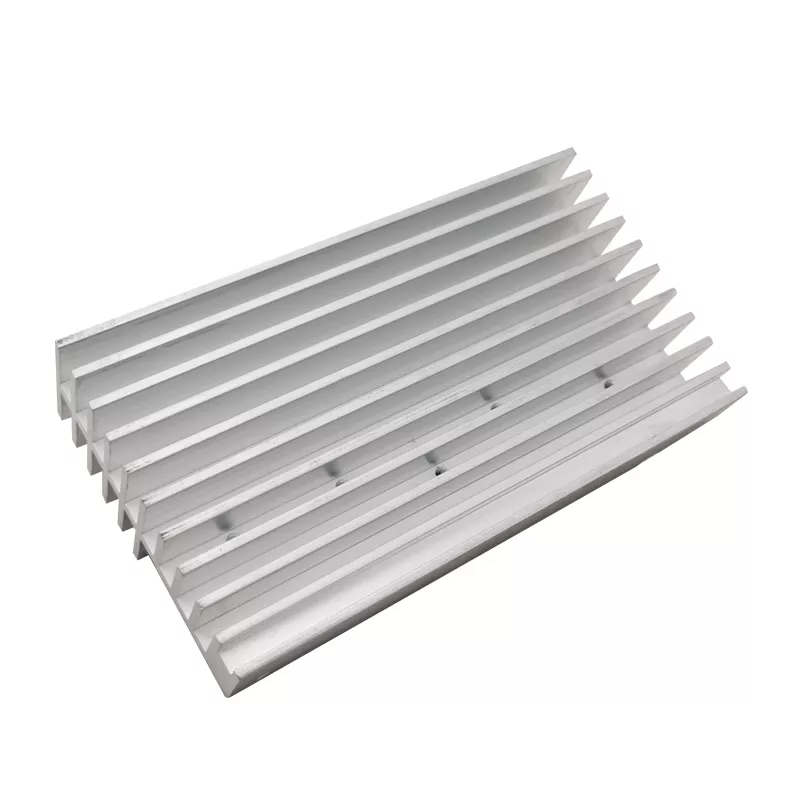

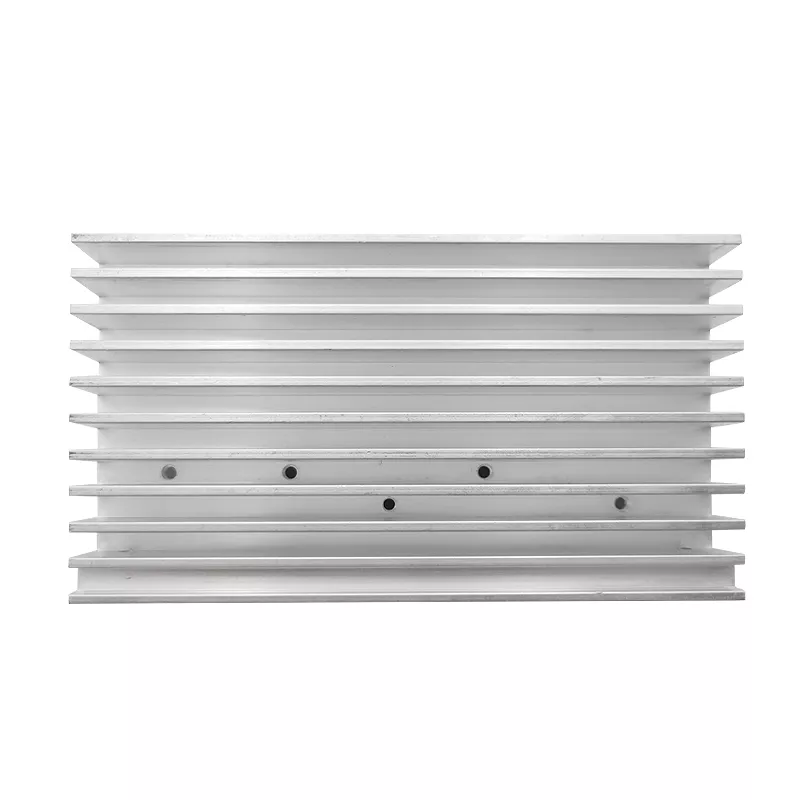

The illustrated profile has a flat ledge with a line of holes, an upper group of fins and additional fins below the base. Show the LED assembly footprint and locate the mounting holes and contact area from the same drawing references.
For an aluminum extrusion and CNC-machining enquiry, specify the alloy and temper, full section dimensions and cut length. Identify any threaded holes, machined faces or edge clearances required for the assembly.
Match the profile to the lighting design
Include the thermal design requirement, installation orientation, available airflow and surrounding space. State the required finish and treatment of the contact face. Add quantities and the drawing revision, with inspection requirements for the mounting pattern and surfaces that determine fit.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
