Custom Anodized Aluminum Extrusion Heat Sink Profiles with Drilled Contact Faces
Generate QR code
Product description
Project & Delivery Requirements
-
Grade6000 SeriesTemperT3-T8
-
ApplicationHeat Sink, Industrial EquipmentShapeT - Profile
-
Alloy Or NotIs AlloyModel NumberDmetal-200329
-
Tolerance±1%Processing ServiceBending, Decoiling, Punching, Cutting
-
Delivery Time22-30 daysProduct material6061 6063 Aluminum
-
ColorBlack MetalSizeCustomized
-
Surface treatmentAnodized/oxide etc /powder coatedToolingMade by ourself
-
PackingCartonProcessSand casting +CNC Machining
-
CertificationISO9001-2008MachiningAvailable
A flat contact face above the finned section

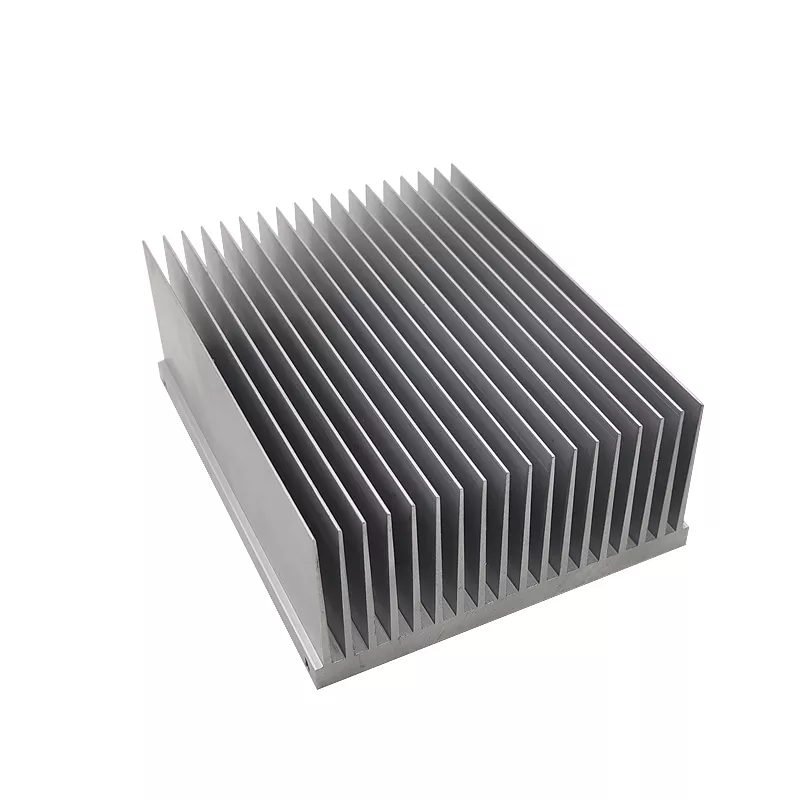

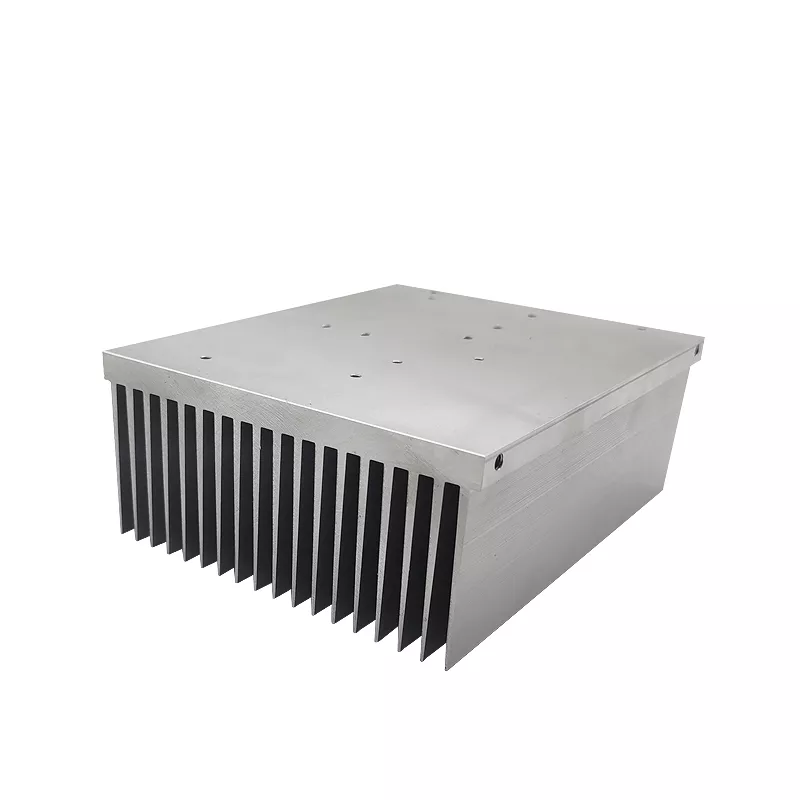

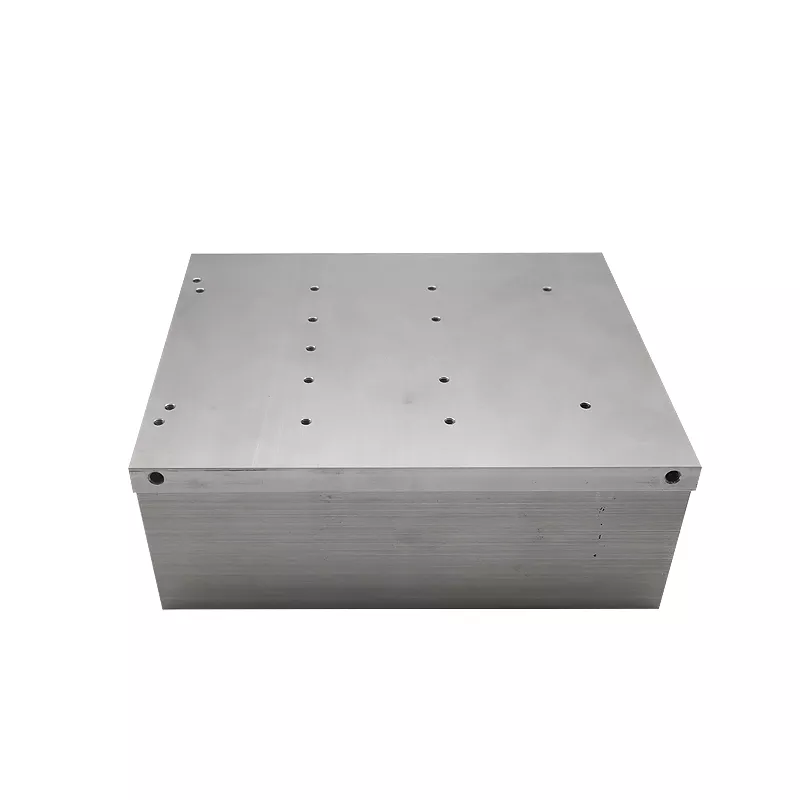

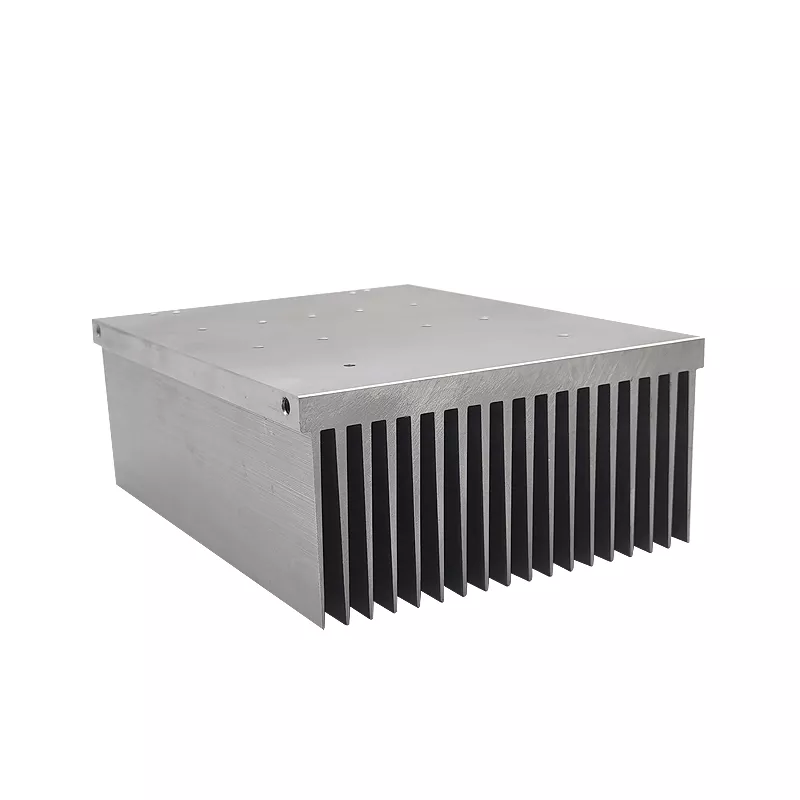

The sample has a broad upper face with fixing holes and a parallel-fin section beneath it. Define the contact area, base thickness and hole positions from the same references used in the assembly.
- Profile and machining
- Specify the alloy, temper, fin section, cut length and any secondary-machined features.
- Finish
- For anodizing, state the treatment requirements and identify contact or threaded areas requiring a particular condition.
Provide the heat-source footprint, mounting method and thermal design requirement with the airflow conditions. Add quantities and a drawing revision, including inspection criteria for the surfaces and holes that control fit.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
