Product description
Project & Delivery Requirements
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Rapid Prototyping, Turning, Wire EDM
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model NumberDmetal-200389Surface treatmentSmooth
-
CertificationISO9001:2008MaterialAluminum Alloy
-
Surface finishAnodized/oxide etc /powder coatedSizeCustomized Size
-
Tolerance±0.1ToolingMade by ourself
-
Drawing Format2D/(PDF/CAD)3D(IGES/STEP)

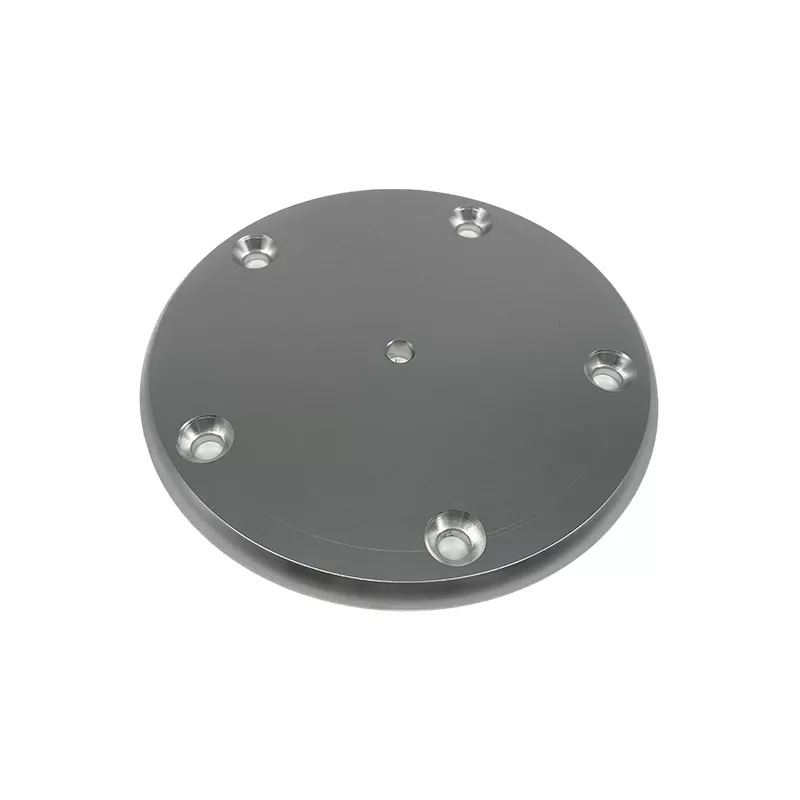

Round mounting face with recessed holes
The example is a circular plate with recessed fixing holes around the outer area and a smaller center hole. Define the diameter, thickness and hole pattern from the center reference. Specify recess depth and the face that seats against the adjoining part.
Model Dmetal-200389 lists aluminum alloy CNC milling, turning and drilling, customized size and anodizing options. Supply the alloy, quantities and PDF, CAD, IGES or STEP drawings. For a marine mounting enquiry, include the mating component and service conditions. Agree the finish and inspection dimensions; the photograph does not establish a standard pad diameter or rated mounting load.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
