Custom Aluminum Extrusion Heat Sink with CNC Machining | Finned Enclosure Profiles
Generate QR code
Product description
Project & Delivery Requirements
-
Grade6000 SeriesTemperT3-T8
-
ApplicationHeat SinkShapeT - Profile
-
Alloy Or NotIs AlloyModel NumberS2308
-
Tolerance0.05mmProcessing ServiceBending, Decoiling, Welding, Punching, Cutting, extruding
-
Delivery Time15 daysProduct nameCustom Extrusion Aluminum Heat Sink Enclosure
-
Product material6063 AluminumColorBlack Metal
-
SizeCustomizedSurface treatmentAnodized/oxide etc /powder coated
-
ToolingMade by ourselfPackingCarton
-
ProcessSand casting +CNC MachiningCertificationISO9001-2008
-
MachiningAvailable

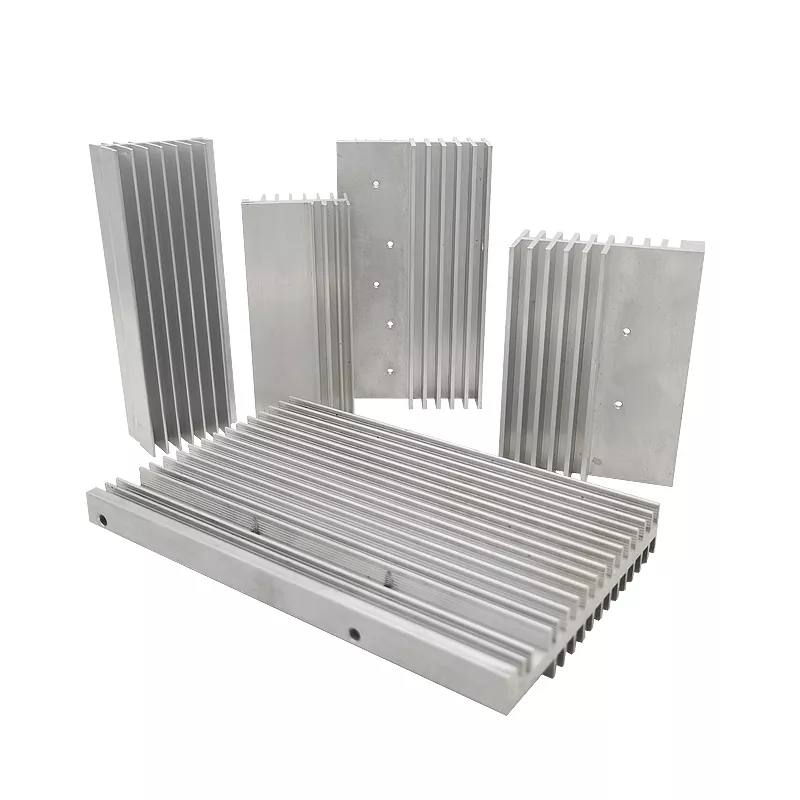

Finned plates with machined fixing features
The examples show flat finned sections in several orientations, including mounting holes and smooth contact regions. Identify the required section and define its base, fin geometry and cut length, with the mounting interfaces on the same drawing.
For an aluminum extrusion enquiry, specify the alloy and temper. The retained sand-casting and CNC process entry does not establish the blank-production route for these examples.
Machining and installation details
Mark the faces, bores and threads needing machining, and include any finishing exclusions at thermal contacts. Provide quantities, finish and dimensional inspection criteria. If the profile forms part of an enclosure, define the mating cover or frame separately and state the operating conditions required for thermal review.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
