Qingdao Custom Precision Aluminum CNC Milling Parts for Ribbed Open Frames and Bored Mounting Faces
Generate QR code
Product description
Project & Delivery Requirements
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Rapid Prototyping, Turning, Wire EDM
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model Number2401Product namecustom cnc machined parts
-
Surface treatmentSmoothCertificationISO9001:2008
-
MaterialAluminum AlloySurface finishAnodized/oxide etc /powder coated
-
SizeCustomized SizeToolingMade by ourself
-
Drawing Format2D/(PDF/CAD)3D(IGES/STEP)MOQ100pcs
-
Materials Avaliablealuminum/ stainsteel steel/ brass/ zinc
Open frame with several machining faces

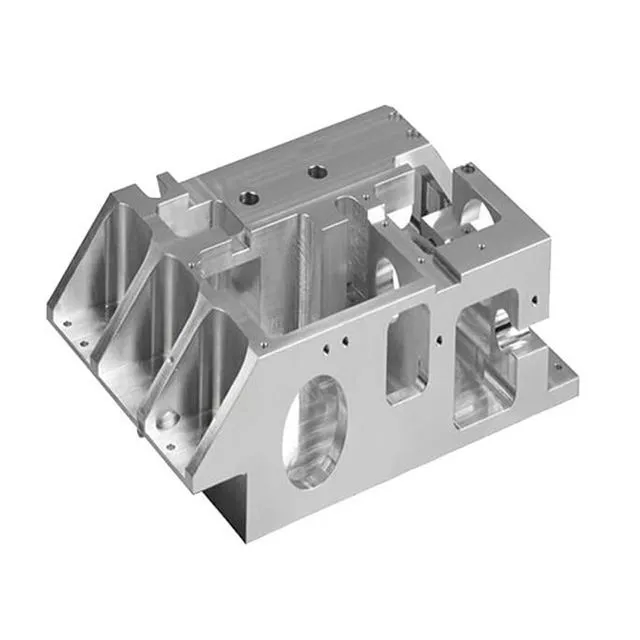

The illustrated frame has a central open cavity, reinforcing ribs, large circular openings in the side faces and smaller fixing holes. Define the relationship between these faces in the drawing so the openings and mounting pattern share clear reference datums.
Model 2401 lists aluminum alloy CNC machining, milling, turning and drilling, with MOQ 100 pieces. Submit the alloy, quantities and PDF, CAD, IGES or STEP drawings. Identify internal access requirements, bore fits and surfaces to be inspected after finishing. Any turned features should be marked separately from the milled frame geometry.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
