Product description
Project & Delivery Requirements
-
Grade6000 SeriesTemperT3-T8
-
ApplicationHeat SinkShapeT - Profile
-
Alloy Or NotIs AlloyModel NumberS2403
-
Tolerance0.05mmProcessing ServiceBending, Decoiling, Welding, Punching, Cutting, extruding
-
Delivery Time15-21 daysProduct nameCustom Extrusion Aluminum Heat Sink Enclosure
-
ColorPanton ColorSurface treatmentAnodized/oxide etc /powder coated
-
ToolingMade by ourselfCertificationISO9001:2008/ ISO14001:2004/ OHSAS 18001:1999/PPG/TUV
-
KeywordHeatsinkMaterial & TemperAlloy 6063-T5/6061-T6
-
Deep processExtrusion Driling Precison Cutting CNCFabricationExtruded+cutting+machining
-
LengthLongest 6 Meters
Select the heat sink layout for the assembly

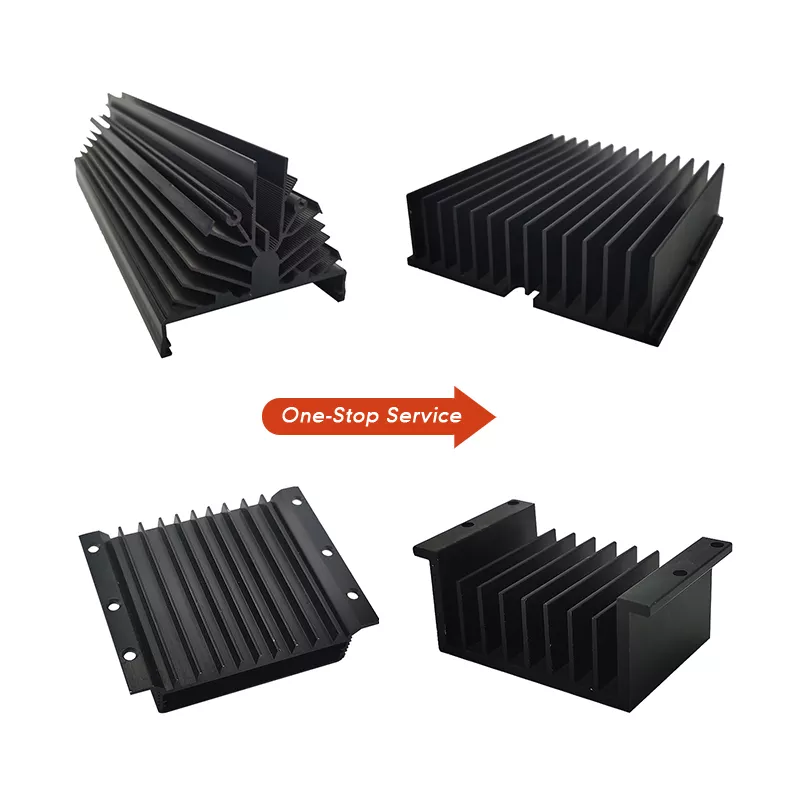

The pictured range includes finned plates, flanged sections, circular openings and components with machined contact areas. Identify the example closest to your drawing and define which features are required; the range is not a single supplied assembly.
Model S2403 lists extrusion, cutting and CNC machining with 6063-T5 or 6061-T6 aluminum. Specify the chosen alloy and temper, overall envelope, contact face, fixing holes and quantities. Select anodized, oxide or powder-coated finish requirements for the part. Provide the heat load, airflow and mounting conditions so the proposed fin arrangement and machining details can be reviewed for the application.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
