Product description
Project & Delivery Requirements
-
Model NumberS2405Plastic Modling TypeInjection
-
Processing ServiceMoulding, Cutting, PaintingCertificationISO9001 CE
-
MaterialPA66/PP/ABS /PC, EtcFeatureHigh Precision Injection Parts
-
Product namePlastic Injection PartsDrawing Format2D/(PDF/CAD)3D(IGES/STEP)
-
Surface treatmentPolish. Etched. Texture.electroplating.paintingColorCustomer's Request
-
ProcessInjection Mould Plastic PartApplicationIndustrial Plastic Parts
-
KeywordPlastic injection

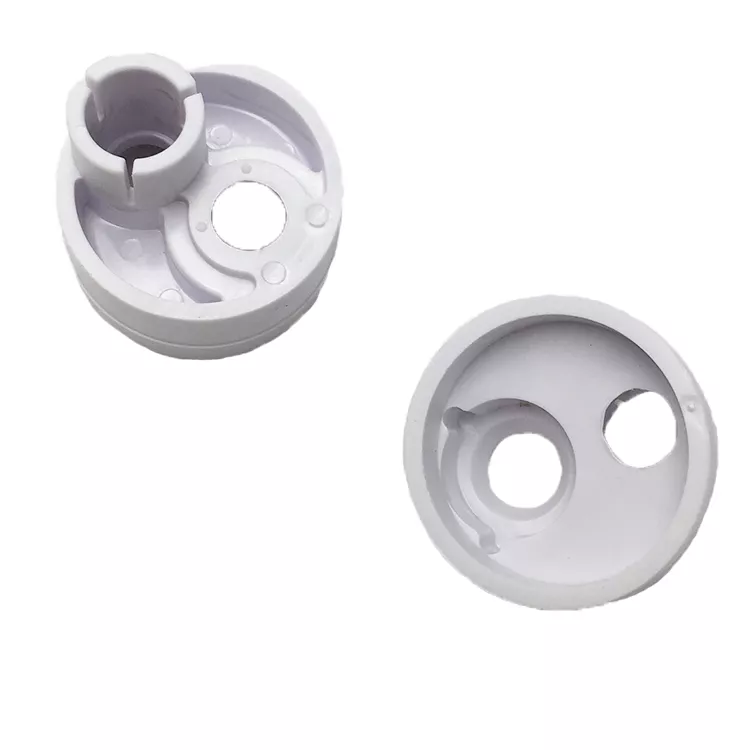

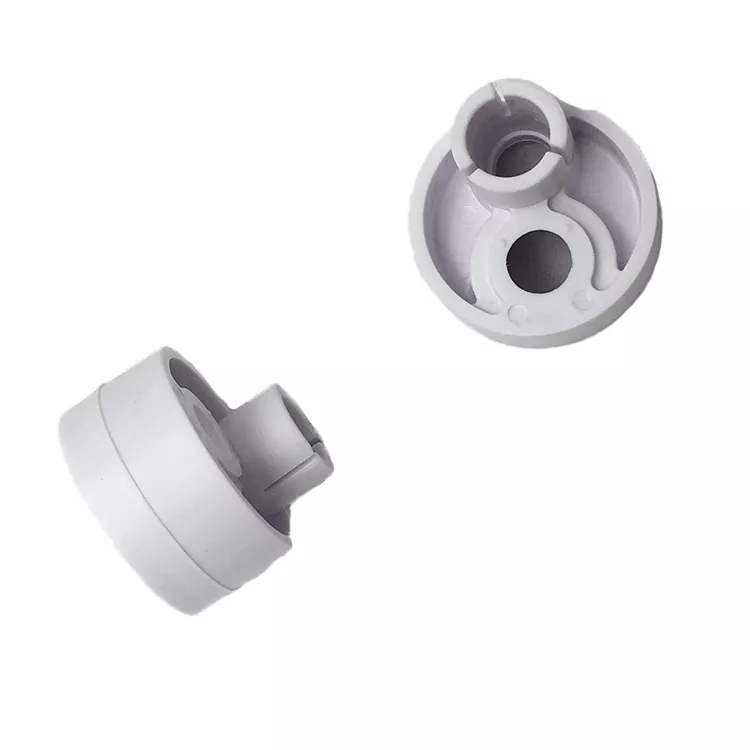

A raised split boss within a circular housing
The two views show a round recessed body with a raised cylindrical boss, a split in that boss and a separate offset opening. Define the relationship between the boss axis, outer rim and second opening rather than dimensioning each feature independently.
Assembly requirements at the boss and rim
Specify the mating component, insertion or fastening arrangement and finished dimensions. For an ABS molding enquiry, identify the resin grade and the required edge conditions at the split and openings.
Include quantities, color, surface texture and drawing revision. Mark the dimensions that need inspection at the boss, recess and rim. The photograph does not establish clamping force or a separate size relative to similar round components elsewhere in the range.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
