Custom Aluminum Extrusion LED Profile Enquiries with CNC Machined Threaded Mounting Blocks and Locating Channels
Generate QR code
Product description
Project & Delivery Requirements
-
Grade6000 SeriesTemperT3-T8
-
ApplicationHeat SinkShapeT - Profile
-
Alloy Or NotIs AlloyModel NumberS DM240311
-
Tolerance0.05mmProcessing ServiceBending, Decoiling, Welding, Punching, Cutting, extruding
-
Delivery Time15-21 daysProduct nameCustom Extrusion Aluminum Heat Sink Enclosure
-
ColorPanton ColorSurface treatmentAnodized/oxide etc /powder coated
-
ToolingMade by ourselfCertificationISO9001:2008/ ISO14001:2004/ OHSAS 18001:1999/PPG/TUV
-
KeywordHeatsinkMaterial & TemperAlloy 6063-T5/6061-T6
-
Deep processExtrusion Driling Precison Cutting CNCFabricationExtruded+cutting+machining
-
LengthLongest 6 Meters

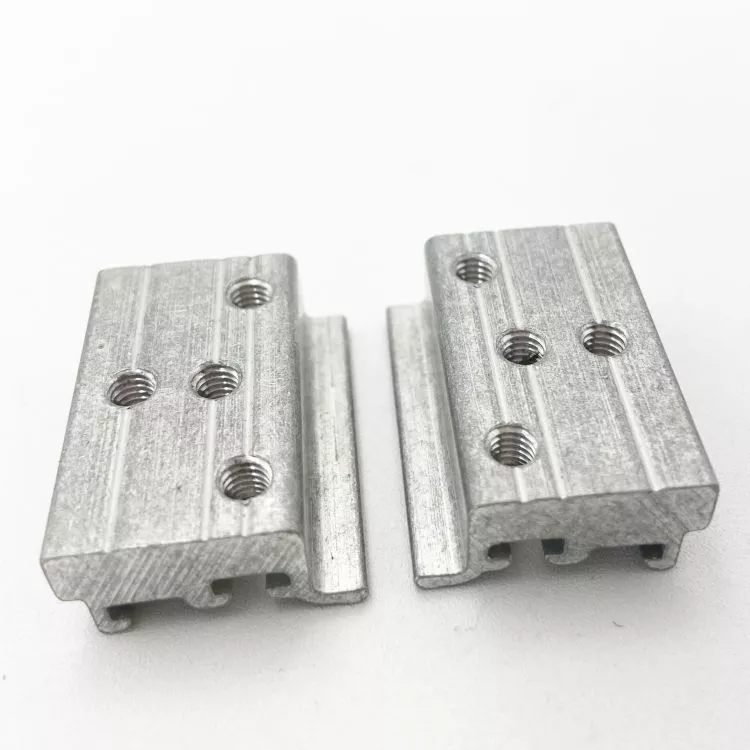

Two short profile blocks are shown, each with four threaded holes and longitudinal locating channels. Define the thread size and depth, hole centers and the mating rail or section in the drawing so the block can be positioned within the assembly.
Mounting details for a profile enquiry
Model S DM240311 lists extrusion, cutting and machining in 6063-T5 or 6061-T6 aluminum, with anodized, oxide and powder-coated finish options. Specify the alloy, temper, cut length and quantities. For an LED profile project, identify the mounting interface and selected block's role separately from lighting or thermal performance. Include the dimensions used to inspect channel and thread alignment.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
