Custom Anodized Industrial Aluminum Extrusion Profiles with Triangular Internal Webs
-
Grade6000 SeriesTemperT3-T8
-
ApplicationHeat SinkShapeT - Profile
-
Alloy Or NotIs AlloyModel NumberS2404
-
Tolerance0.05mmProcessing ServiceBending, Decoiling, Welding, Punching, Cutting, extruding
-
Delivery Time15-21 daysProduct nameCustom Extrusion Aluminum Heat Sink Enclosure
-
ColorPanton ColorSurface treatmentAnodized/oxide etc /powder coated
-
ToolingMade by ourselfCertificationISO9001:2008/ ISO14001:2004/ OHSAS 18001:1999/PPG/TUV
-
KeywordHeatsinkMaterial & TemperAlloy 6063-T5/6061-T6
-
Deep processExtrusion Driling Precison Cutting CNCFabricationExtruded+cutting+machining
-
LengthLongest 6 Meters

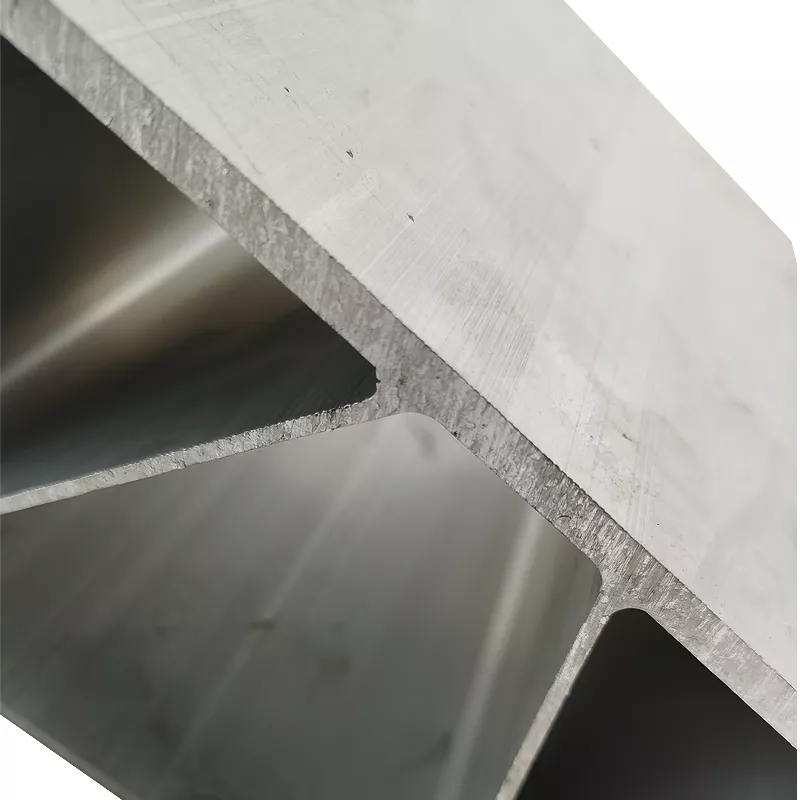

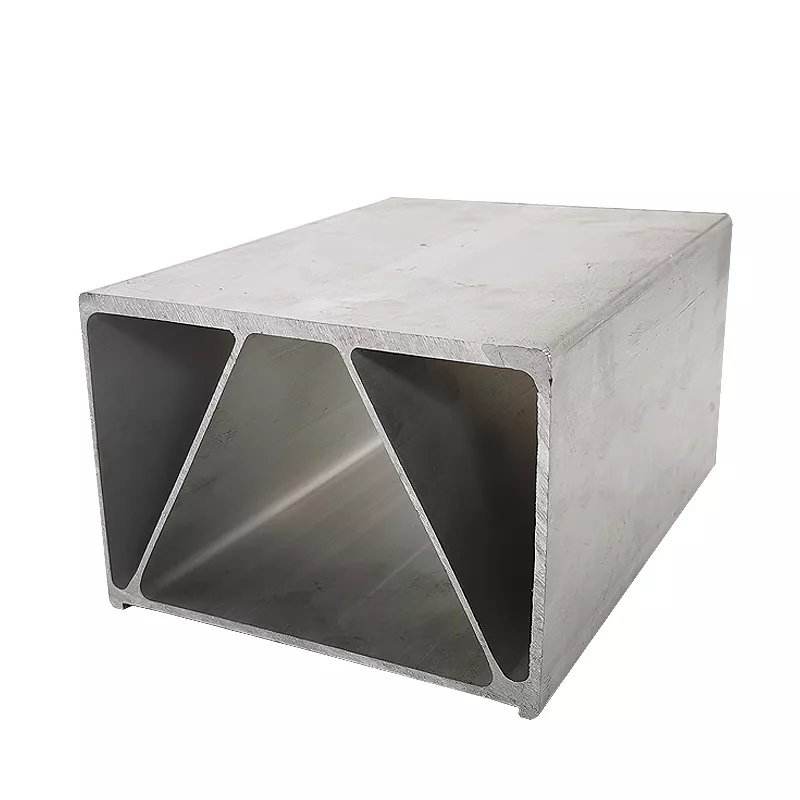

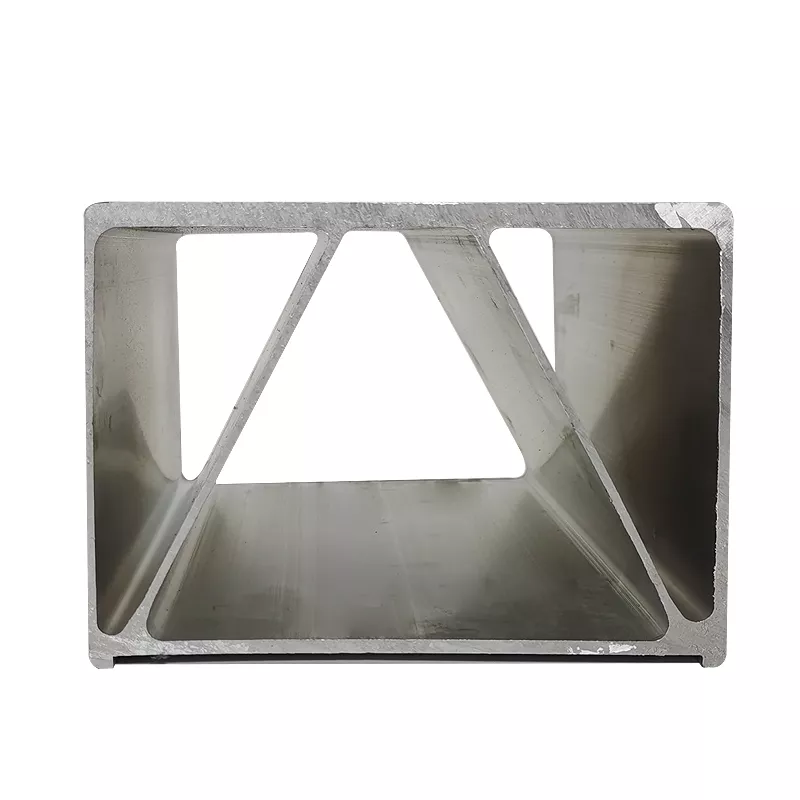

Rectangular hollow section with diagonal internal webs
This industrial aluminum profile has a rectangular outer envelope and diagonal internal walls forming a broad middle opening and narrower side cavities. Its custom extrusion drawing should define the internal partitions and outer walls as one complete section.
Dimension the overall width and height, wall thicknesses, internal openings and required cut length. Include any end machining or attachment features, with references that relate the internal geometry to the fitted outer faces.
Material and finished condition
6063-T5 and 6061-T6 are the listed alloy and temper options. State the required combination and identify the cutting, drilling or CNC operations needed to supply the finished component. Provide mating-part information wherever it determines clearance or alignment.
Anodized, oxide and powder-coated surface conditions can be considered for the requested color. Mark internal or outer surfaces that need masking or dimensional checks after finishing. Send quantity, drawing revision and inspection requirements so the quotation defines the profile geometry and supplied condition consistently.
