Custom Black Anodized Industrial Aluminum Extrusion Profiles with Multiple Cells and CNC Machining
-
Grade6000 SeriesTemperT3-T8
-
ApplicationHeat SinkShapeT - Profile
-
Alloy Or NotIs AlloyModel NumberS 240417
-
Tolerance0.05mmProcessing ServiceBending, Decoiling, Welding, Punching, Cutting, extruding
-
Delivery Time15-21 daysProduct nameCustom Extrusion Aluminum Heat Sink Enclosure
-
ColorPanton ColorSurface treatmentAnodized/oxide etc /powder coated
-
ToolingMade by ourselfCertificationISO9001:2008/ ISO14001:2004/ OHSAS 18001:1999/PPG/TUV
-
KeywordHeatsinkMaterial & TemperAlloy 6063-T5/6061-T6
-
Deep processExtrusion Driling Precison Cutting CNCFabricationExtruded+cutting+machining
-
LengthLongest 6 Meters

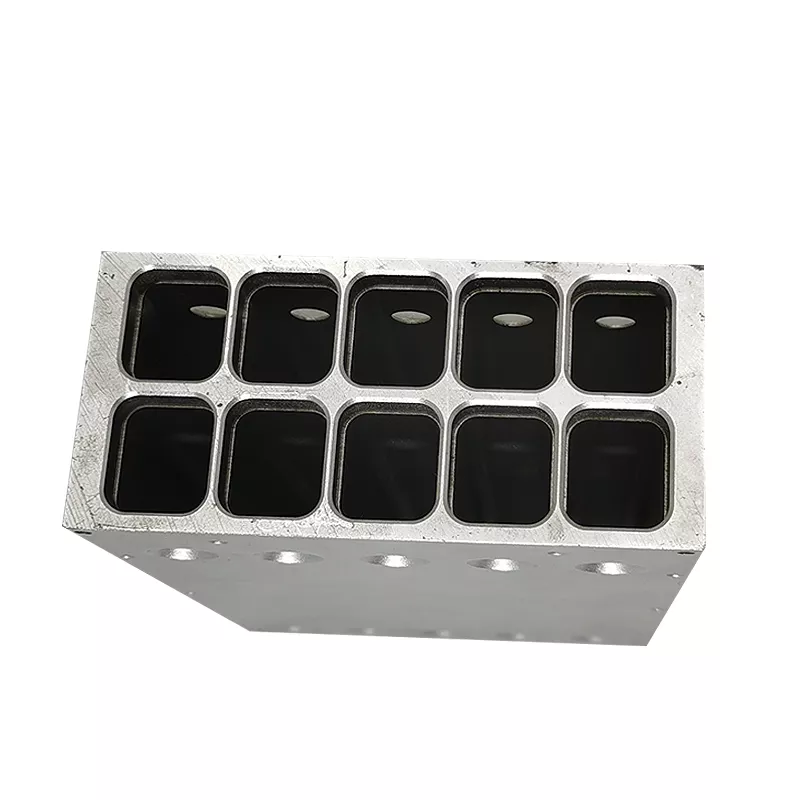

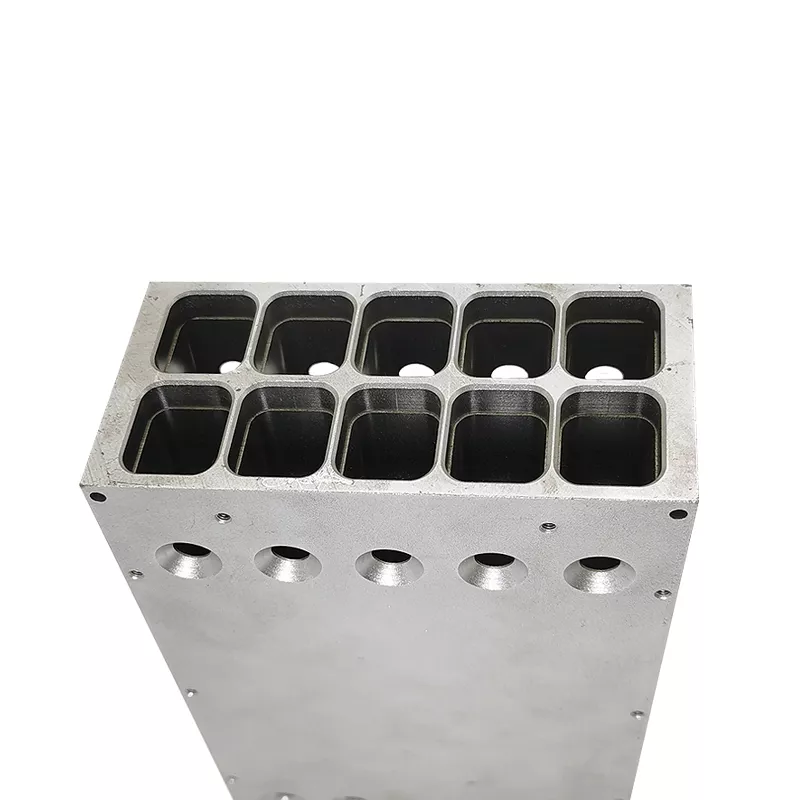

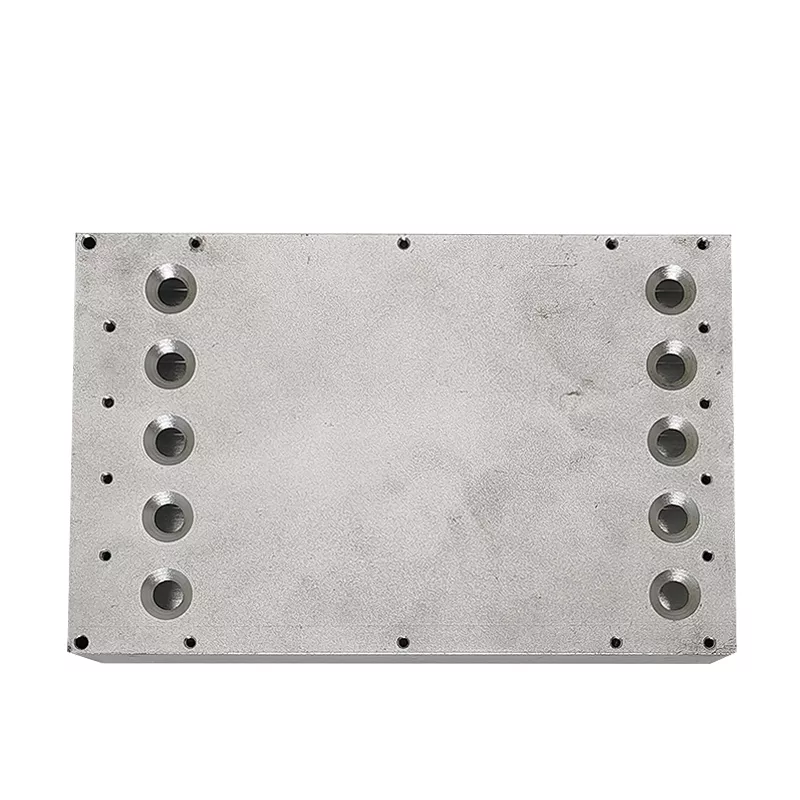

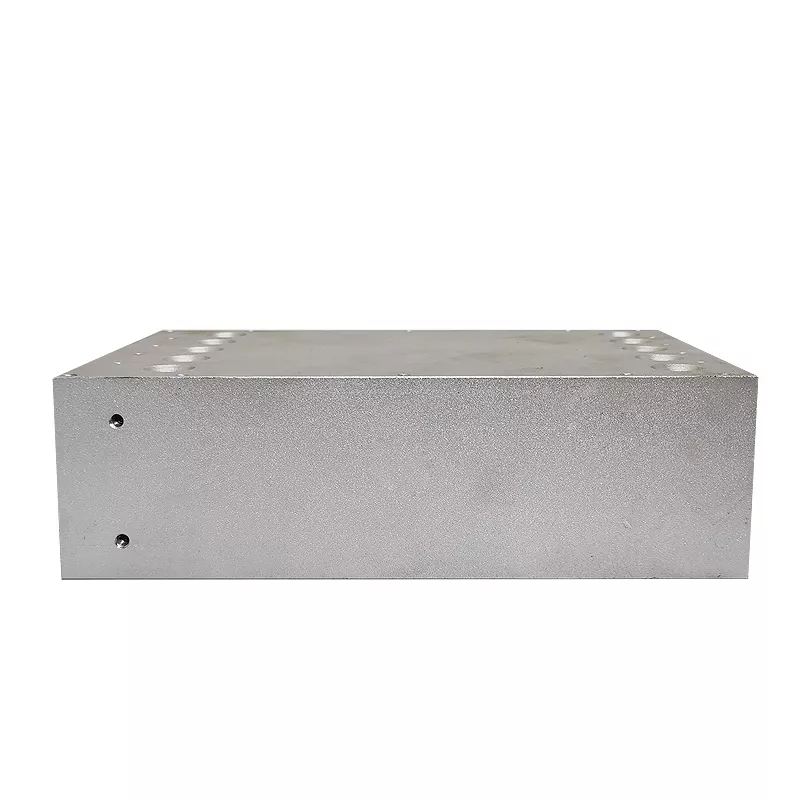

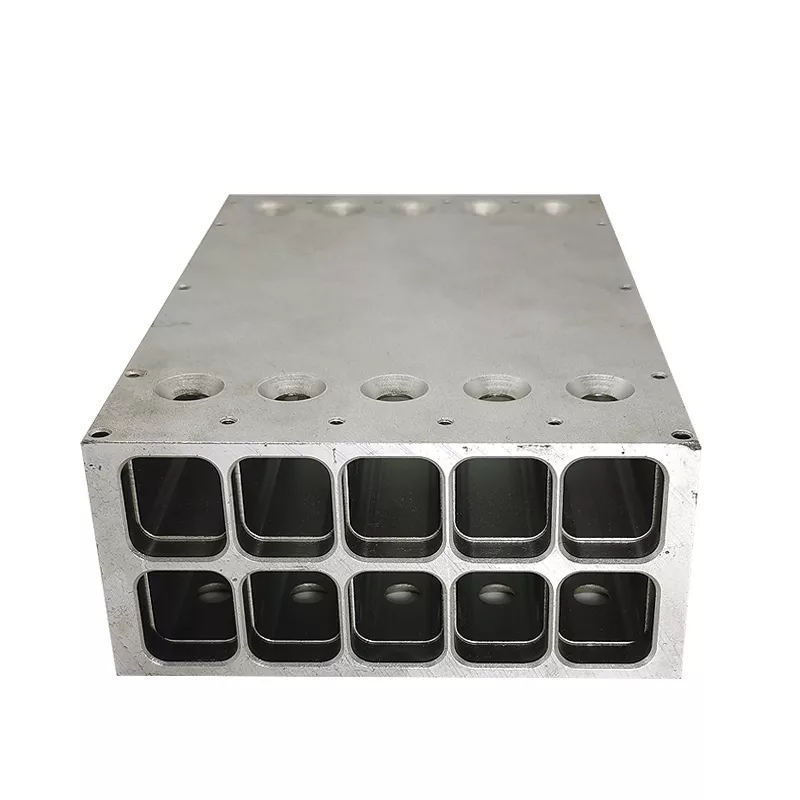

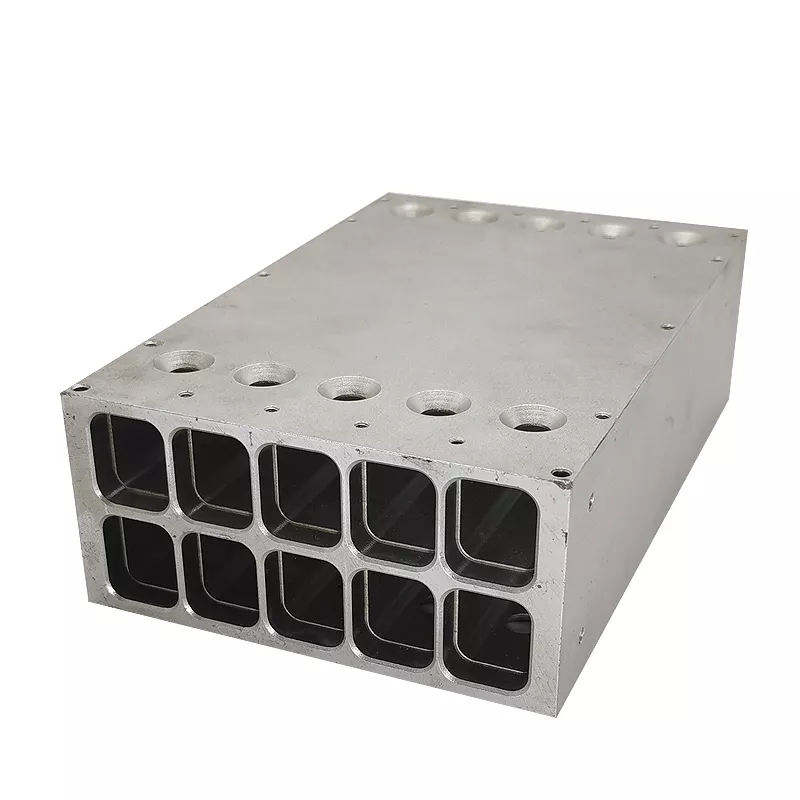

The pictured aluminum extrusion has two rows of longitudinal internal cells, with holes machined into its broad outer faces. The internal passages and outer mounting pattern should be specified together for the custom industrial profile.
Coordinate cavities and mounting features
Provide the overall section, wall and partition dimensions, cell openings and finished length. Locate holes and any counterbores from clearly marked references. Show adjoining components where they determine clearance or fitted position.
The listed material and temper choices are 6063-T5 and 6061-T6. Identify the required option, extrusion section and secondary CNC operations on the part drawing. Inspection requirements should address the selected outer faces and internal features relevant to assembly.
Surface and supply specification
Black anodizing, other anodized or oxide finishes and powder coating can be reviewed for the chosen material and color. Mark cavities, fitted faces or holes requiring masking or post-finish checks. Include quantities and drawing revision for a quotation covering the profile, machining and finished supplied condition.
