Custom Injection Molded Plastic Enclosure Components with an Open Ribbed Channel and Mounting Features
Generate QR code
Product description
Project & Delivery Requirements
-
Model NumberS240408Plastic Modling TypeInjection
-
Processing ServiceMoulding, Cutting, PaintingCertificationISO9001 CE
-
MaterialPA66/PP/ABS /PC, EtcFeatureHigh Precision Injection Parts
-
Product namePlastic Injection PartsDrawing Format2D/(PDF/CAD)3D(IGES/STEP)
-
Surface treatmentPolish. Etched. Texture.electroplating.paintingColorCustomer's Request
-
ProcessInjection Mould Plastic PartApplicationIndustrial Plastic Parts
-
KeywordPlastic injection

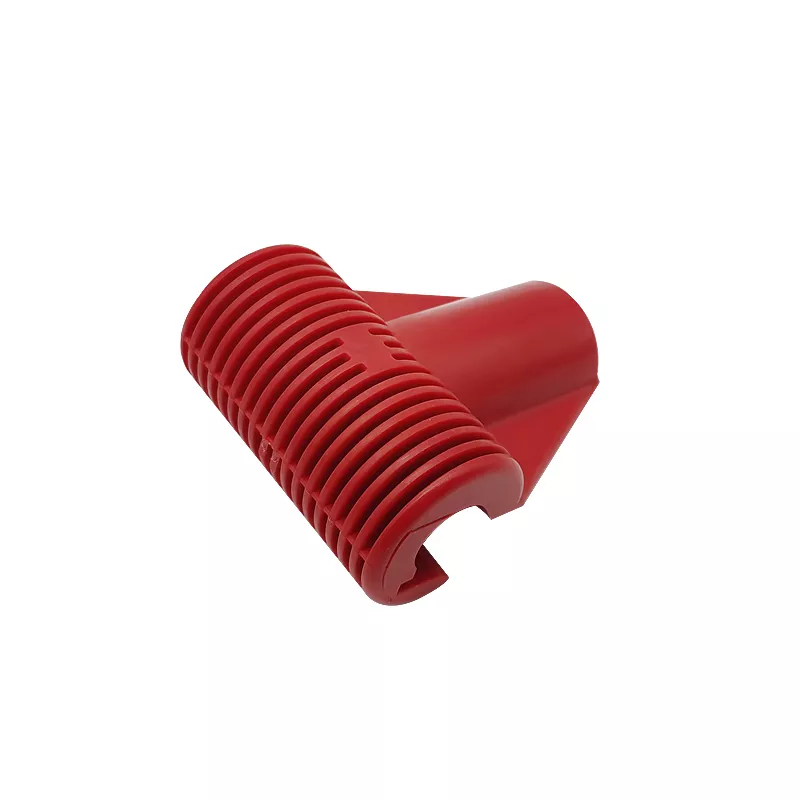

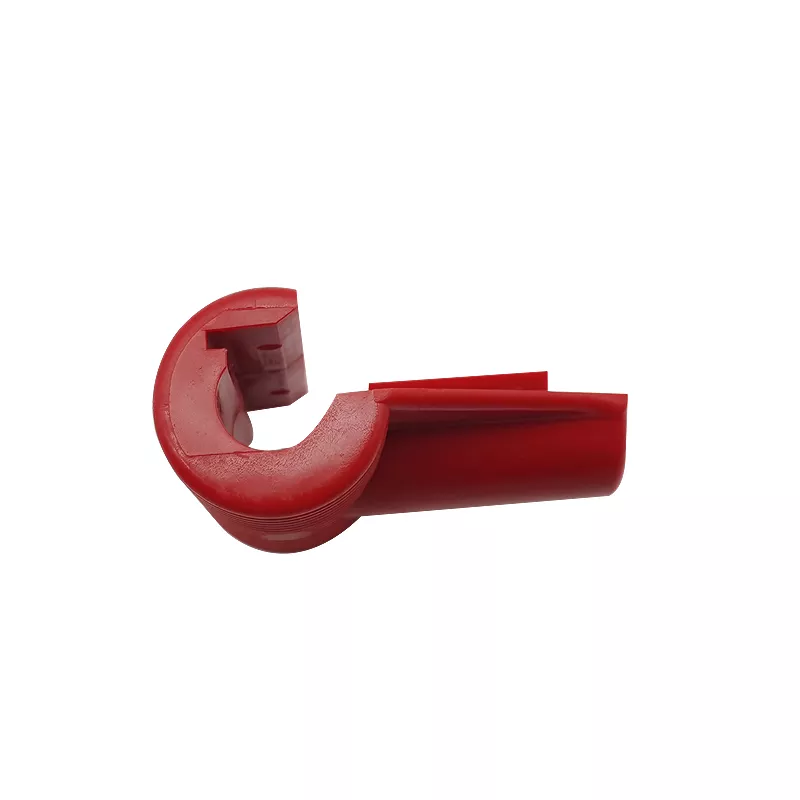

The S240408 example is an open component with a curved ribbed section, mounting holes and projecting guide-like features inside. The drawing should define the channel section, mounting-face positions and clearances against adjoining parts.
Enclosure component and mold requirements
Specify whether the quotation covers this component, companion pieces or a complete assembly. PA66, PP, ABS and PC are listed resin choices, with customer-defined color and finish requirements. Molding, cutting and painting services are listed, and drawings may be supplied in PDF, CAD, IGES or STEP format. Include the part quantity, surface requirements and dimensions controlling fit; no sealed-enclosure or waterproof rating is specified.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
