Custom Plastic Injection Mould Design Parts with Twin Rectangular Openings in PA66 PP ABS or PC
-
Model NumberS2310Plastic Modling TypeInjection
-
Processing ServiceMoulding, Cutting, PaintingColorCustomized
-
SizeCustomized SizeMaterialPA66/PP/ABS /PC, Etc
-
CertificationROHSFeatureHigh Precision
-
ShapeCustomized ShapesPackingStandard Carton Box
-
ServicePrompt DeliverySurface finishMatt Surface
-
PackagePP Bag

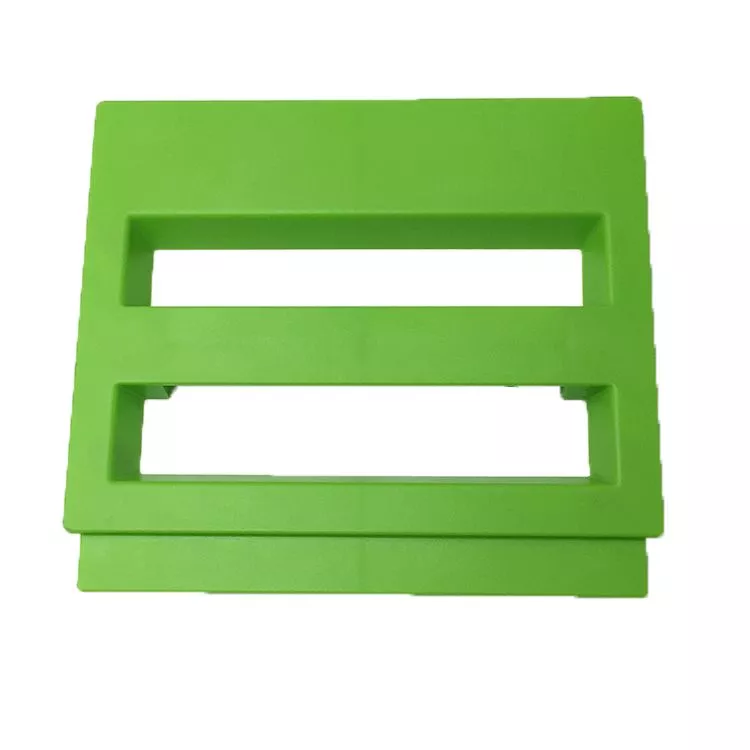

The S2310 example is a rectangular molded plastic panel with two elongated rectangular openings and raised edges around the apertures. A small feature is visible within one opening. This geometry is useful for defining the component outline and the interfaces that must match the surrounding assembly.
Panel and aperture specification
Supply the panel's outer dimensions, thickness requirements and the location and size of both openings. Identify which edges locate the part and which faces remain visible. Any smaller tabs or mating features should be shown in the part drawing so that the quotation covers their actual geometry.
Injection molding, cutting and painting are listed services. PA66, PP, ABS and PC are material options, with color, size and shape specified by the customer. Select the required grade and finish for this panel instead of using its green sample color as a material designation.
Mould and part supply
State whether the enquiry concerns molded parts, mould-design work or both, and include the drawing revision and quantities. Agree the supply scope, acceptance dimensions and matte-surface or painting requirements before ordering. Numerical precision and application performance require the selected design's own specifications.
