Custom Aluminum Extruded T Slot Profiles | Strip Trim Housing CNC Machining Enquiries
Generate QR code
Product description
Project & Delivery Requirements
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Turning, Wire EDM, Rapid Prototyping
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model NumberS 2211Product material6063 Aluminum
-
ColorBlack MetalSizeCustomized
-
Surface treatmentAnodized/oxide etc /powder coatedToolingMade by ourself
-
PackingCartonProcessSand casting +CNC Machining
-
CertificationISO9001-2008MachiningAvailable
-
ApplicationIndustrial Equipment
Slots and hollow chambers around a central opening

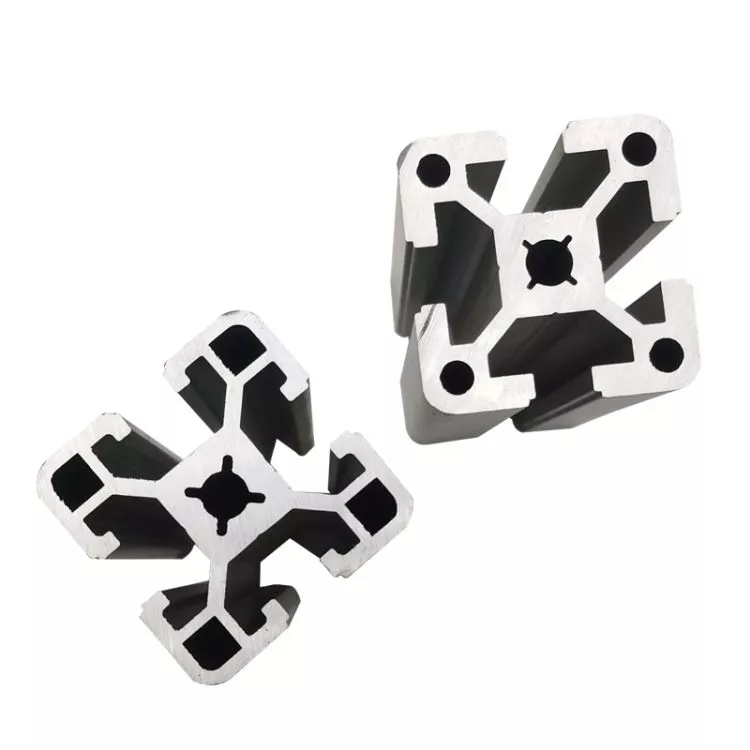

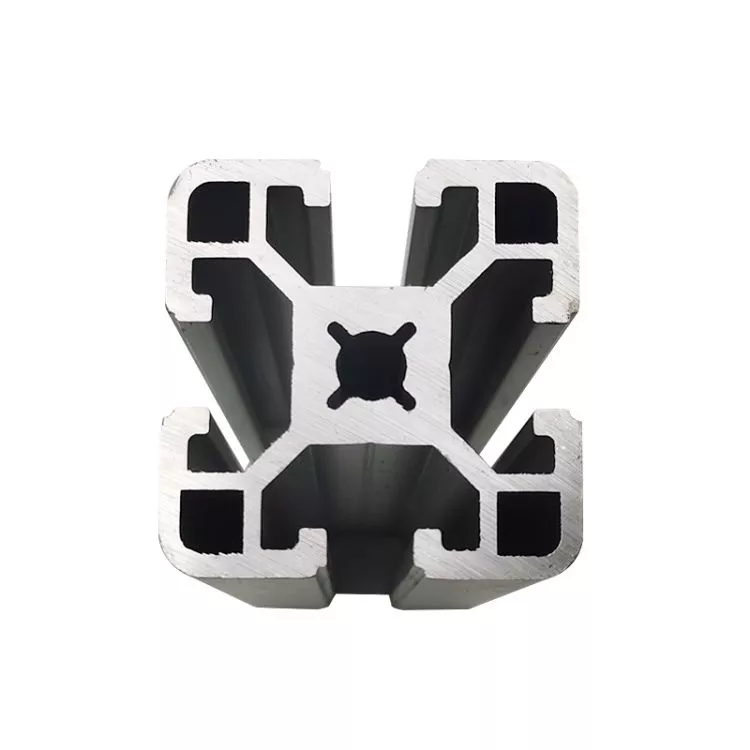

The cut-end view shows an approximately square section with outer slots, internal chambers and a central shaped opening. Provide the actual profile drawing rather than deriving dimensions or slot standards from the photograph.
Profile production and machining
For a 6063 aluminum extrusion request, state the alloy condition and required route. The retained sand-casting and CNC parameter does not confirm extrusion for this example. Define any end machining, bores or fixing holes separately.
Include cut length, quantities, finish and the mating hardware geometry. Mark inspection dimensions for the slots and central opening. The image does not establish a nominal profile size, load capacity or compatibility with a particular framing system.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
