Custom Industrial Aluminum Extrusion Profiles | Curved Shell Section Enquiries

• Grade

  6000 Series
  Temper

  T3-T8
• Application

  Heat Sink
  Shape

  Angle
• Alloy Or Not

  Is Alloy
  Model Number

  S2301
• Tolerance

  0.02mm, ±0.02
  Processing Service

  Bending, Decoiling, Welding, Punching, Cutting, Machining
• Delivery Time

  15 days
  Material

  6063/ 6061 etc
• Machining

  Available
  Surface treatment

  Anodized/oxide etc /powder coated
• Tooling

  Made by ourself
  Surface Color

  Customized Panton Colors

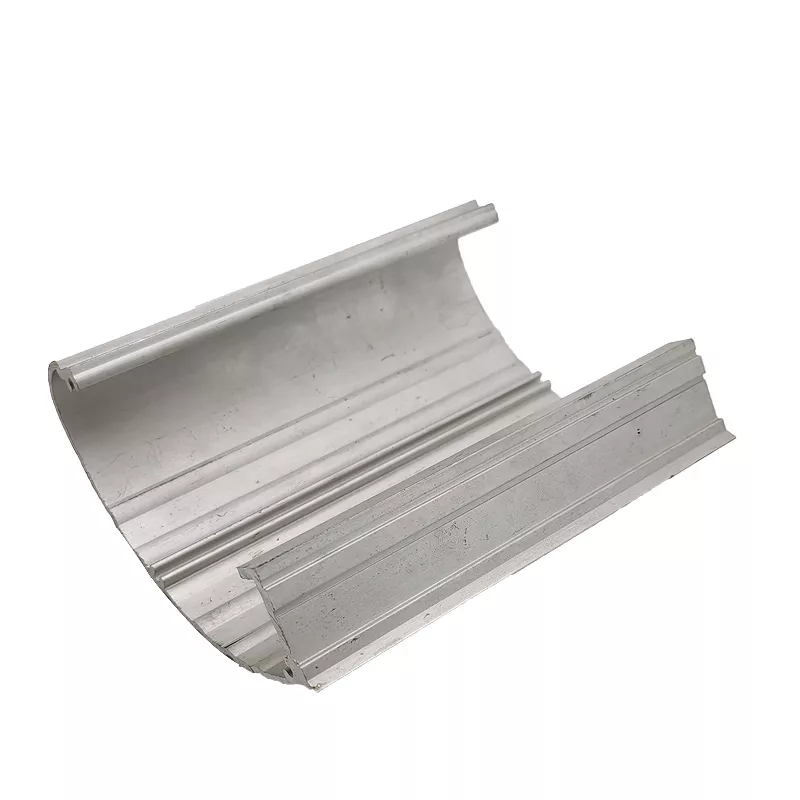

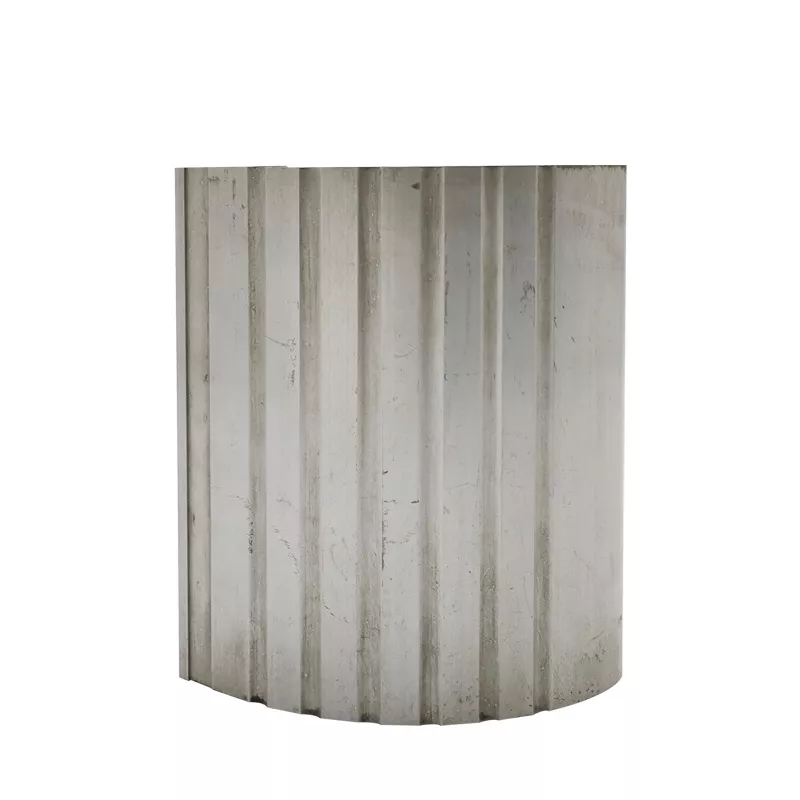

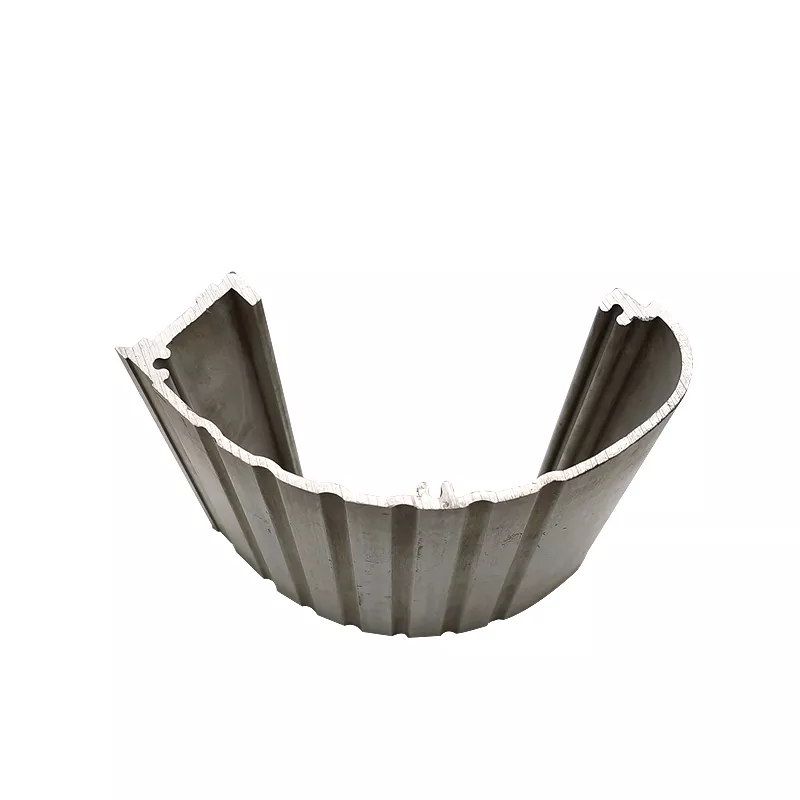

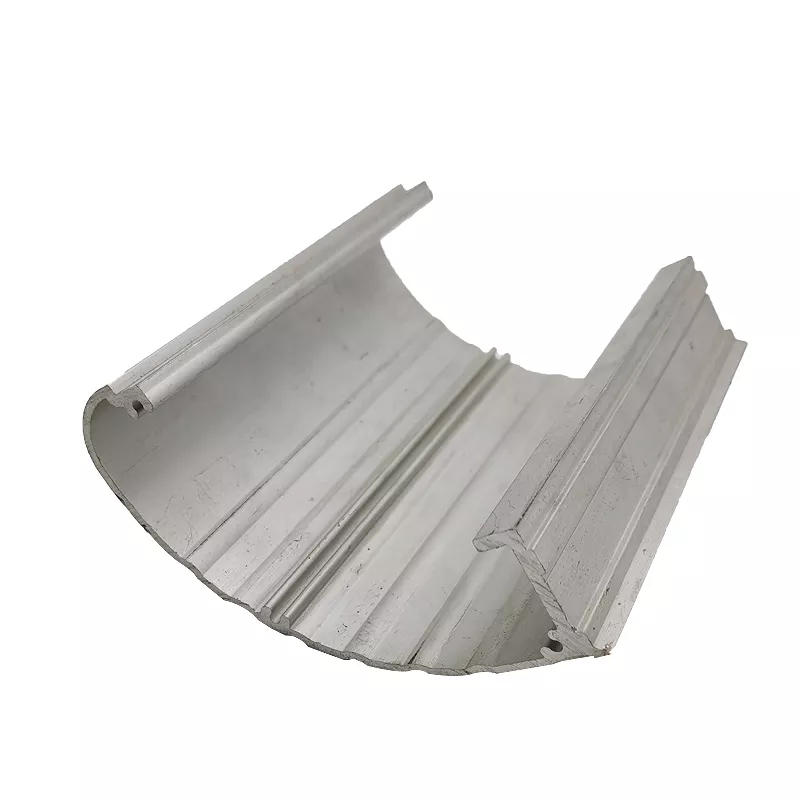

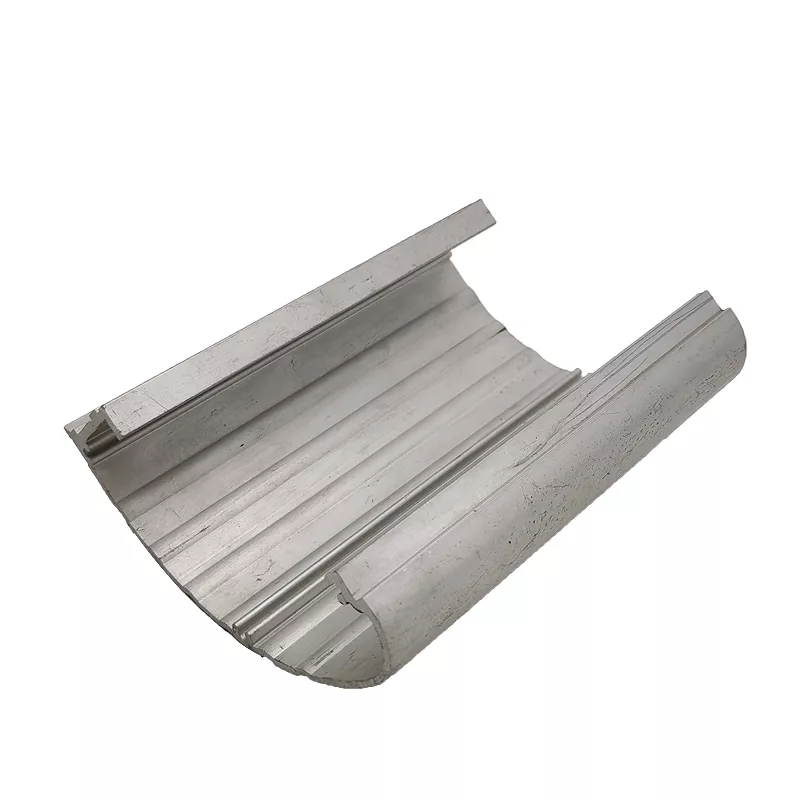

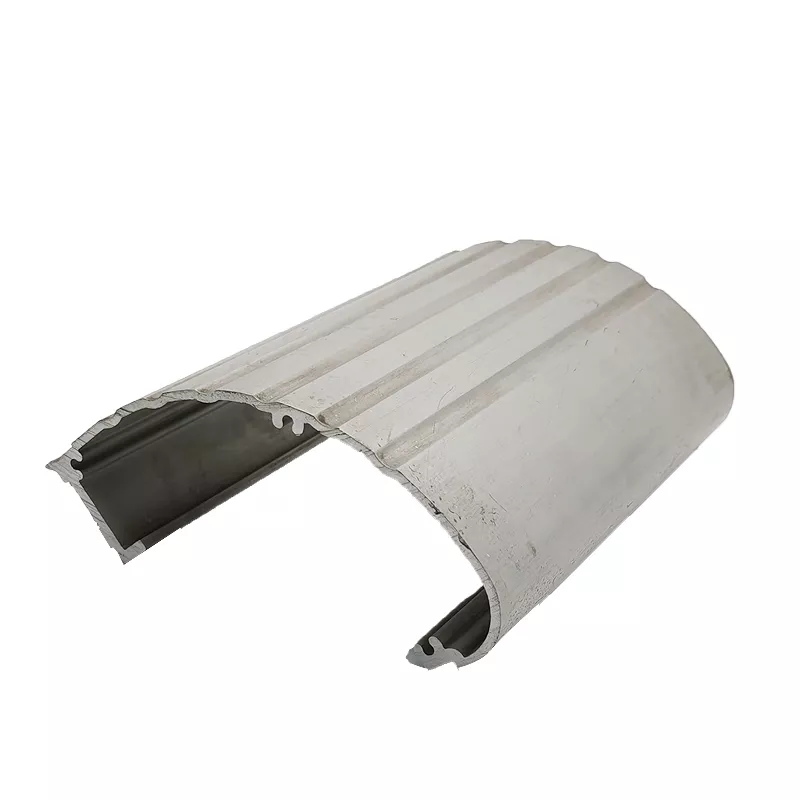

Define the curved section required by the industrial assembly. The example is an open shell-like profile with longitudinal ribs and shaped edge details. Its contour, wall geometry and supplied condition should be described by the drawing rather than inferred from a general angle-profile field.

Locate the contour and edge engagement

Provide the cross-section, cut length and the interfaces that meet adjoining parts. Show the inner clearance and outer contour, with any wall or rib dimensions that affect the installation. Identify whether the edges locate, support or engage another component and include that mating detail where it controls fit.

The photograph does not establish a particular radius, thickness or manufacturing setup. If holes, machined ends or finished contact faces are required, locate them from the drawing references. State which features belong to the profile section and which require secondary operations.

Select the material and finished requirements

Choose the actual 6061 or 6063 alloy and temper for the order. Identify the required finish and any surfaces needing masking or fit protection. General service options such as bending, welding or machining are not a complete instruction to perform every operation on each profile.

Assign dimensional limits to the actual features that matter. The 0.02mm and ±0.02 references need affected dimensions, units and measurement conditions before they can define acceptance. Agree the profile and secondary-work route with inspection in the final supplied condition.

Connect the section to its intended service

• Provide the curved section and assembly revision.
• Specify the actual alloy condition and individual lengths.
• Locate ribs, edges and finished mating features.
• Define secondary work, finish and inspection.
• State the installation and application acceptance requirements.
