Custom 6000 Series Aluminum Extrusion Profiles with CNC Machining for Curved Channels and Industrial Mounting Plates
Generate QR code
Product description
Project & Delivery Requirements
-
Grade6000 SeriesTemperT3-T8
-
ApplicationHeat SinkShapeT - Profile
-
Alloy Or NotIs AlloyModel NumberS 240425
-
Tolerance0.05mmProcessing ServiceBending, Decoiling, Welding, Punching, Cutting, extruding
-
Delivery Time15-21 daysProduct nameCustom Extrusion Aluminum Heat Sink Enclosure
-
ColorPanton ColorSurface treatmentAnodized/oxide etc /powder coated
-
ToolingMade by ourselfCertificationISO9001:2008/ ISO14001:2004/ OHSAS 18001:1999/PPG/TUV
-
KeywordHeatsinkMaterial & TemperAlloy 6063-T5/6061-T6
-
Deep processExtrusion Driling Precison Cutting CNCFabricationExtruded+cutting+machining
-
LengthLongest 6 Meters

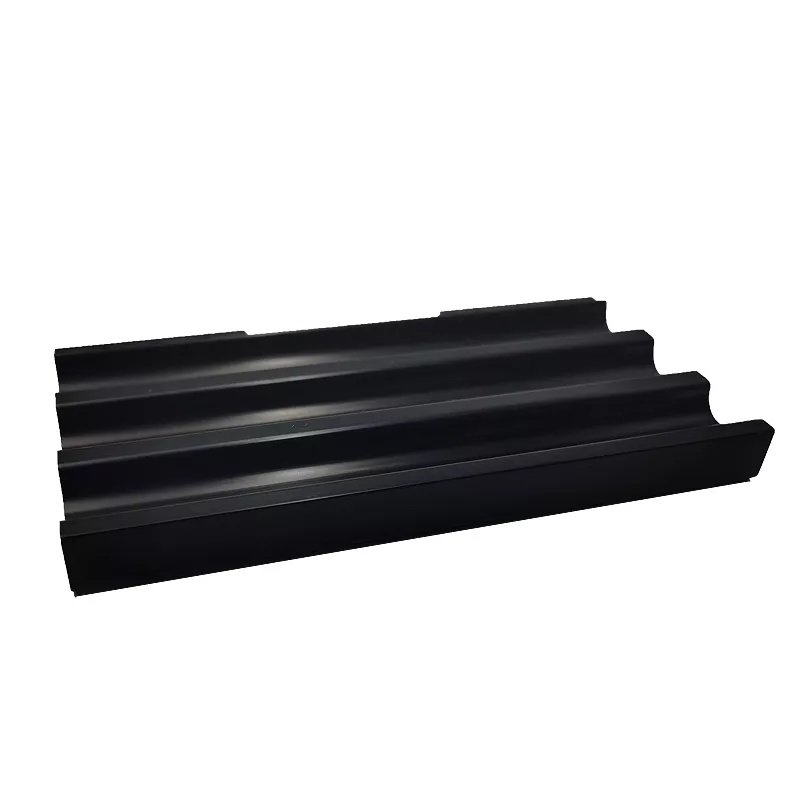

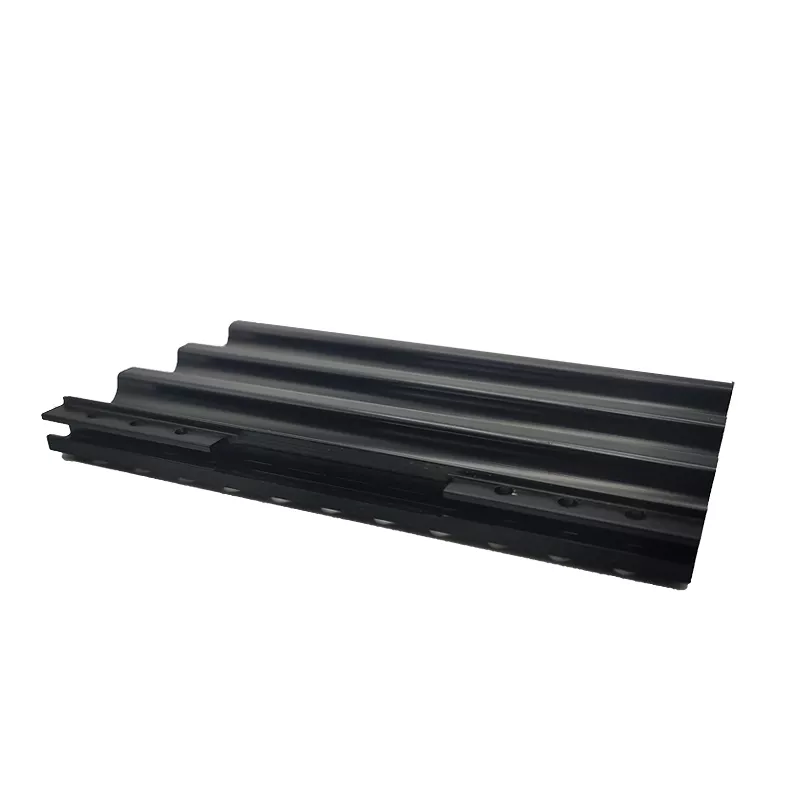

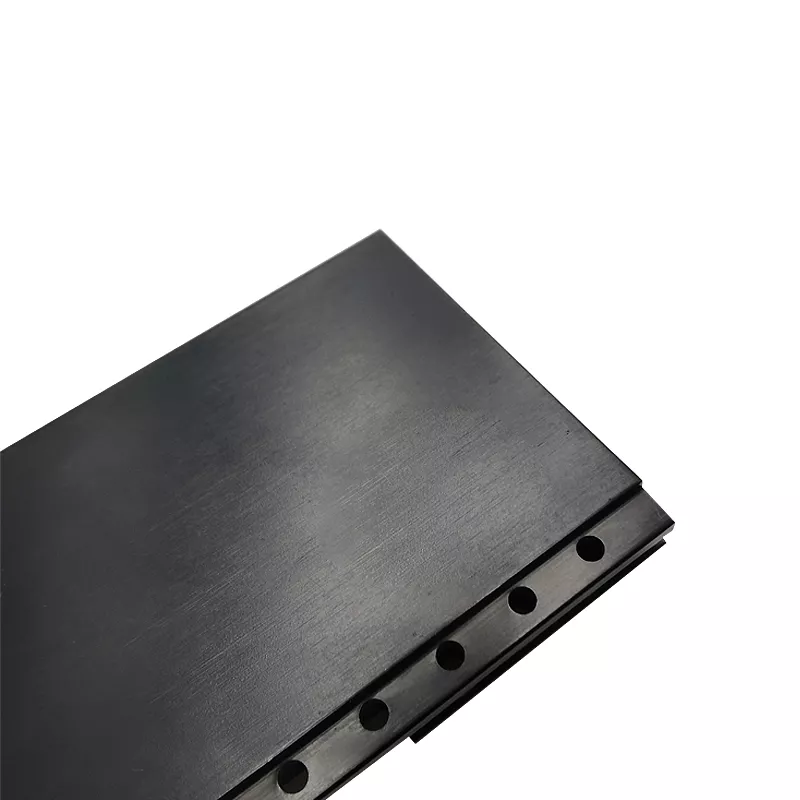

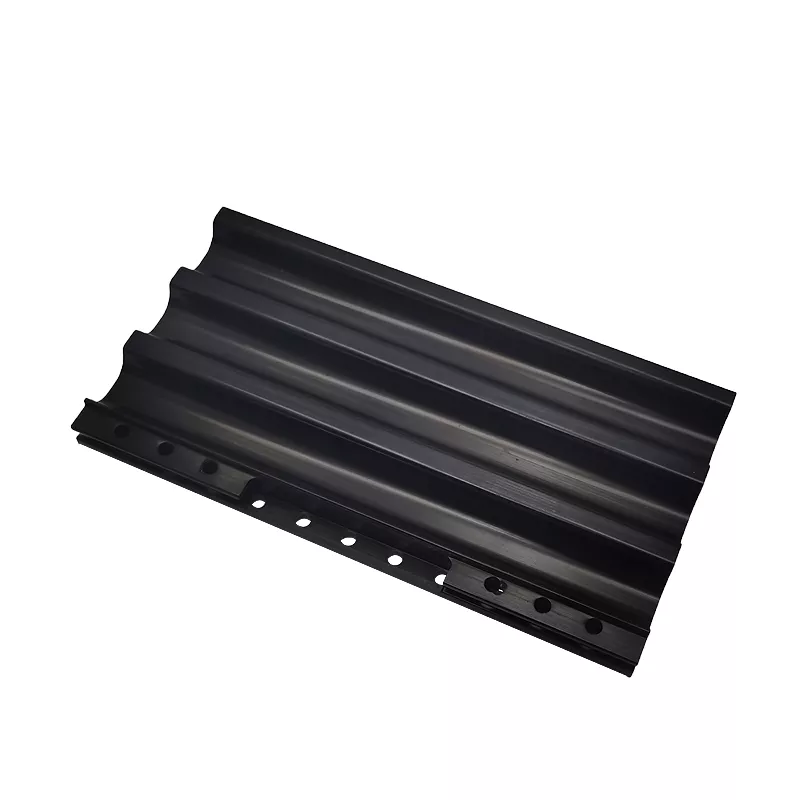

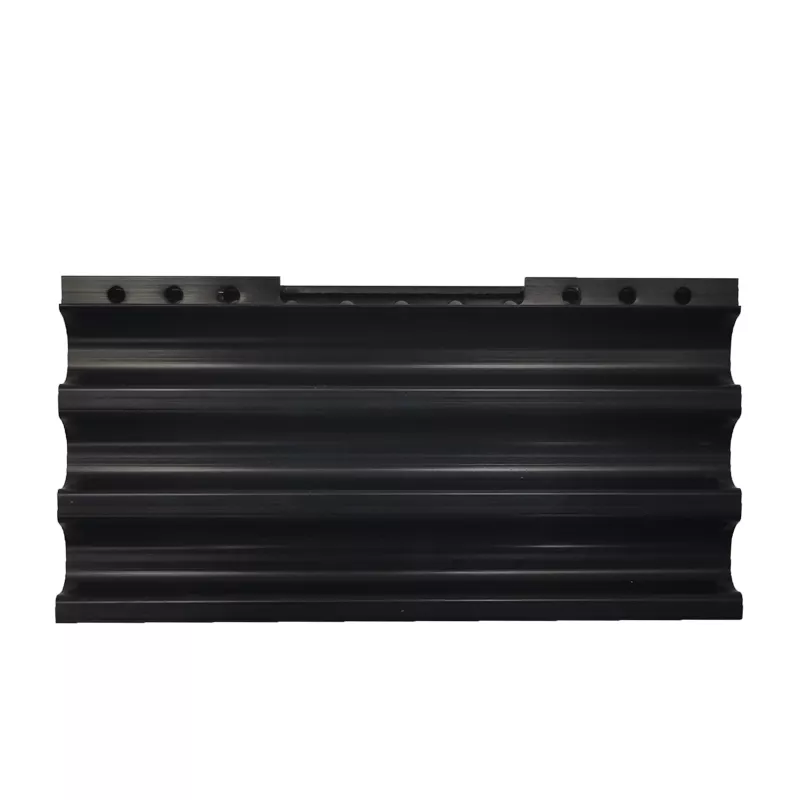

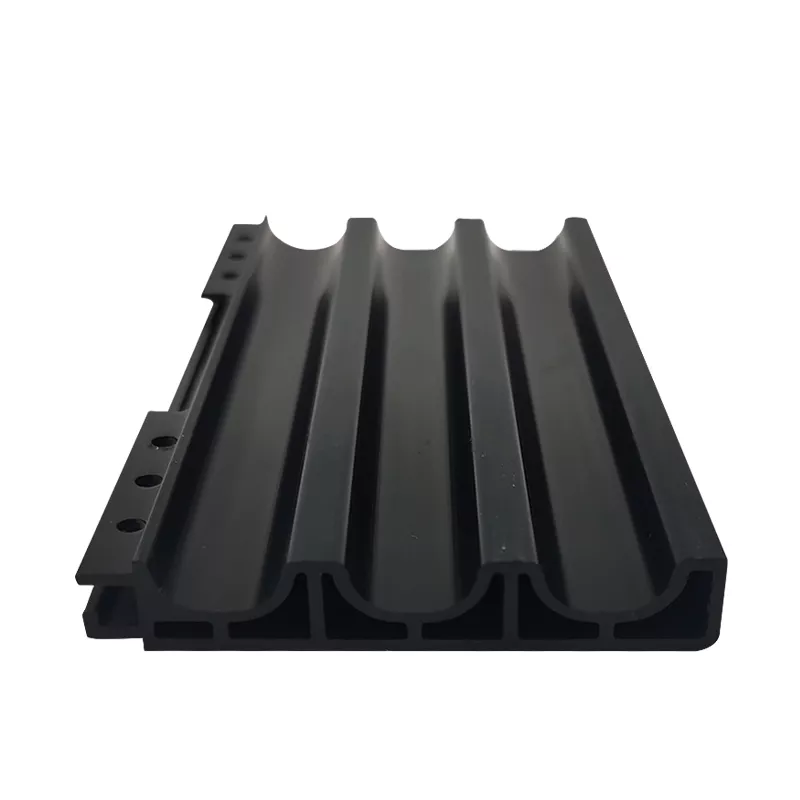

Three rounded longitudinal channels sit above an internally webbed base in the illustrated section. A side flange carries fixing holes. Define the channel surfaces and hole pattern from common references so the profile can align with its mating components.
Section and machining information
Model S 240425 lists extrusion, cutting and CNC machining, with 6063-T5 and 6061-T6 aluminum choices. Specify the selected alloy and temper, cut length, channel geometry, flange dimensions and quantities. Select anodized, oxide or powder-coated finish requirements. Include the mating-part drawing and any inspection dimensions for channel fit; the photograph does not identify the equipment or establish a load rating.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
