OEM Custom Precision Aluminum and Stainless Steel Sheet Metal Stamping Fabrication Parts
-
Model NumberLZXMaterialsteel, stainless steel, aluminum, galvanized steel,
-
SizeCustomized sizeApplicationMachinery/Industry/Home/Automotive
-
ColorCustomized ColorProcessStamping
-
ServiceCustomized OEMUsagePrecision Metal Stamping Product
-
TypeOEM PartsEquipmentCNC Bending/Stamping Machine/Laser Marking

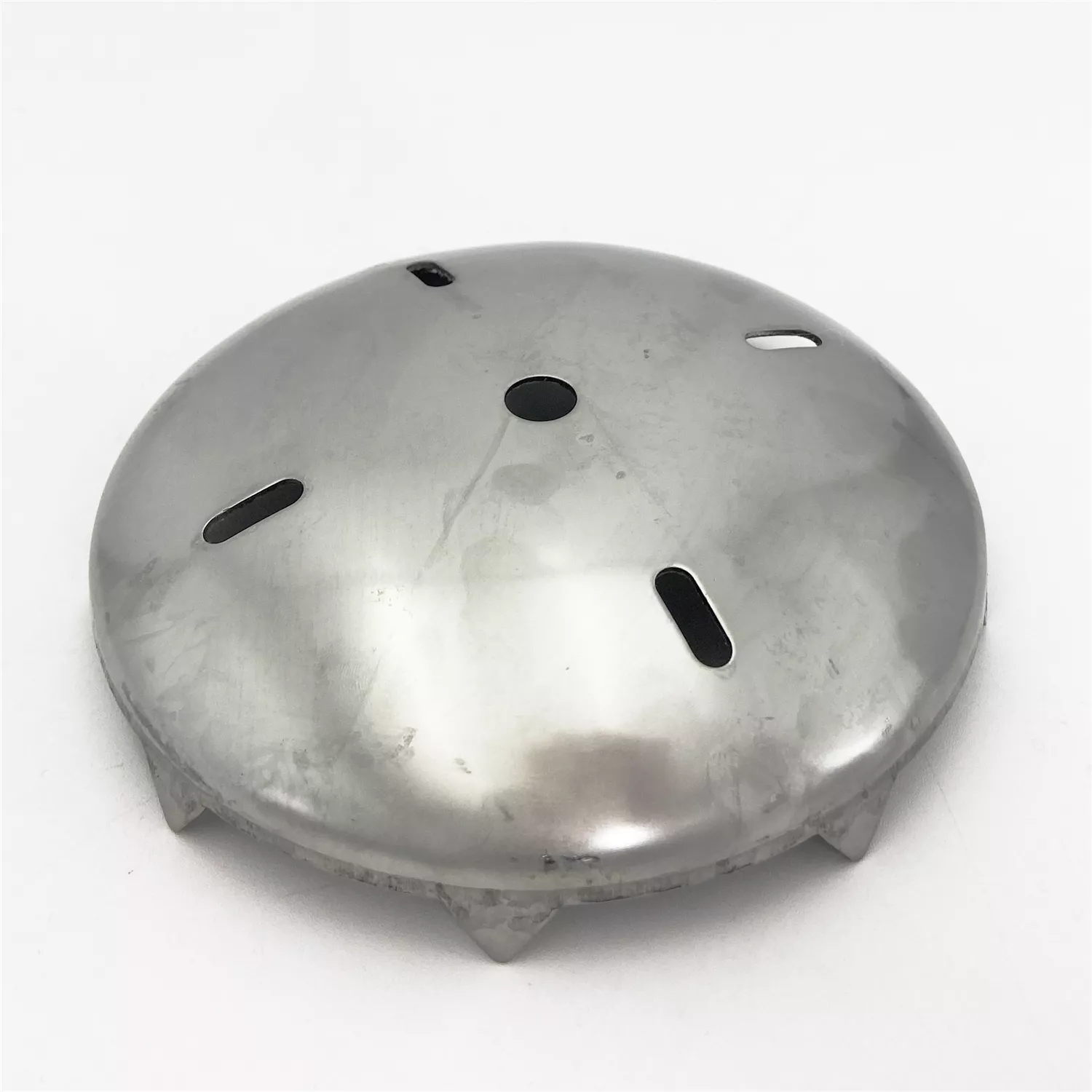

Formed cover with openings and mounting tabs
The illustrated stamping example has a circular formed wall, a raised center opening, elongated top openings and fixing tabs around its perimeter. Its finished drawing should define the formed profile together with the hole locations and mounting surfaces.
Specify the sheet material, thickness, overall depth, center opening and perimeter fixing pattern. Include section views for the formed areas and identify the edges requiring deburring. Show the mating component where it determines clearance or the position of the mounting tabs.
OEM sheet metal fabrication enquiry
LZX lists steel, stainless steel, aluminum and galvanized steel as material choices, with customized sizes and colors. Stamping and CNC bending equipment are listed for review of the required operations. Send the selected material grade, quantities, drawing revision and inspection requirements so the quotation addresses the ordered cover geometry and final supplied condition.
