Custom 6000 Series Aluminum Extruded Fin Heat Sink with Black Anodizing Finish
Generate QR code
Product description
Project & Delivery Requirements
-
Grade6000 SeriesTemperT3-T8
-
ApplicationHeat Sink, Industrial EquipmentShapeT - Profile
-
Alloy Or NotIs AlloyModel NumberDmetal-2309
-
Tolerance±1%Processing ServiceBending, Decoiling, Punching, Cutting
-
Delivery Time22-30 daysProduct material6063 Aluminum
-
ColorBlack MetalSizeCustomized
-
Surface treatmentAnodized/oxide etc /powder coatedToolingMade by ourself
-
PackingCartonProcessSand casting +CNC Machining
-
CertificationISO9001-2008MachiningAvailable
Coordinate the rectangular base and fin field

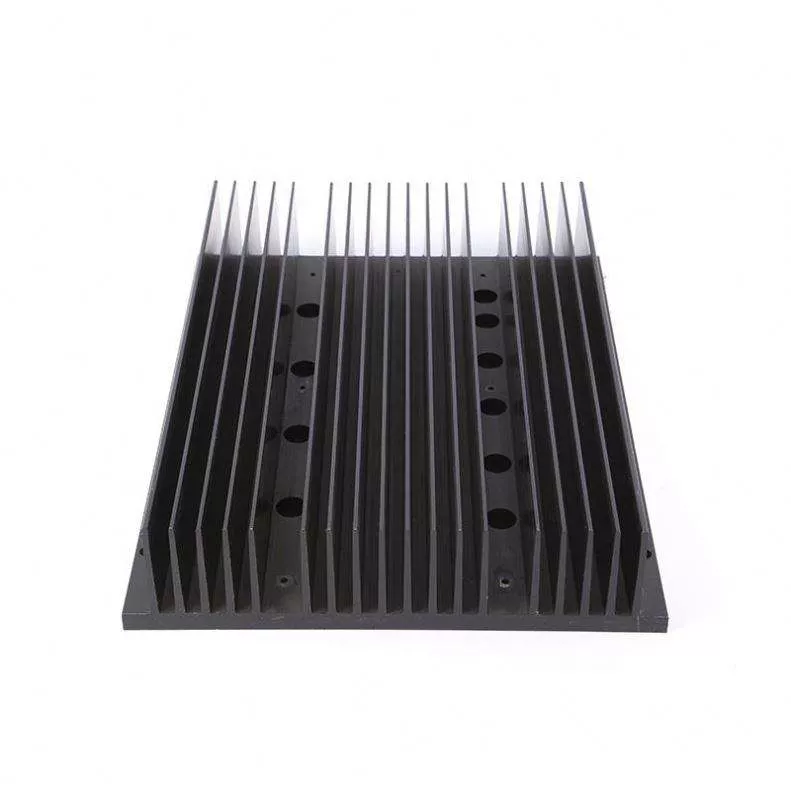

The example has a dark rectangular base with parallel fins ending near its edges. Define the contact-face outline, base thickness and fin spacing together, and mark the mounting references relative to the heat source.
Specify the required finished part
State the selected 6000-series aluminum alloy and temper, section length and any machining needed for installation. For black anodizing, identify the required finish and any contact areas that must be masked or controlled separately.
Include the heat-source footprint, airflow and thermal design requirement. Provide quantities and the drawing revision, with the dimensions and surface conditions that need inspection before assembly.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
