Product description
Project & Delivery Requirements
-
Grade6000 SeriesTemperT3-T8
-
ApplicationHeat SinkShapeAngle
-
Alloy Or NotIs AlloyModel NumberS 2301
-
Tolerance0.02mm, ±0.02Processing ServiceBending, Decoiling, Welding, Punching, Cutting, Machining
-
Delivery Time15 daysMaterial6063/ 6061 etc
-
MachiningAvailableSurface treatmentAnodized/oxide etc /powder coated
-
ToolingMade by ourselfSurface ColorCustomized Panton Colors

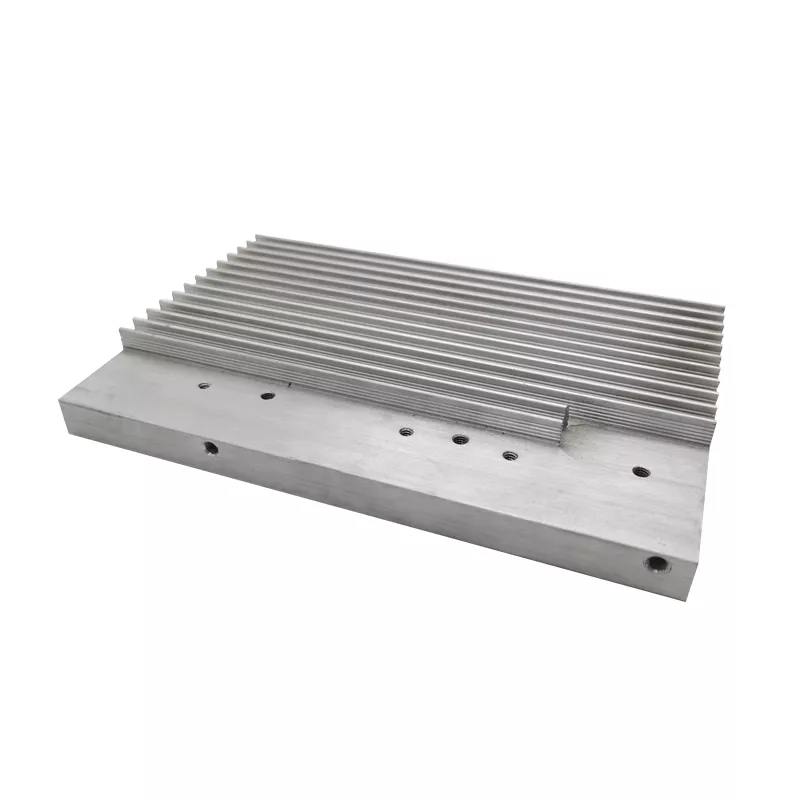

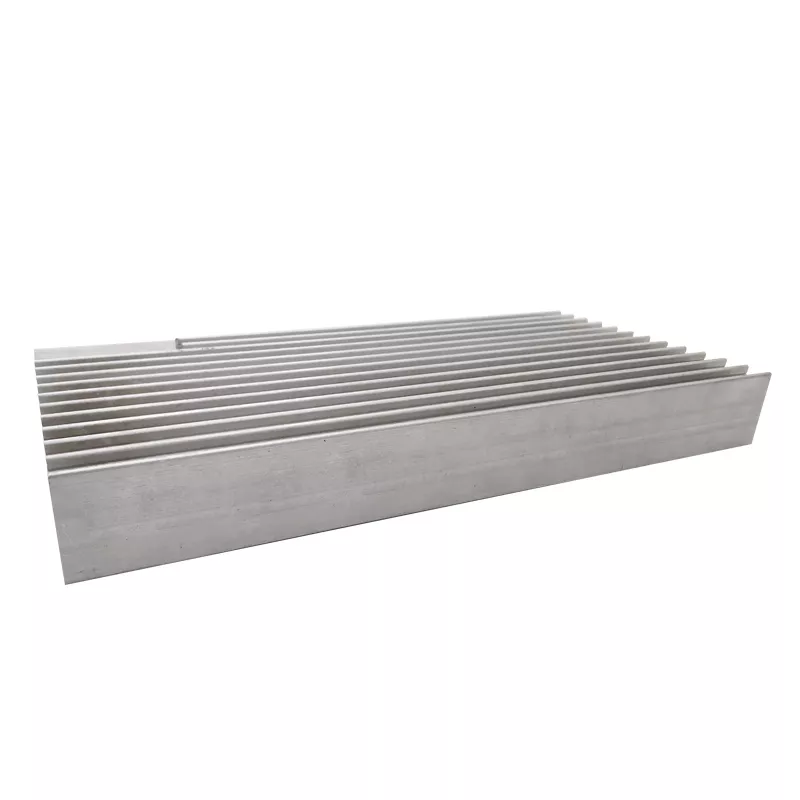

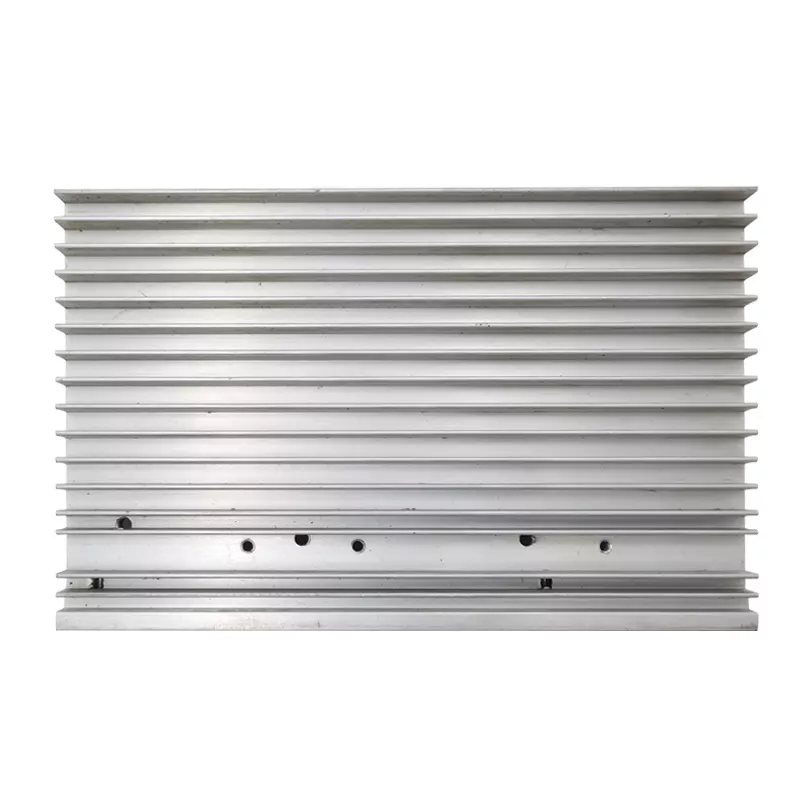

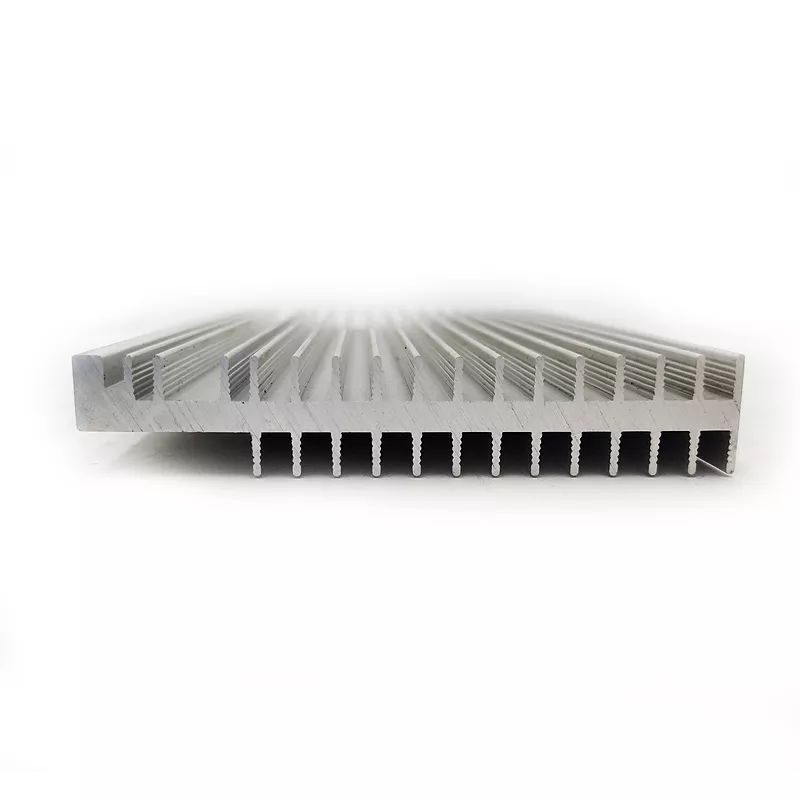

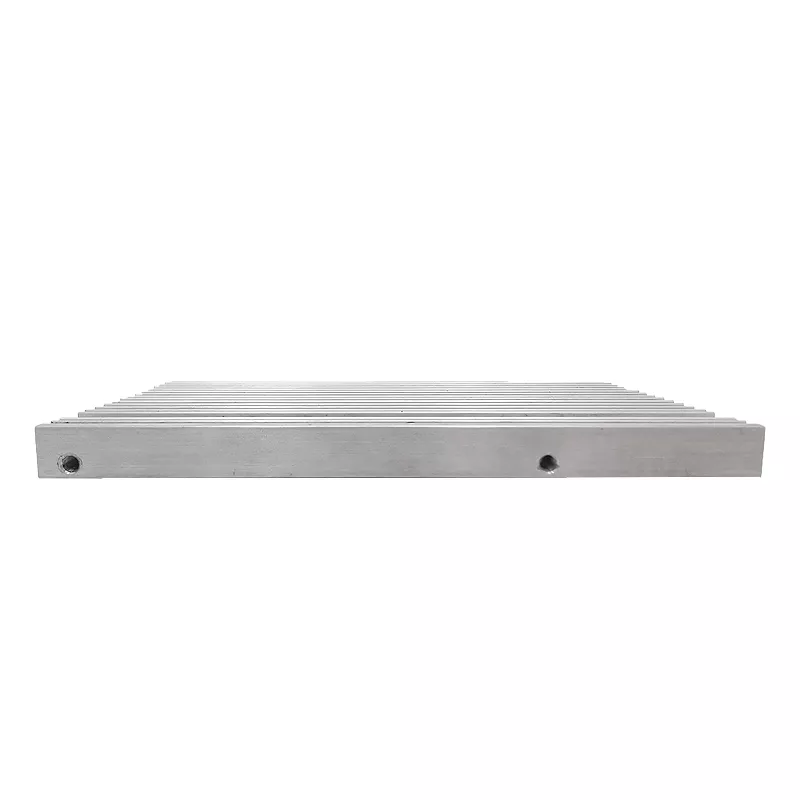

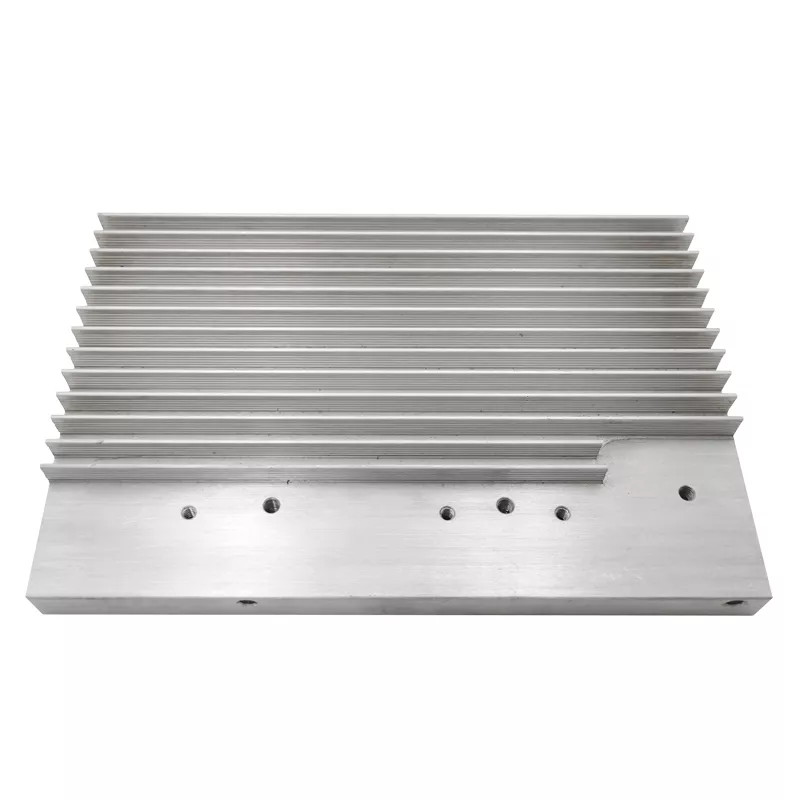

The example has a finned region on a rectangular base plate, an exposed mounting strip and holes in the base and edge. Define the component contact area and fixing pattern, including the clearance between the fins and the surrounding enclosure.
Thermoelectric cooler or LED project review
Provide the heat load, target temperatures, airflow and installation orientation before selecting the section. Model S 2301 lists 6063 and 6061 aluminum, machining and anodized, oxide or powder-coated finishes. Specify the alloy, temper, dimensions and quantities for your application. The pictured plate is a thermal component example; a complete enclosure, LED assembly or thermoelectric system requires a separately defined supply scope.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
