Custom 6061 6063 Aluminum Extruded Heat Sink Profile with Central Fixing Strip and Anodizing
Generate QR code
Product description
Project & Delivery Requirements
-
Grade6000 SeriesTemperT3-T8
-
ApplicationHeat Sink, Industrial EquipmentShapeT - Profile
-
Alloy Or NotIs AlloyModel NumberDM2012
-
Tolerance±1%Processing ServiceBending, Decoiling, Welding, Punching, Cutting, extruding
-
Delivery Time22-30 daysProduct material6061 6063 Aluminum
-
ColorBlack MetalSizeCustomized
-
Surface treatmentAnodized/oxide etc /powder coatedToolingMade by ourself
-
PackingCartonProcessSand casting +CNC Machining
-
CertificationISO9001-2008MachiningAvailable

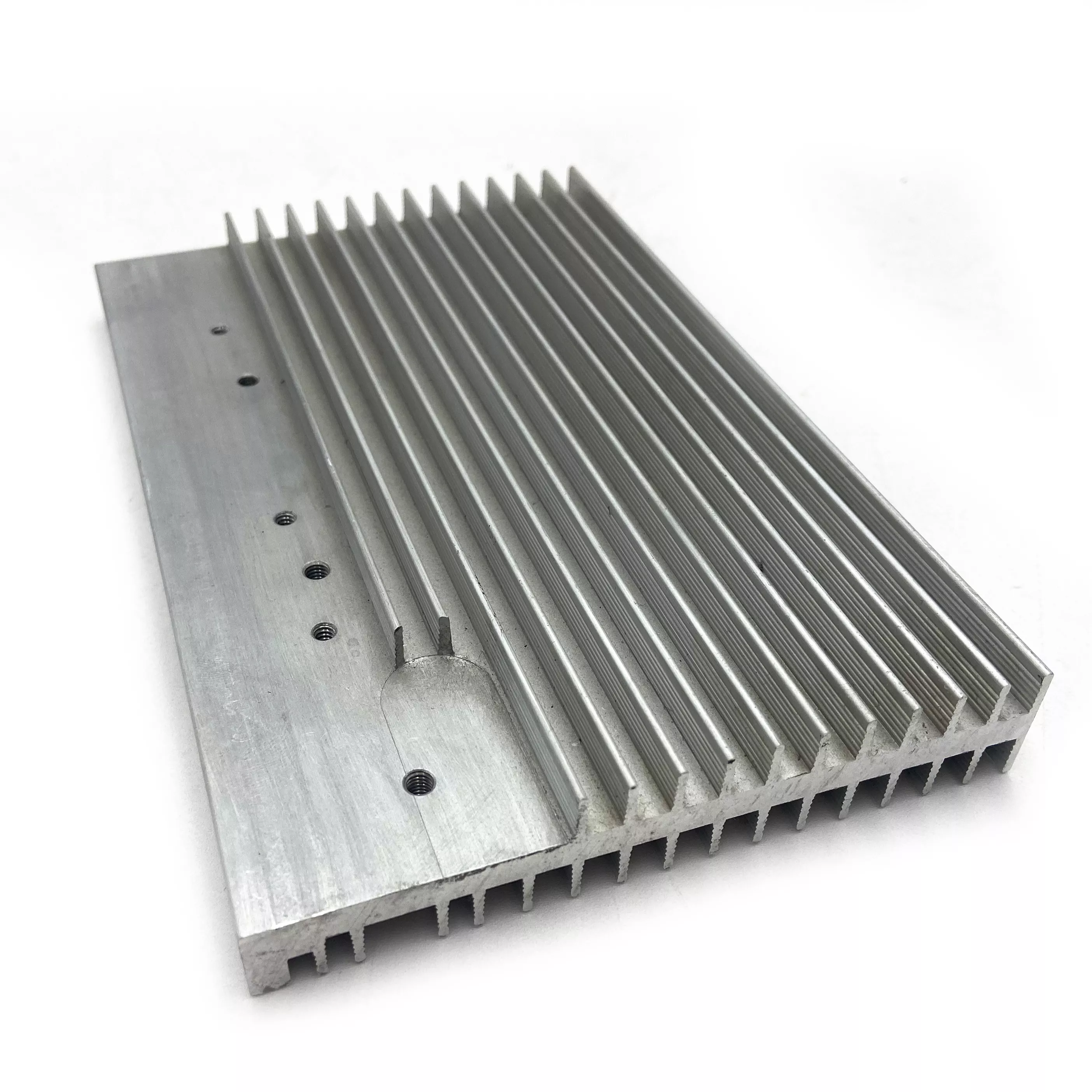

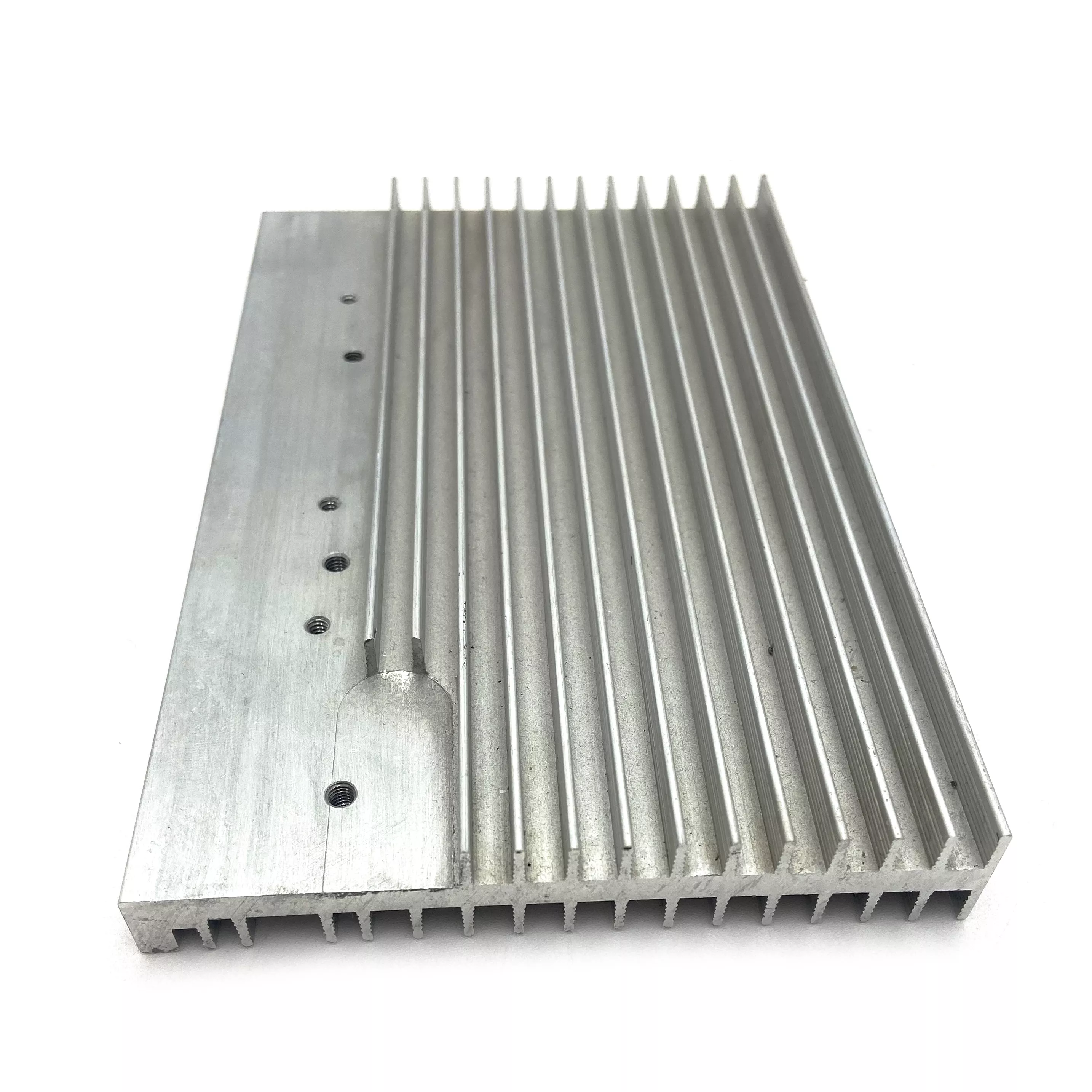

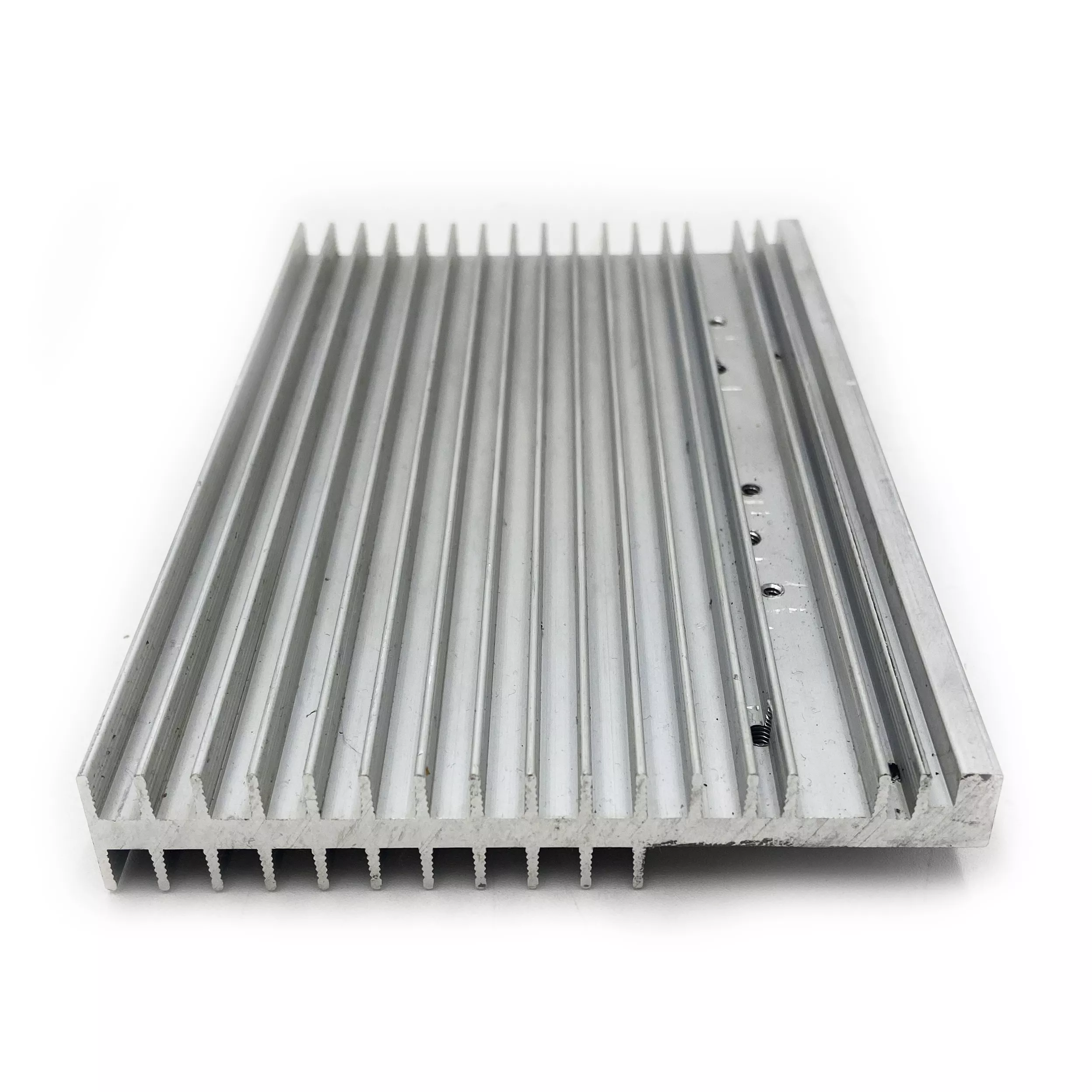

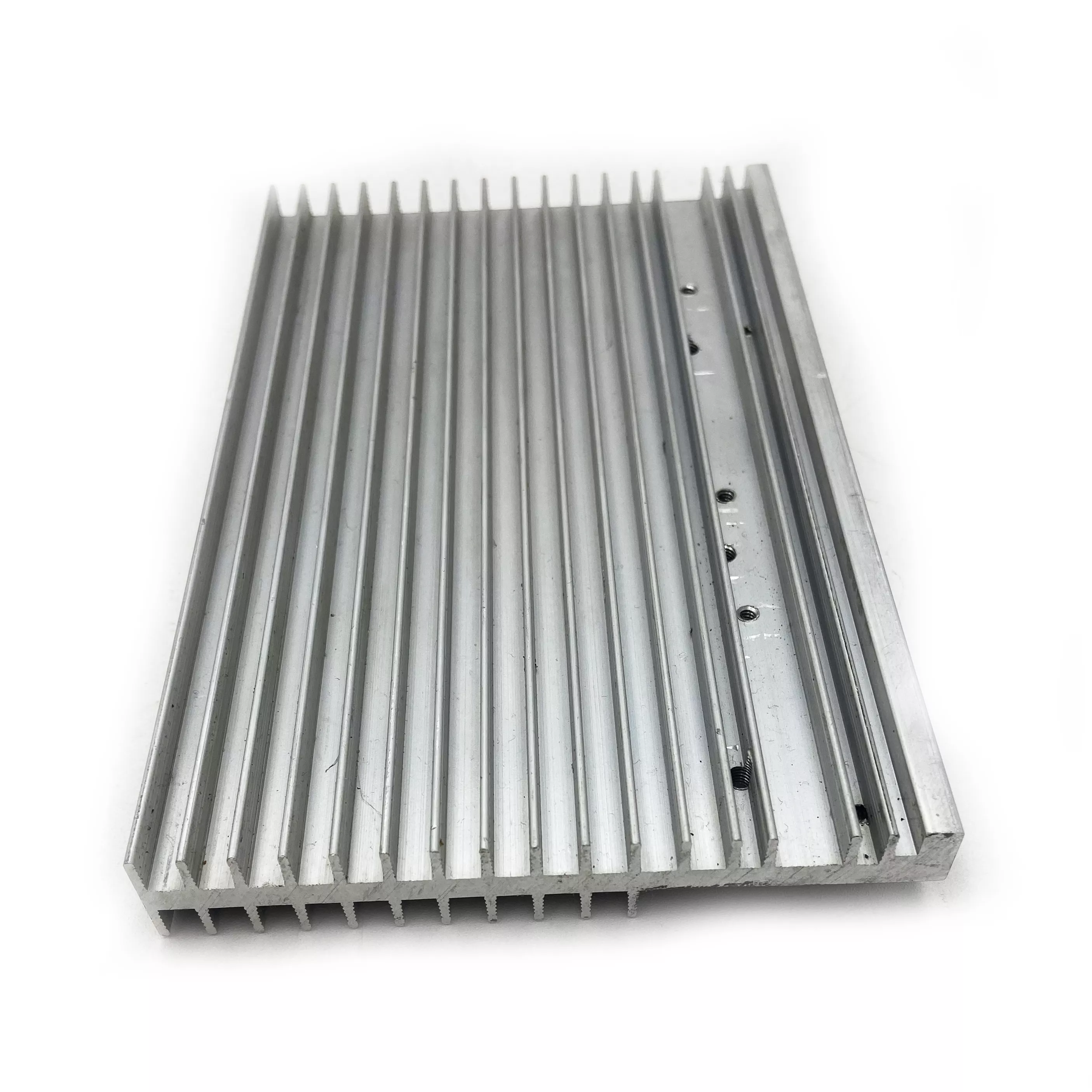

A fixing strip runs through the finned section
The example shows parallel fins interrupted by a flat strip with a row of holes. Dimension that strip and its hole pattern from the base references, with the fin height, spacing and overall contact-face outline.
For a custom 6061 or 6063 aluminum extrusion, state the alloy and temper required by the design. Provide the cut length, secondary-machining details and anodizing or other finish specification.
Information for installation review
Include the heat-source layout, fastening arrangement and airflow conditions. Add thermal requirements and quantities, identifying the inspection dimensions for the mounting strip and contact surface on the current drawing.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
