Custom Precision CNC Turning Parts in Aluminum, Steel, Brass and Stainless Steel with Recessed Conical Profiles
Generate QR code
Product description
Project & Delivery Requirements
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Rapid Prototyping, Turning, Wire EDM
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model NumberDmetal-200389Surface treatmentSmooth
-
CertificationISO9001:2008MaterialAluminum Alloy
-
Surface finishAnodized/oxide etc /powder coatedSizeCustomized Size
-
Tolerance±0.1ToolingMade by ourself
-
Drawing Format2D/(PDF/CAD)3D(IGES/STEP)
Recessed profile around a central opening

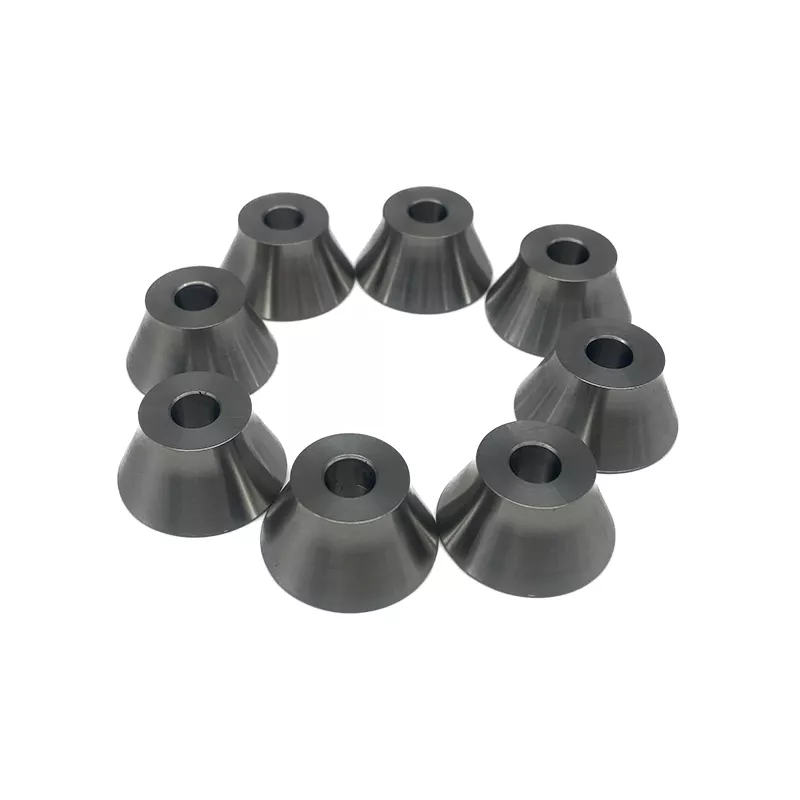

The round components have sloping internal faces, a central opening and a wider outer rim. Define the inner and outer contours in section so wall thickness and seating surfaces can be reviewed together. State whether identical pieces or several drawing variants are needed.
Model Dmetal-200389 names aluminum alloy, with steel alloys, brass and stainless steel among machining capabilities. Select the actual grade for the requested part. CNC turning, milling and drilling are listed, with PDF, CAD, IGES or STEP drawings. Provide quantities, mating dimensions and the required finish; the pictured form alone does not establish a bearing, valve or load-bearing function.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
