Custom Nylon ABS PP Injection Molded Plastic Housing Parts with Stepped Cavities and Mounting Flanges
Generate QR code
Product description
Project & Delivery Requirements
-
Model NumberS2410Plastic Modling TypeInjection
-
Processing ServiceMoulding, CuttingColorCan be customized
-
SizeCustomized SizeMaterialPA66/PP/ABS /PC, Etc
-
CertificationROHSFeatureHigh Precision
-
ShapeCustomized ShapesPackingStandard Carton Box
-
ServicePrompt DeliverySurface finishMatt Surface
-
PackagePP Bag
Define the housing cavity against the mating assembly

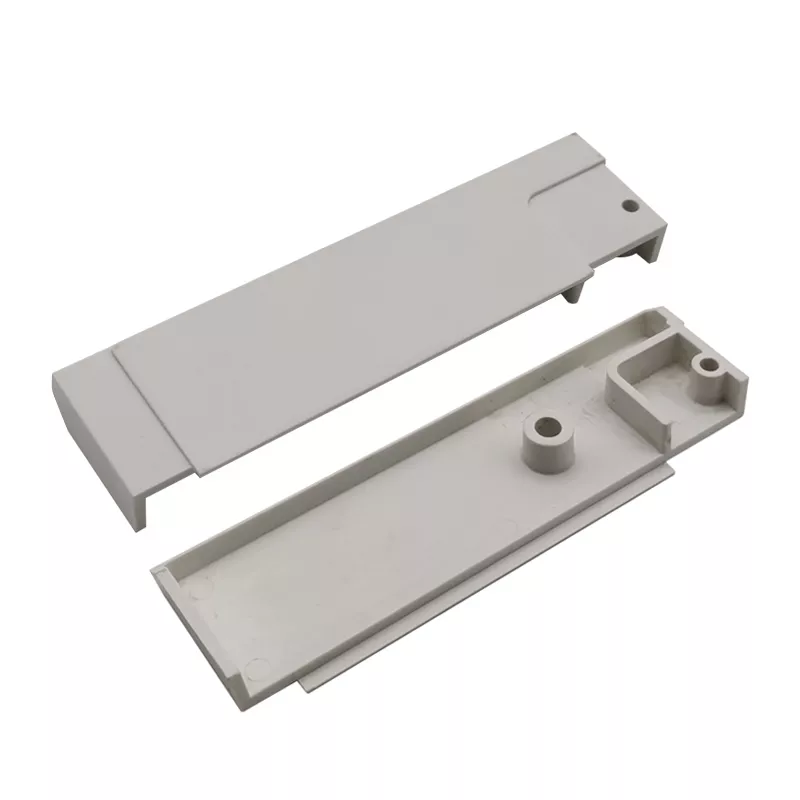

The S2410 example has a stepped hollow body, raised bored features and a flange around the open edge. Exterior and interior views show the cavity and its surrounding profile. Dimension the internal clearances, flange holes and raised features from shared assembly references.
PA66 nylon, ABS and PP are listed material options, with size, shape and color specified for the order. Molding and cutting services and a matte finish are listed. State the resin grade, quantity and dimensions used for inspection. Confirm the companion parts and supplied scope; the photograph does not establish a waterproof or electrical protection rating.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
