OEM Custom 6000 Series Anodized Aluminum Extrusion LED Heat Sink with Mounting Plate
Generate QR code
Product description
Project & Delivery Requirements
-
Grade6000 SeriesTemperT3-T8
-
ApplicationHeat Sink, Industrial EquipmentShapeT - Profile
-
Alloy Or NotIs AlloyModel NumberDM2012
-
Tolerance±1%Processing ServiceBending, Decoiling, Welding, Punching, Cutting, extruding
-
Delivery Time22-30 daysProduct material6061 6063 Aluminum
-
ColorBlack MetalSizeCustomized
-
Surface treatmentAnodized/oxide etc /powder coatedToolingMade by ourself
-
PackingCartonProcessSand casting +CNC Machining
-
CertificationISO9001-2008MachiningAvailable

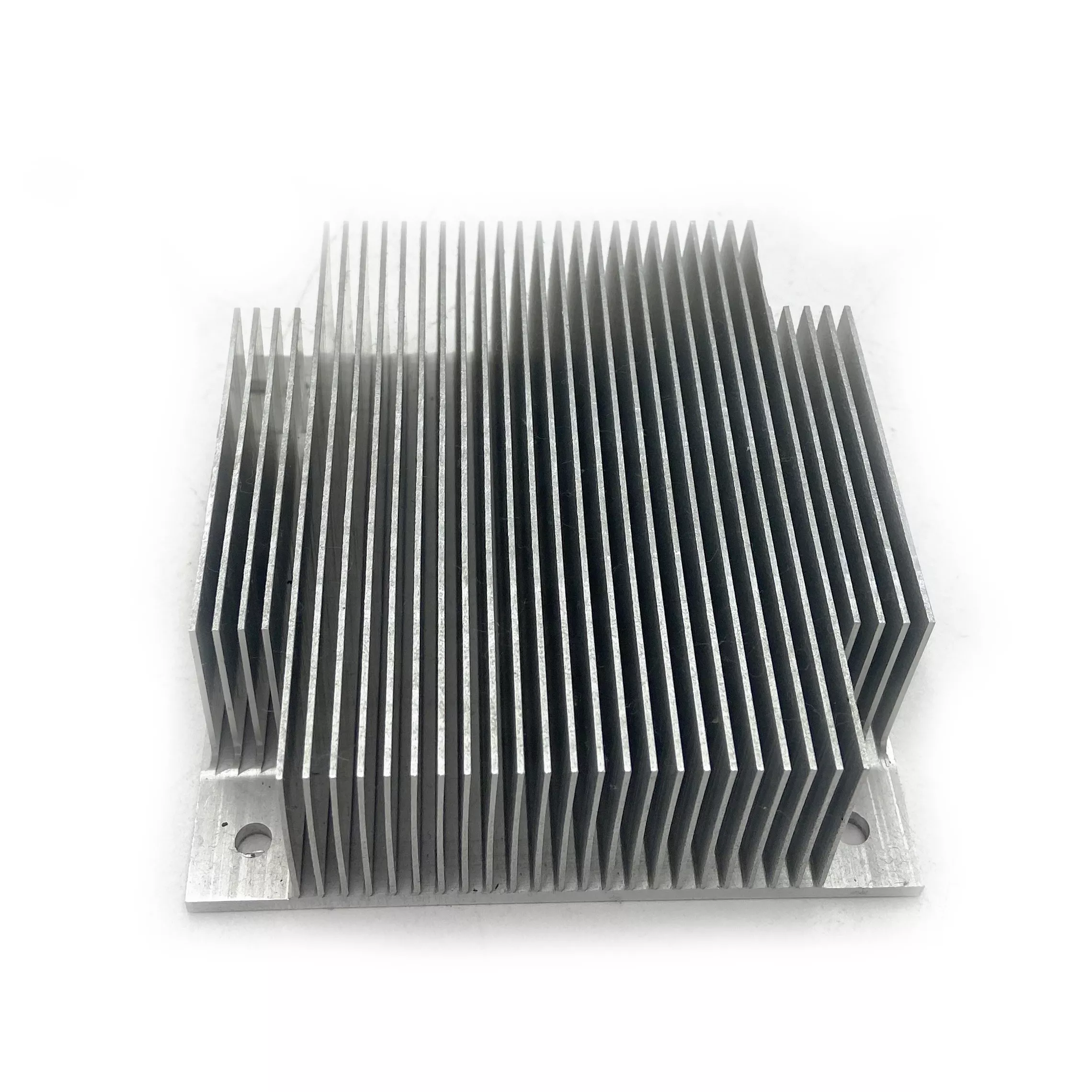

Mounting holes around a flat contact region
The example shows a broad plate with corner fixing holes and fins extending below it. Define the area contacting the LED assembly and the mounting-hole references, including any required machining of the plate surface.
For a custom 6000-series aluminum extrusion, specify the alloy and temper and provide the complete section and cut length. Identify the anodizing requirement, cosmetic areas and any contact surfaces requiring masking or a separate finish condition.
LED installation review
Include the heat-source layout, available fin clearance, airflow and thermal requirements. Add quantities and inspection criteria for the contact region and mounting holes, using the actual LED assembly drawing.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
