OEM ODM Custom Aluminum Alloy Extrusion Profiles with Channels Hollow Sections and CNC Machining
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Turning, Wire EDM, Rapid Prototyping
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model NumberS2212Product material6063 Aluminum
-
ColorBlack MetalSizeCustomized
-
Surface treatmentAnodized/oxide etc /powder coatedToolingMade by ourself
-
PackingCartonProcessSand casting +CNC Machining
-
CertificationISO9001-2008MachiningAvailable
-
ApplicationIndustrial Equipment
A profile defined by its full cross-section

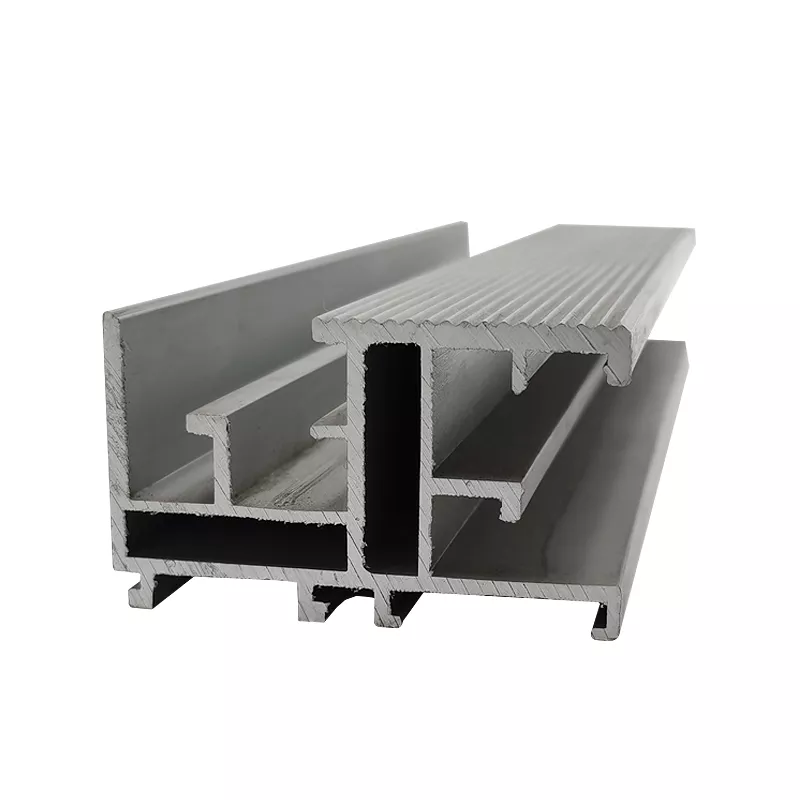

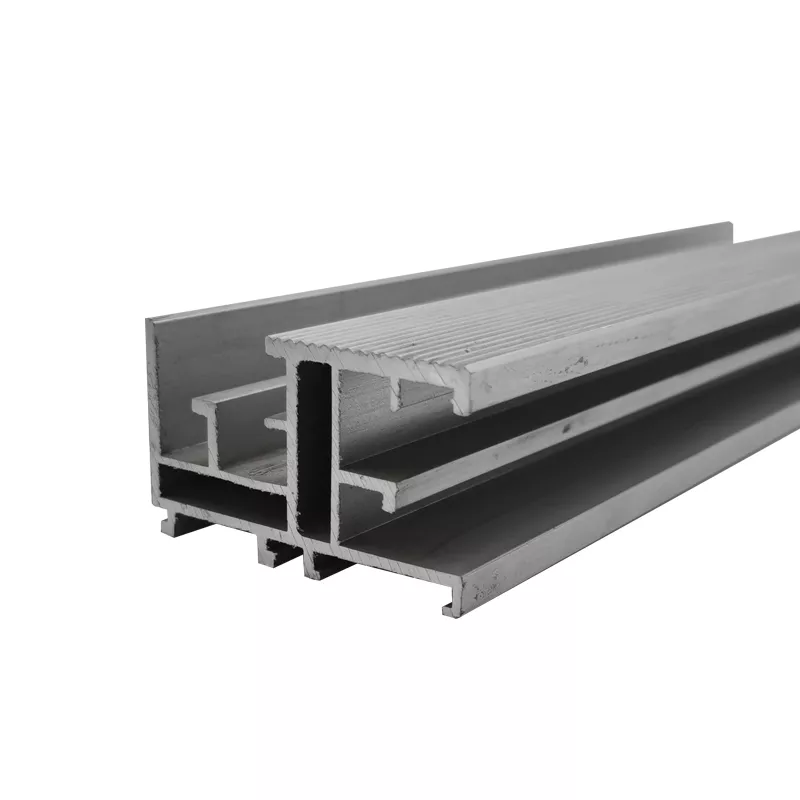

The illustrated section combines hollow rectangular areas, open channels and narrow locating ledges. A complete cross-section drawing should define each opening, wall and ledge, with clear references for the features that mate with adjacent parts.
For an OEM or ODM aluminum extrusion enquiry, specify the alloy and temper, cut length and required finish. Identify any machining after cutting, including holes, pockets or end details, and distinguish those features from the continuous section geometry.
Information for fit review
Provide mating-part drawings, clearance requirements and the dimensions to inspect. State quantities and any requirements for exposed edges or cosmetic faces. Include the drawing revision for both the profile section and subsequent machining so the required supply condition is clear.
