OEM Nylon 66 PP PE ABS Plastic Injection Spare Parts | Inserted Channel Components

• Model Number

  S2306
  Plastic Modling Type

  Injection
• Processing Service

  Moulding, Cutting, Painting
  Color

  Customized
• Size

  Customized Size
  Material

  PA66/PP/ABS /PC, Etc
• Certification

  ROHS
  Feature

  High Precision
• Shape

  Customized Shapes
  Packing

  Standard Carton Box
• Service

  Prompt Delivery
  Surface finish

  Matt Surface
• Package

  PP Bag

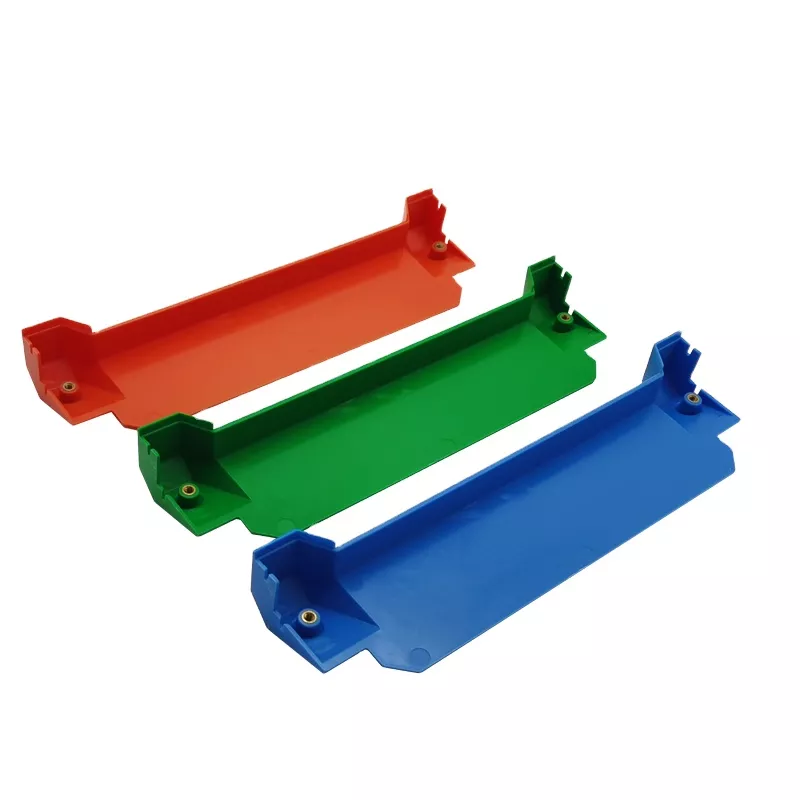

Define the replacement component by its channel section, end tabs and actual mounting arrangement. The red, green and blue examples show internal ribs and small metal-colored details near the ends. Their appearance does not establish insert material, thread designation, joining strength or compatibility with an existing spare-part installation.

Identify the original and mating component references

Provide the required drawing revision and actual assembly interfaces. Dimension the channel, raised tabs and insert locations from functional datums. State which inserts or fasteners are included and identify any retained parts from the existing assembly, rather than assuming a complete replacement kit.

Select the polymer and insert construction

Nylon 66, PP, PE and ABS are separate material directions. Specify the exact formulation, required condition and material documentation for the chosen order. Define insert metal, connection details and joining method where relevant. A metal-colored region in a photograph does not verify an insert grade or retention performance.

• Reference the spare component and mating assembly.
• Dimension channel sections, tabs and insert positions.
• Choose actual resin and required supplied condition.
• Define insert specification, color and matt finish.
• Agree fit, retention and inspection evidence.

Set precision through controlled acceptance criteria

Set dimensional limits for the channel, tabs and insert seats, with units and the condition of the polymer when it is checked. Provide service conditions and suitable tests for any load, retention or environmental requirement. A generic precision label does not prove interchangeability or establish capability at every feature.

Include quantities and requested records with the enquiry. Keep different replacement configurations separately identified so the quotation and delivered parts can be checked against the correct installation definition.
