Custom ABS PP or Nylon Plastic Injection Molding Parts with Circular Openings and Raised Collars
-
Model Number2001Plastic Modling TypeInjection
-
Processing ServiceMoulding, Cutting, PaintingProduct namePlastic Injection Molding Custom Plastic Parts
-
ColorCustomizedSizeCustomized Size
-
MaterialPA66/PP/ABS /PC, EtcCertificationROHS
-
ShapeCustomized ShapesPackingStandard Carton Box
-
ServicePrompt DeliverySurface finishMatt Surface
-
PackagePP Bag

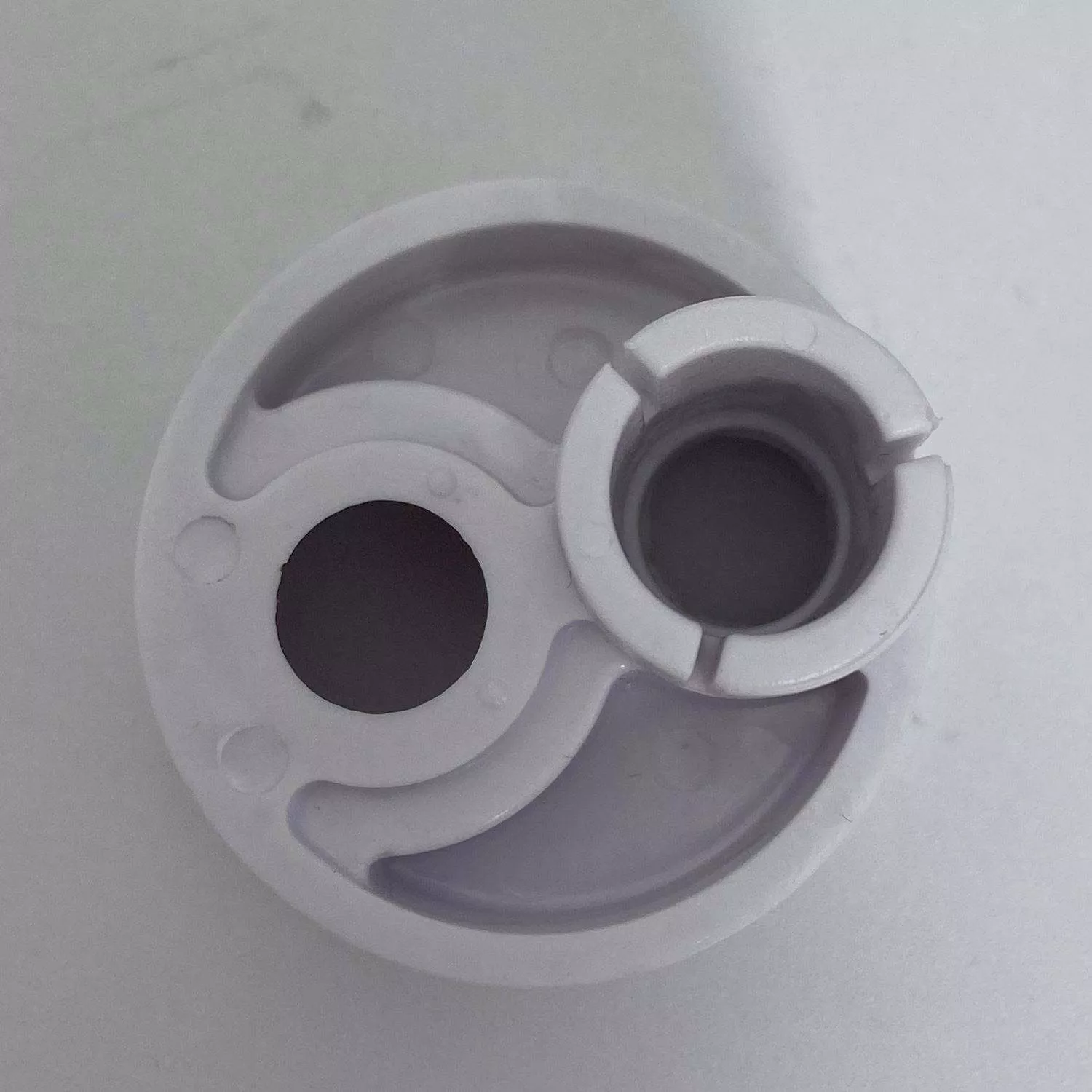

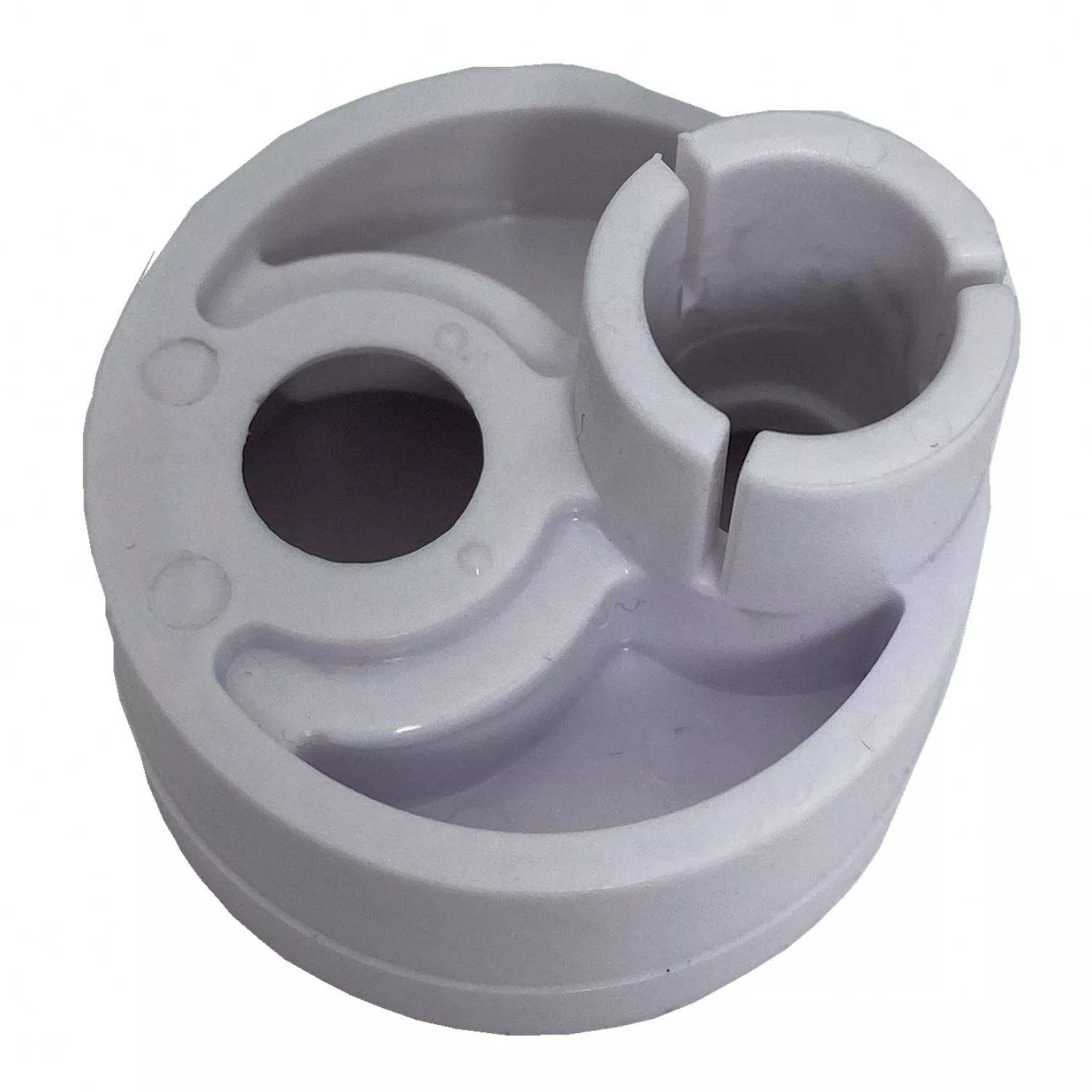

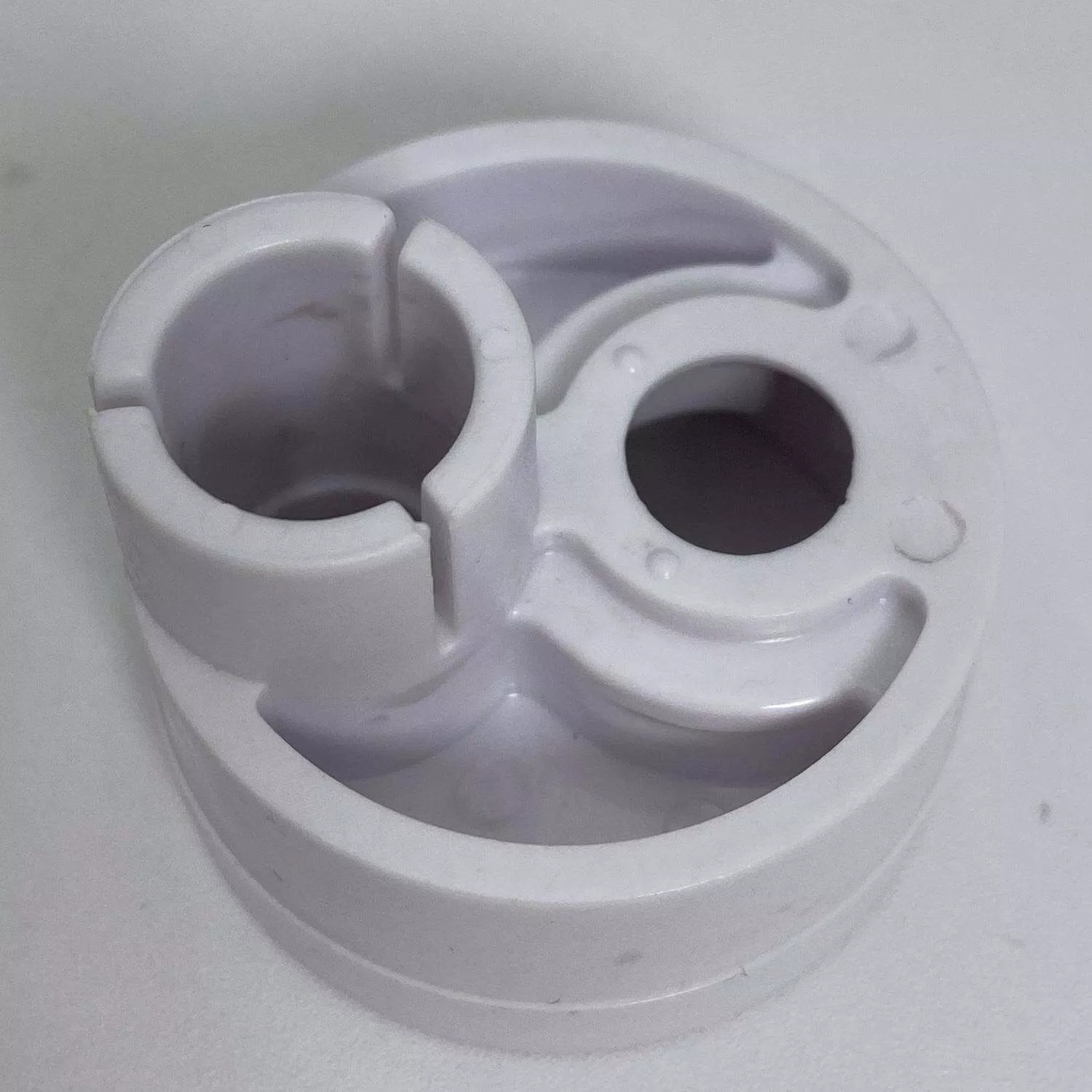

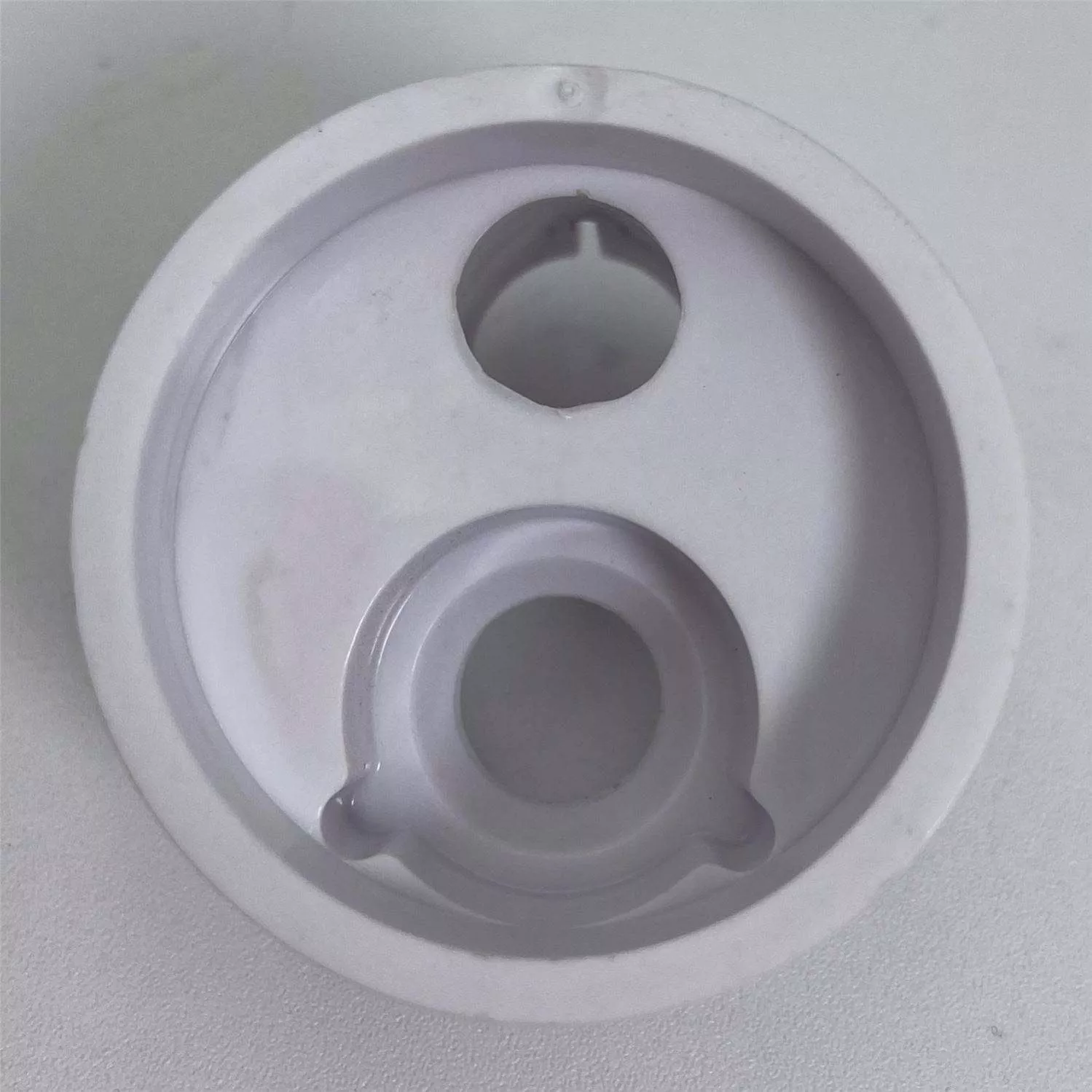

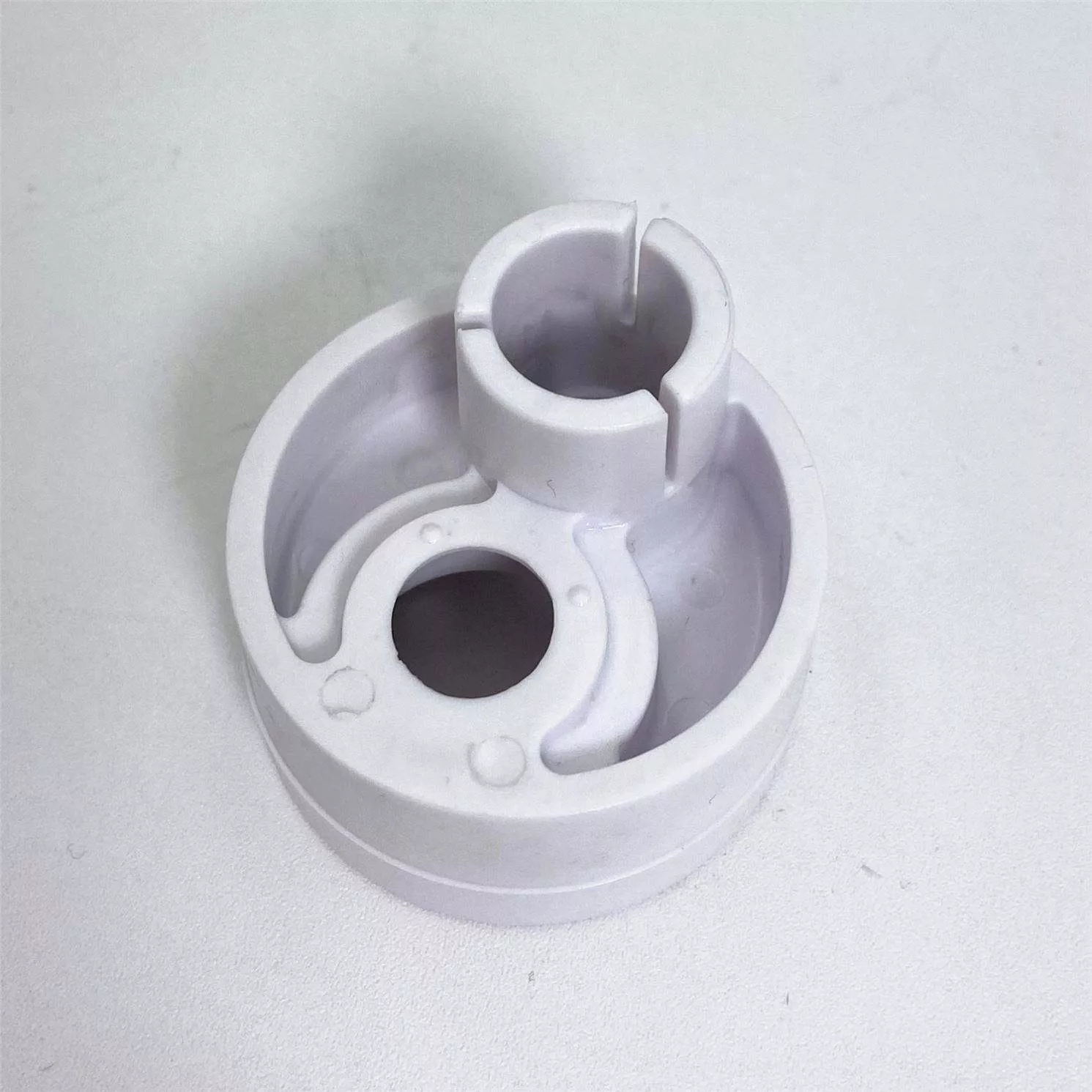

This model 2001 injection molding enquiry shows a rounded plastic part with circular openings, a raised split collar and recessed regions in its face. The different opening heights and surrounding contours should be captured in the component drawing. The sample does not establish a standard fitting size or a specific installed application.
Match the opening and collar geometry
Specify each opening diameter, its position and the height and profile of the collar. Show the split and any mating component that determines the required clearance. Include the outer contour and contact faces so that the finished part can be assessed against its intended assembly.
ABS, PP, PA66 and PC are listed options; nylon requests should identify the exact grade. Size, shape and color are customer-defined. Matte surfaces, cutting and painting are listed within the processing scope, with the required condition agreed for this design.
What to include with the request
Send the current drawing, quantity and critical dimensions. State any requirements for the opening, collar or contact faces that need inspection. Do not infer a clamping load or dimensional precision from the pictured shape; these need part-specific specifications.
