Product description
Project & Delivery Requirements
-
Model NumberDmetal2309Plastic Modling TypeInjection
-
Processing ServiceMoulding, CuttingApplicationCustom Palstic Parts
-
Drawing Format.pdf/ .stp/.stepProcessInjection Molding
-
MaterialPA66/PP/ABS /PC/ Glass Fiber, EtcKeywordCustom Plastic Injection Parts
-
NamePlastic InjectionMOQ100 pcs

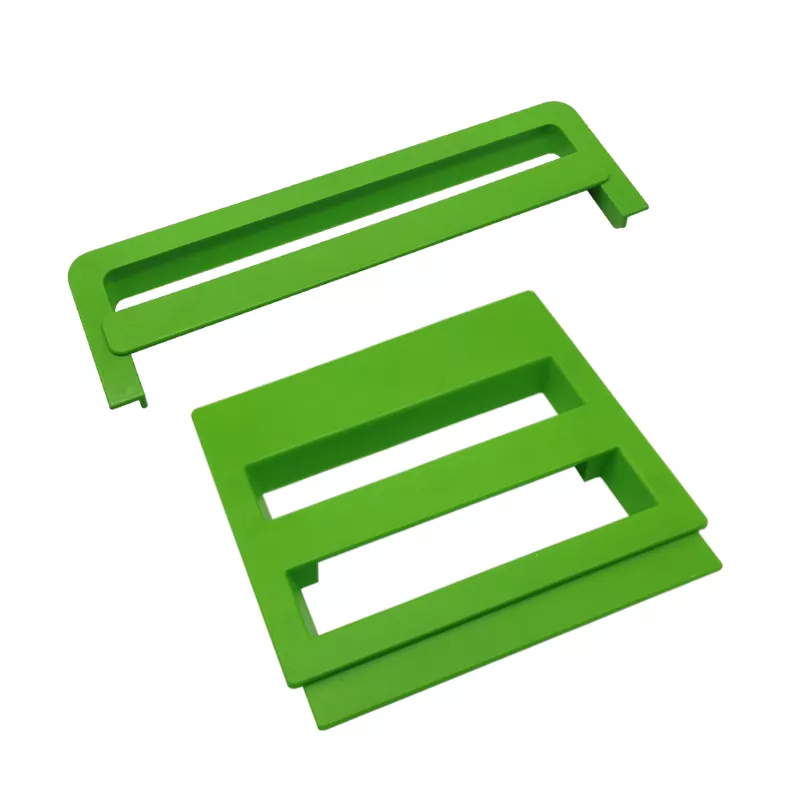

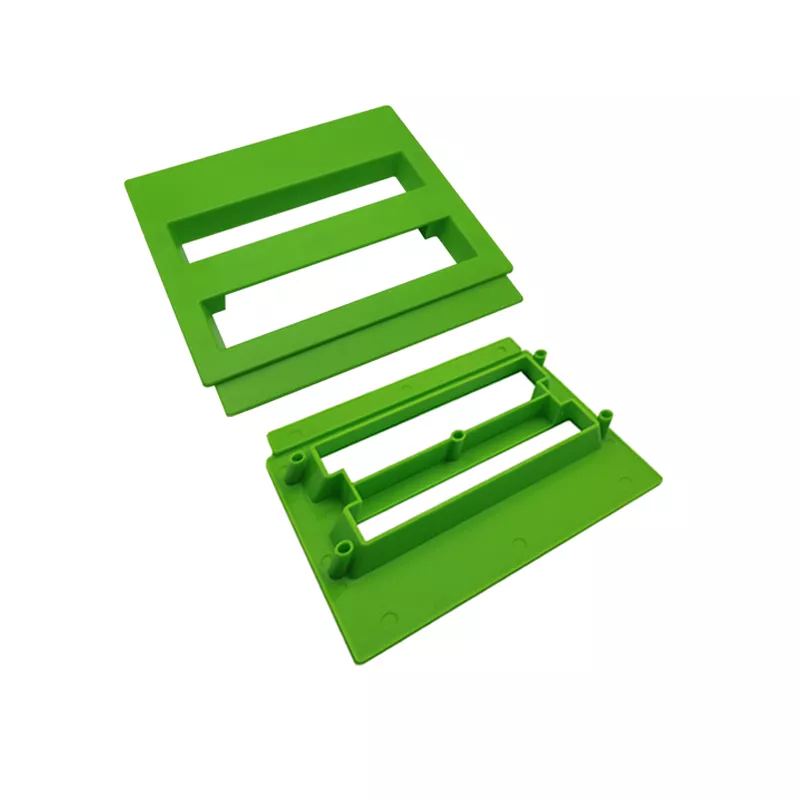

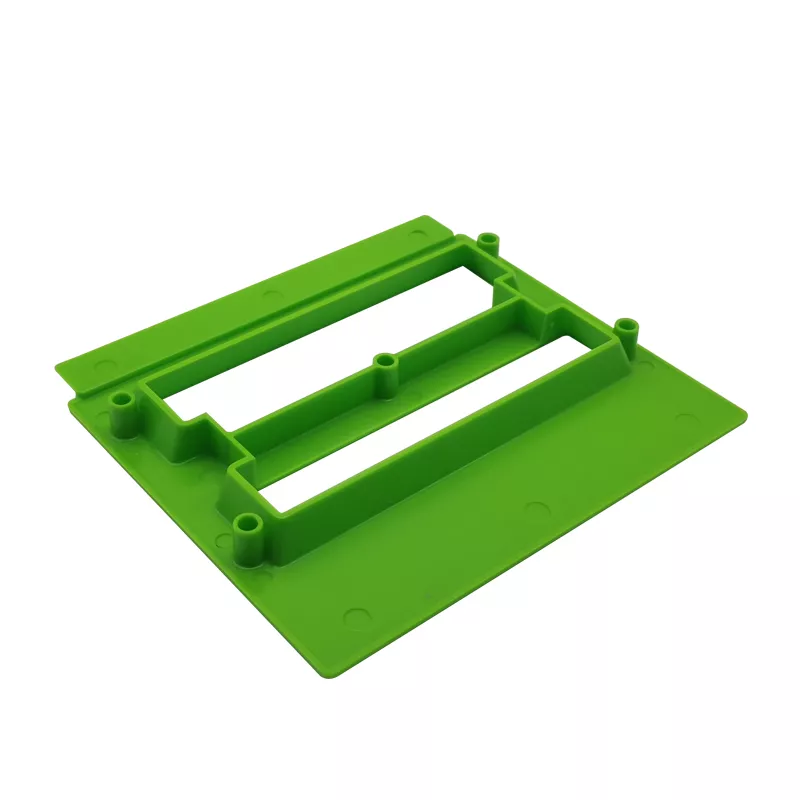

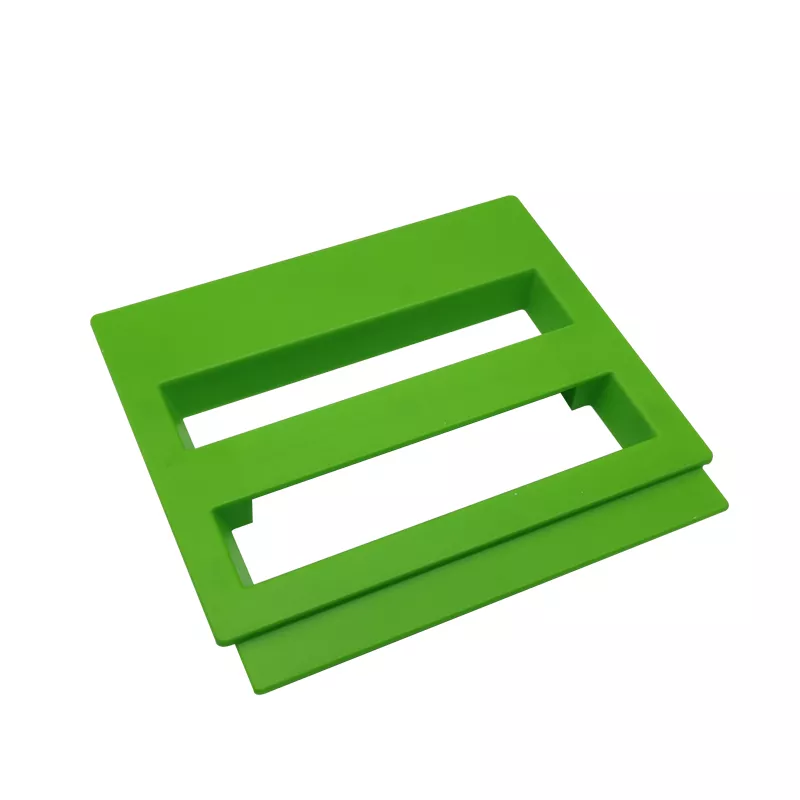

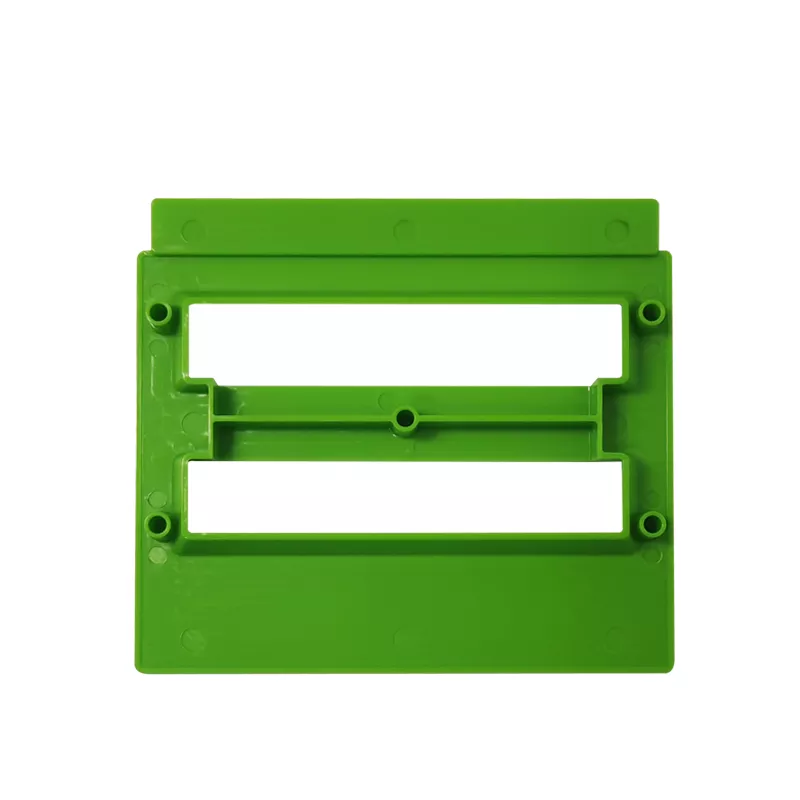

The green panel has two long rectangular openings, a central dividing region and raised mounting posts. Specify the opening widths, post locations and panel reference face on the drawing, including the features on the reverse side.
Select the resin and any reinforcement explicitly
For ABS or PP molding, identify the required grade. If glass-fiber reinforcement is needed, state the percentage and material specification; a general glass-fiber option does not define the compound for this panel.
Provide quantities, finish and the mating-component arrangement, with inspection criteria for the openings and mounting points. Similar front and reverse views elsewhere in the catalog are not proof of separate designs. Any strength or flatness requirement must be specified for the actual panel.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
