Custom Drawing ABS Injection Molded Plastic Parts with an Open Mounting Frame and Recessed Fixing Bosses
Generate QR code
Product description
Project & Delivery Requirements
-
Model Number2001Plastic Modling TypeInjection
-
Processing ServiceMoulding, Cutting, PaintingProduct namePlastic Injection Molding Custom Plastic Parts
-
ColorCustomizedSizeCustomized Size
-
MaterialPA66/PP/ABS /PC, EtcCertificationROHS
-
ShapeCustomized ShapesPackingStandard Carton Box
-
ServicePrompt DeliverySurface finishMatt Surface
-
PackagePP Bag

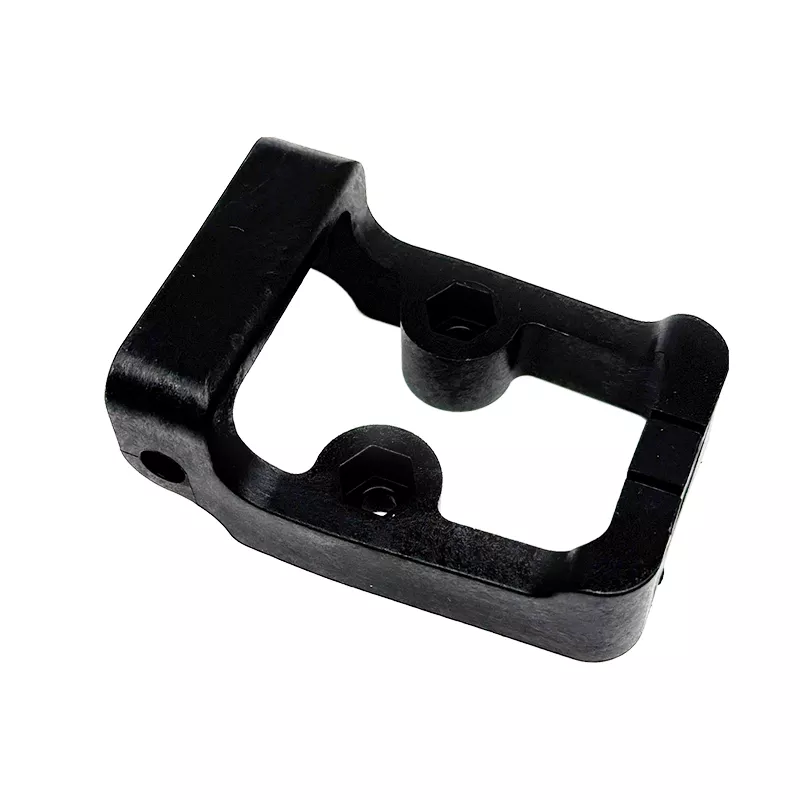

Mounting frame with defined fixing positions
The main example is an open frame with two recessed fixing bosses and a hole through one side. Define the open area, wall profile, boss centers and side-hole location together so the part aligns with its mating features.
For a custom ABS injection molding enquiry, specify the resin grade, quantities and inspection dimensions. Model 2001 lists molding, cutting and painting, with customized size, shape and color and a matte surface. PA66, PP and PC are additional listed options. Identify any inserted hardware and whether it is included in the requested supply; the photograph does not specify an assembly load rating.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
