Custom Small Plastic Injection Molded Parts with Shaped Mounting Bases and Slotted Circular Components
Generate QR code
Product description
Project & Delivery Requirements
-
Model NumberS2410Plastic Modling TypeInjection
-
Processing ServiceMoulding, CuttingColorCan be customized
-
SizeCustomized SizeMaterialPA66/PP/ABS /PC, Etc
-
CertificationROHSFeatureHigh Precision
-
ShapeCustomized ShapesPackingStandard Carton Box
-
ServicePrompt DeliverySurface finishMatt Surface
-
PackagePP Bag

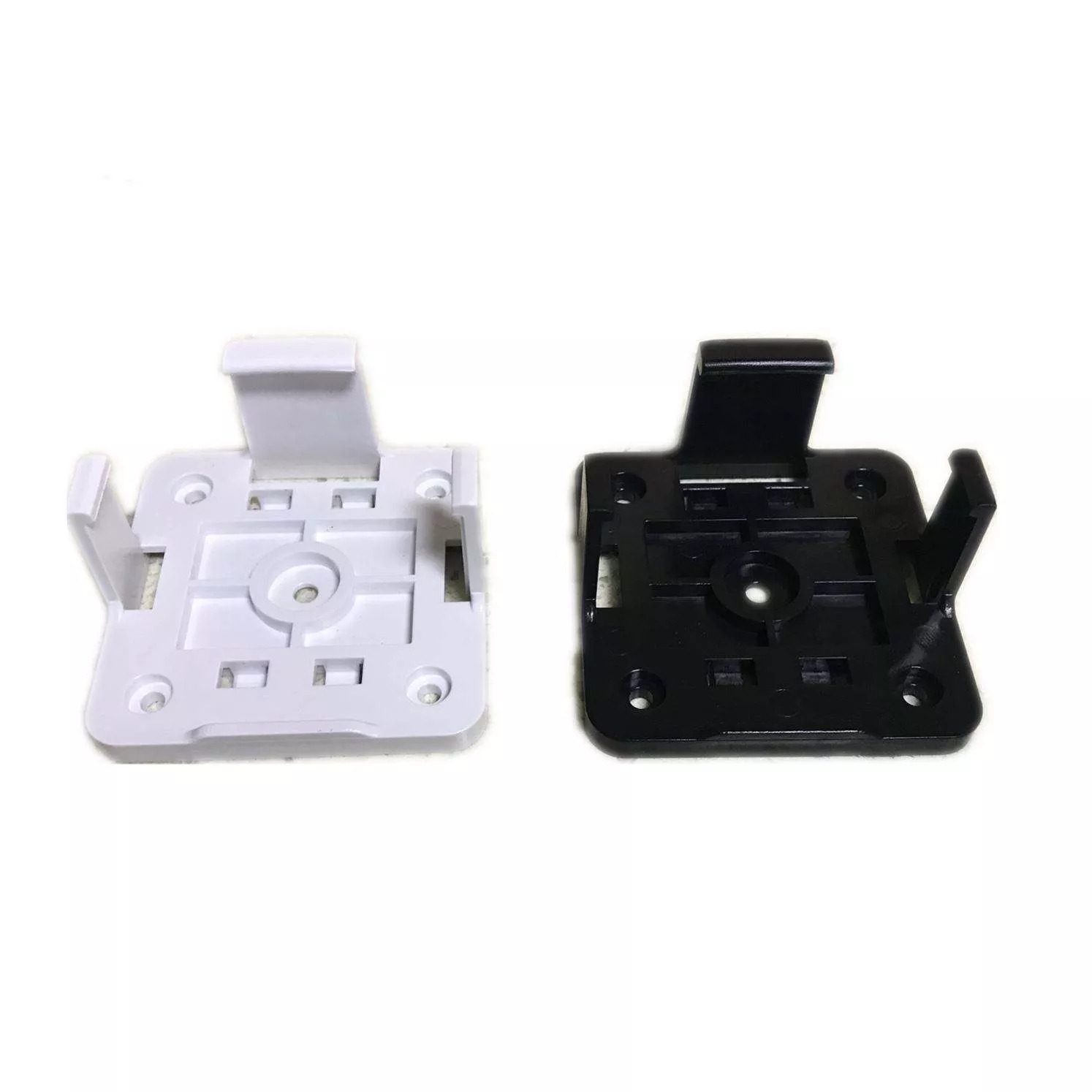

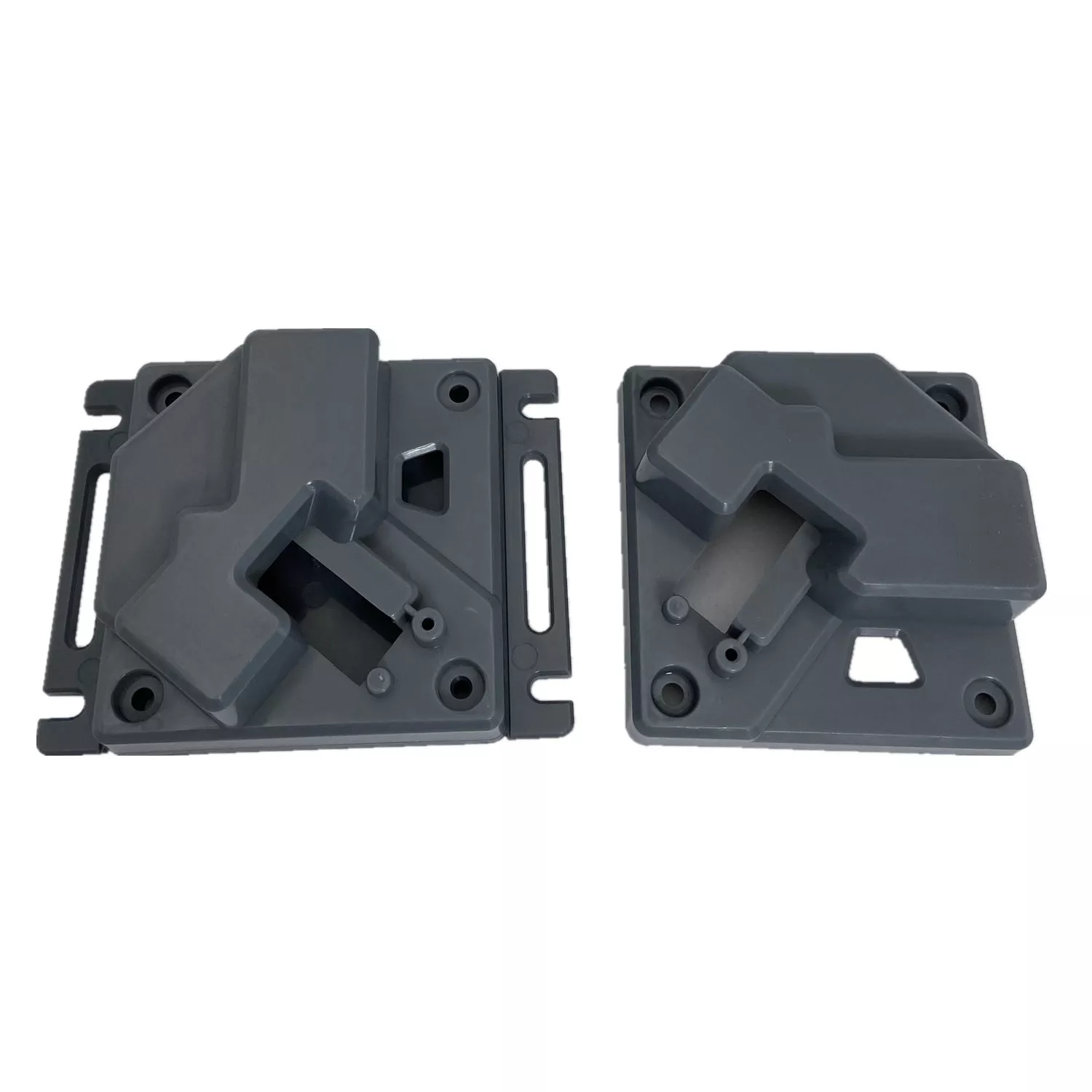

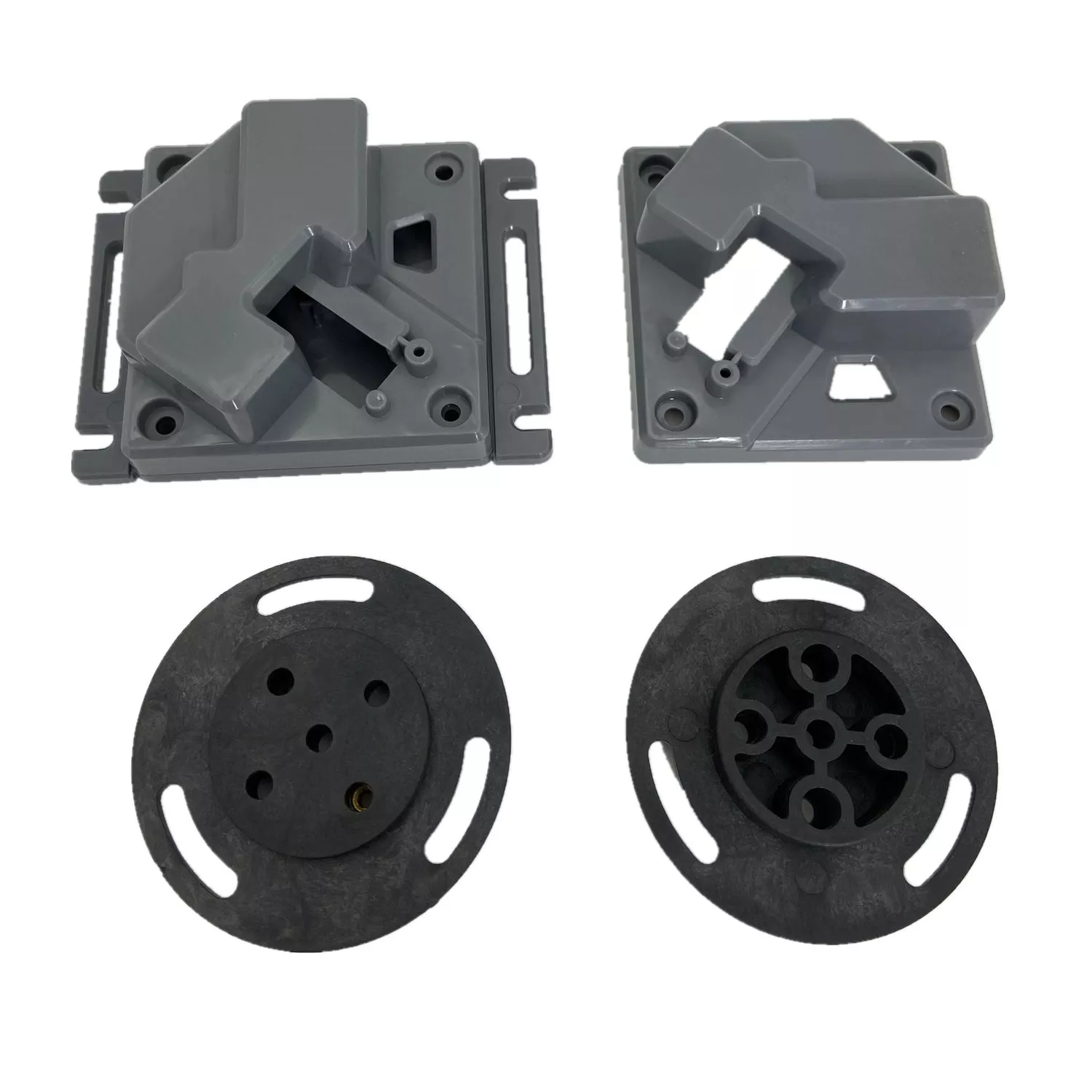

The S2410 examples include shaped mounting bases with raised walls and circular components with curved slots. These are separate profiles for drawing-based selection. Identify which pieces are required and show how each locates against the surrounding assembly.
Outline, openings and locating features
Provide the outer contour, slot positions, fixing holes and any bosses or internal steps. Choose the PA66, PP, ABS or PC grade and specify the required color and matte appearance. Molding and cutting are listed processes. Include the quantities for each selected part and the dimensional acceptance criteria; component size and function should follow the drawing rather than photographed proportions.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
