Custom 6000 Series Aluminum Extrusion Profiles with Offset Flanges, a Connecting Web and Machining Options
Generate QR code
Product description
Project & Delivery Requirements
-
Grade6000 SeriesTemperT3-T8
-
ApplicationHeat SinkShapeT - Profile
-
Alloy Or NotIs AlloyModel NumberS 2407
-
Tolerance0.05mmProcessing ServiceBending, Decoiling, Welding, Punching, Cutting, extruding
-
Delivery Time15-21 daysProduct nameCustom Extrusion Aluminum Heat Sink Enclosure
-
ColorPanton ColorSurface treatmentAnodized/oxide etc /powder coated
-
ToolingMade by ourselfCertificationISO9001:2008/ ISO14001:2004/ OHSAS 18001:1999/PPG/TUV
-
KeywordHeatsinkMaterial & TemperAlloy 6063-T5/6061-T6
-
Deep processExtrusion Driling Precison Cutting CNCFabricationExtruded+cutting+machining
-
LengthLongest 6 Meters

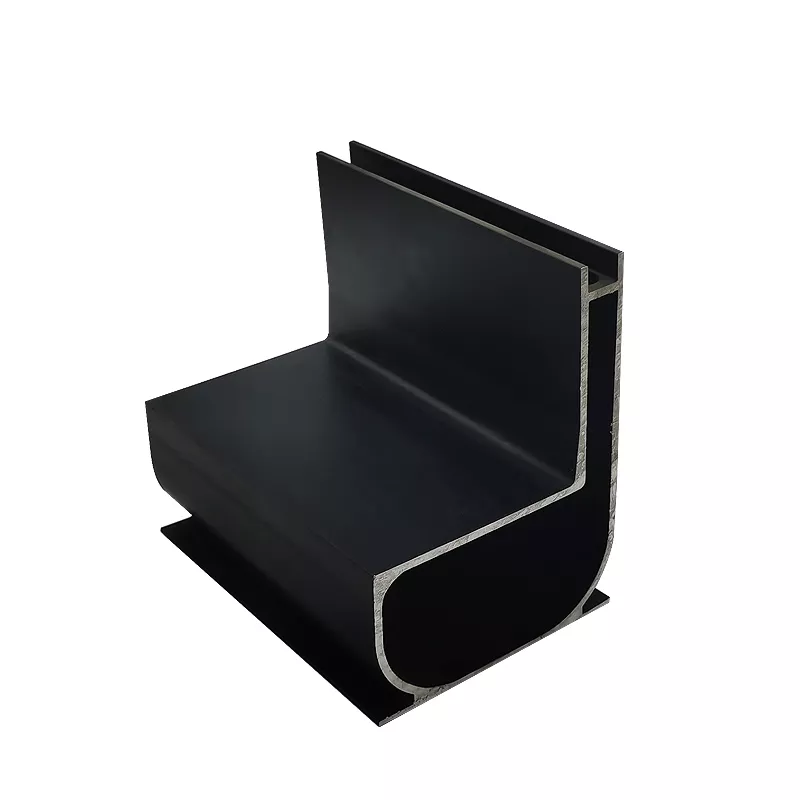

Offset flanges joined by a longitudinal web
The main section has broad flanges at different levels, a connecting web and a narrow projecting edge feature. Define the full outline and the mating clearances in section, with the hole positions and end preparation shown separately.
Model S 2407 lists extrusion, cutting and machining, with 6063-T5 and 6061-T6 aluminum choices. Specify the selected alloy and temper, cut length, quantities and machining datums. Anodized, oxide and powder-coated finishes with customized colors are listed options. Agree the finish specification independently of the sample color, and identify the dimensions that control flange alignment within the assembly.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
