Custom Drawing 6061 6063 Anodized Aluminum Extruded Heat Sink with Side Fixing Flanges
Generate QR code
Product description
Project & Delivery Requirements
-
Grade6000 SeriesTemperT3-T8
-
ApplicationHeat Sink, Industrial EquipmentShapeT - Profile
-
Alloy Or NotIs AlloyModel NumberDM- Aluminum Extrusion
-
Tolerance+-0.05mmProcessing ServiceCutting, extruding
-
Delivery Time22-30 daysProduct material6063 Aluminum
-
ColorBlack MetalSizeCustomized
-
Surface treatmentAnodized/oxide etc /powder coatedToolingMade by ourself
-
PackingCartonProcessSand casting +CNC Machining
-
CertificationISO9001-2008MachiningAvailable

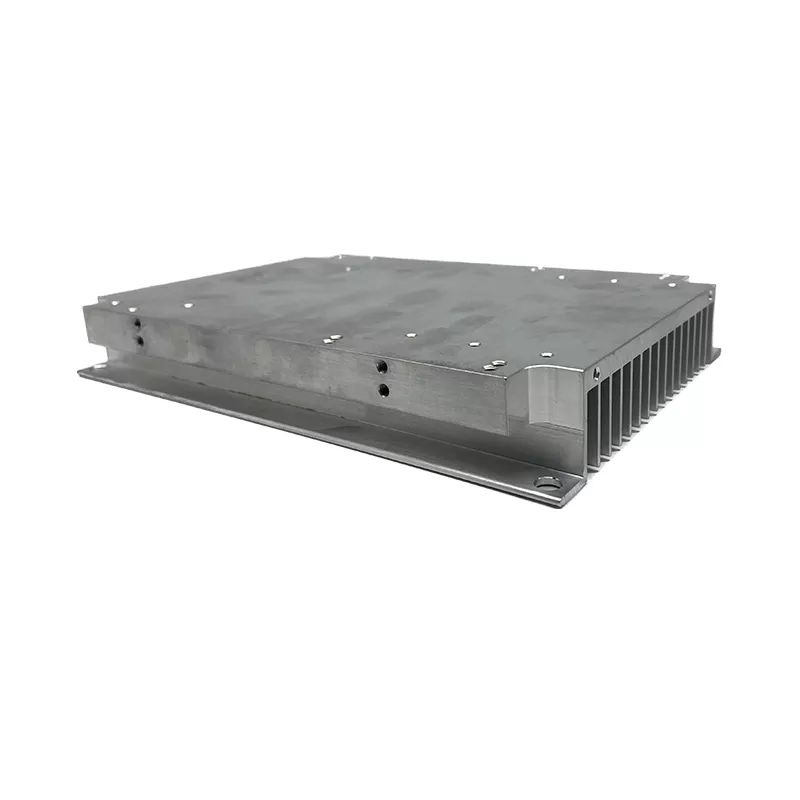

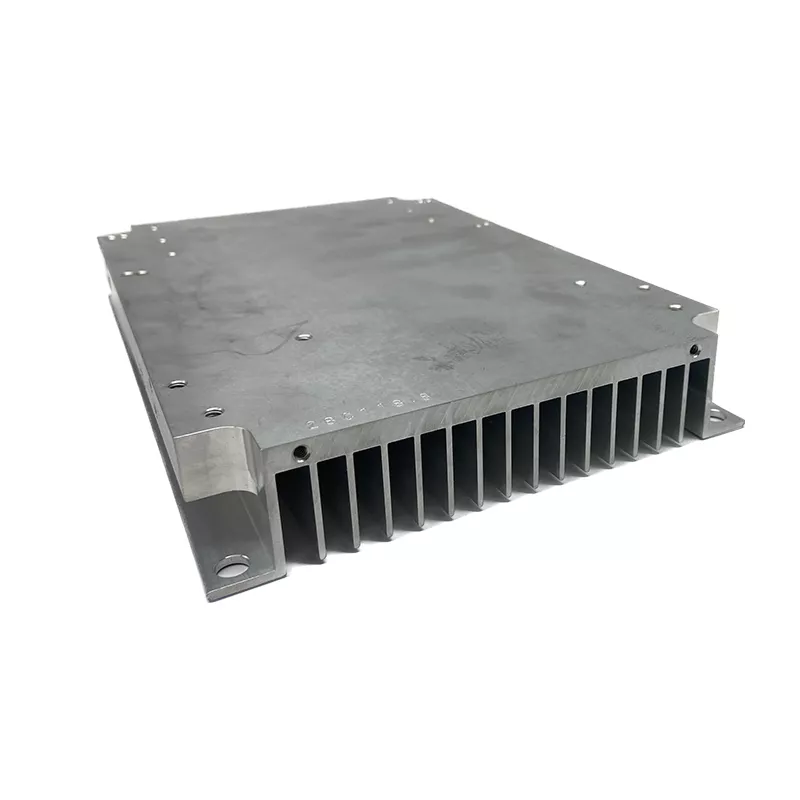

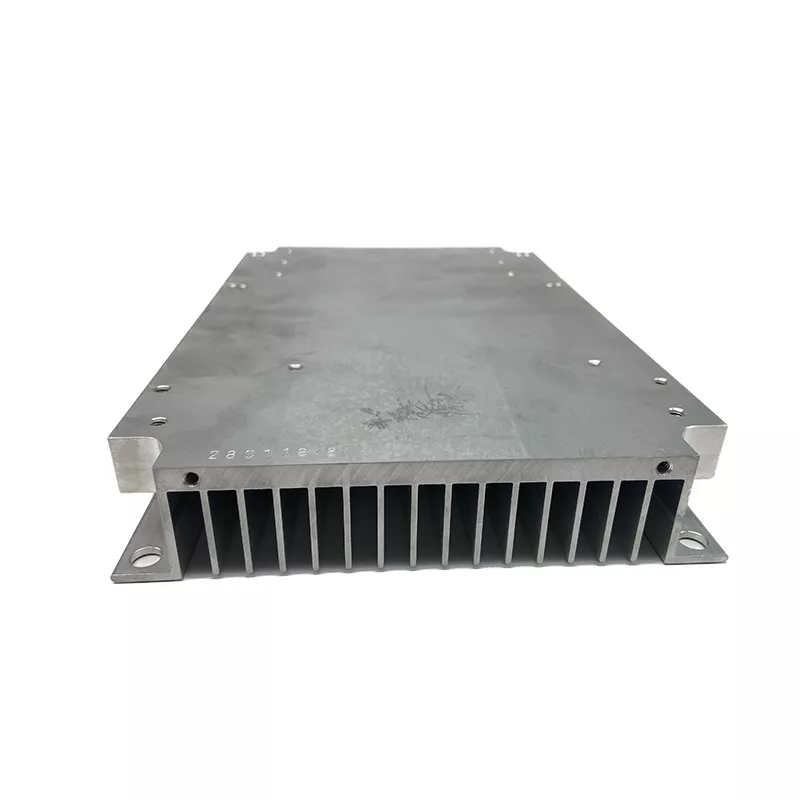

Side flanges locate the profile in the assembly

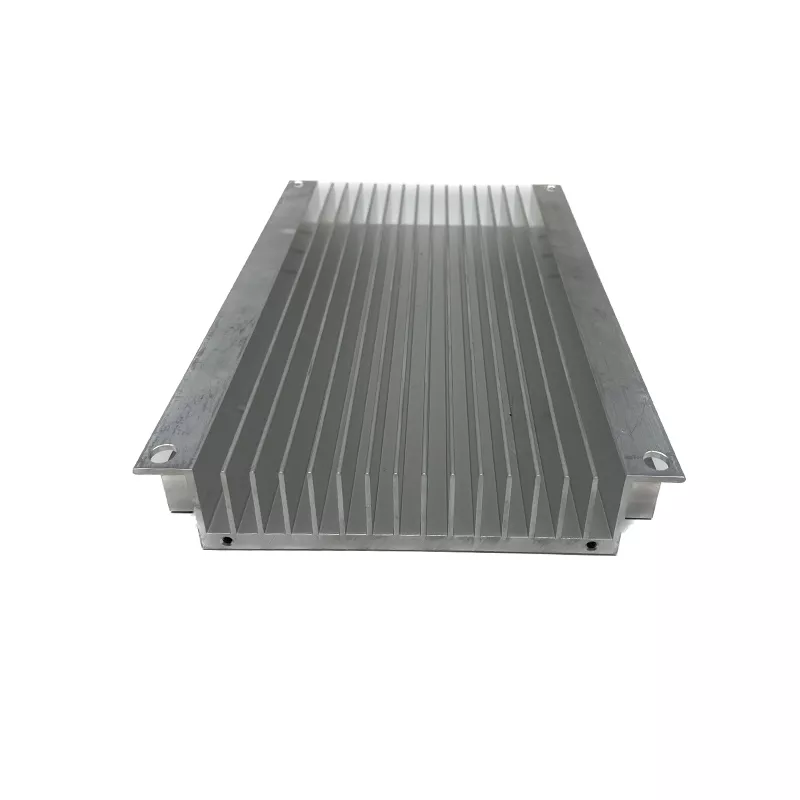

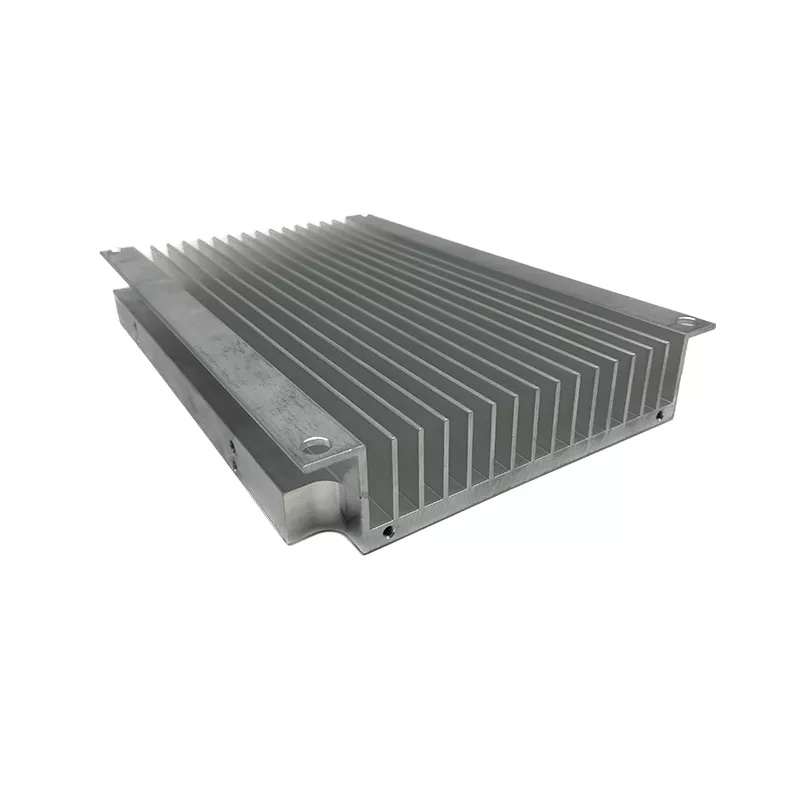

The retained example has low parallel fins between outer mounting flanges with fixing features. Dimension the flange positions relative to the contact face and define the required clearance for the mating fasteners and nearby components.
Section and machining requirements
For a 6061 or 6063 aluminum extrusion enquiry, specify the selected alloy and temper, cross-section and cut length. Show any machined holes or end details and identify the required anodizing or other finish.

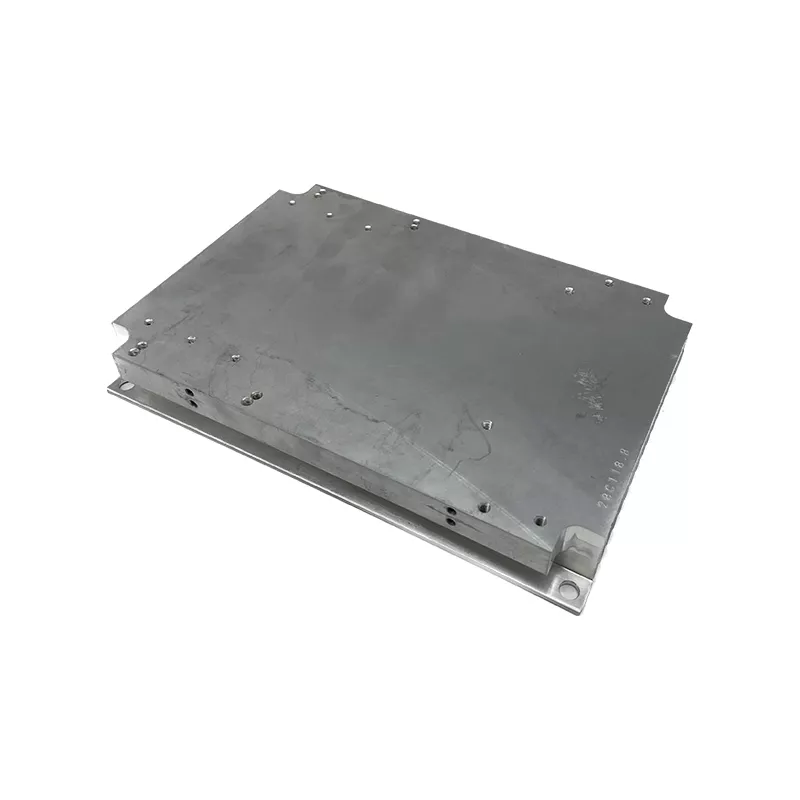

Include the heat-source interface, airflow and thermal design requirements. Provide quantities and the drawing revision, with inspection dimensions for the flanges, fixing features and contact surface.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
