Custom Drawing Precision Aluminum CNC Milling Parts with Threaded Hole Rows and Angled Mounting Faces
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Turning, Wire EDM, Rapid Prototyping
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model NumberDmetalProcessCNC Machining
-
Product nameCustom Machining PartsServiceCNC Turning and Milling
-
EquipmentCNC CenterSurface FinishingAnodizing, Powder Costing, Plating
-
MaterialALuminum/ Steel / BrassDrawing Format2D/(PDF/CAD)3D(IGES/STEP)
-
Tolerance0.1KeywordCNC Machining Parts
-
OEM/ODMYes
Threaded rows on differently shaped mounting pieces

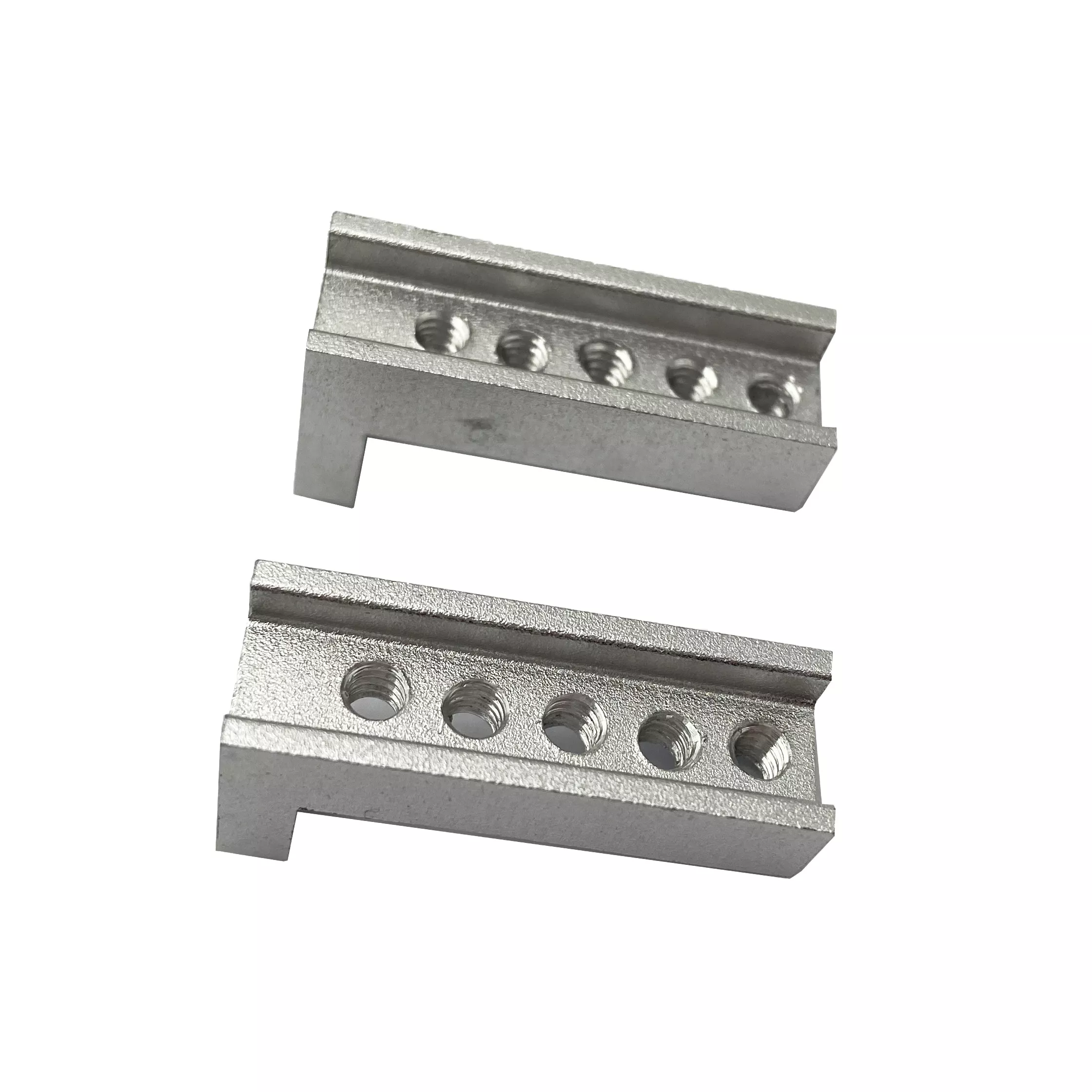

The pictured examples have repeated threaded holes along their length, with one channel-like profile and one angled mounting face. Select the required profile and provide its complete drawing so the hole pattern and supporting faces are reviewed as one component.
Specify thread size and depth, center spacing and the reference faces used to locate the row. Show the complete cross-section, finished length and any end or mounting openings.
From drawing to quotation
Aluminum is among the listed materials for CNC milling and turning, with OEM/ODM service available. State the alloy and required anodized, powder-coated or plated finish for review. PDF, CAD, IGES and STEP drawing formats are listed. Include quantities, revision and dimensional acceptance requirements for the selected item.
