Custom Small Plastic Parts with Rubber Overmolding | Insert and Coating Enquiries
-
Model NumberS2310Plastic Modling TypeInjection
-
Processing ServiceMoulding, Cutting, PaintingColorCustomized
-
SizeCustomized SizeMaterialPA66/PP/ABS /PC, Etc
-
CertificationROHSFeatureHigh Precision
-
ShapeCustomized ShapesPackingStandard Carton Box
-
ServicePrompt DeliverySurface finishMatt Surface
-
PackagePP Bag
A central opening surrounded by an outer molded form

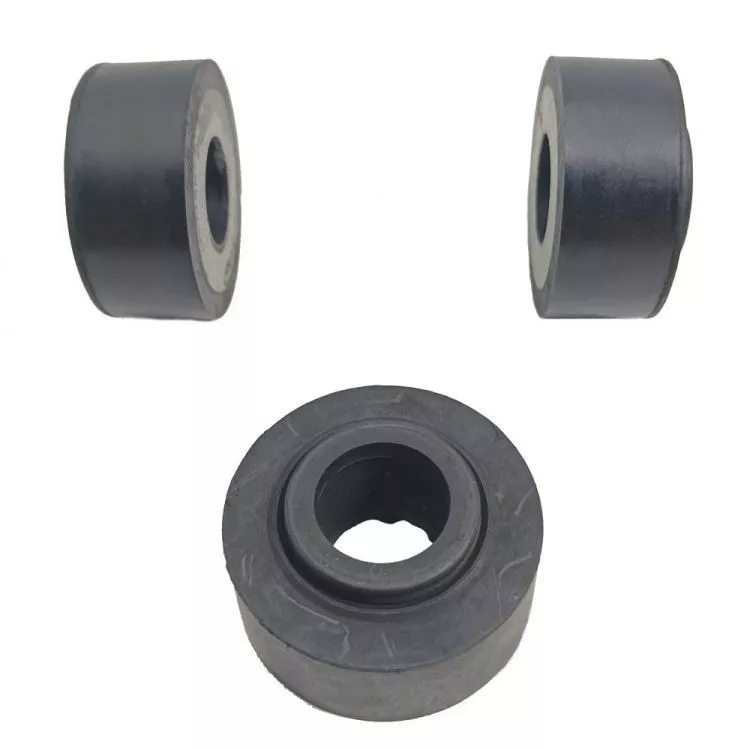

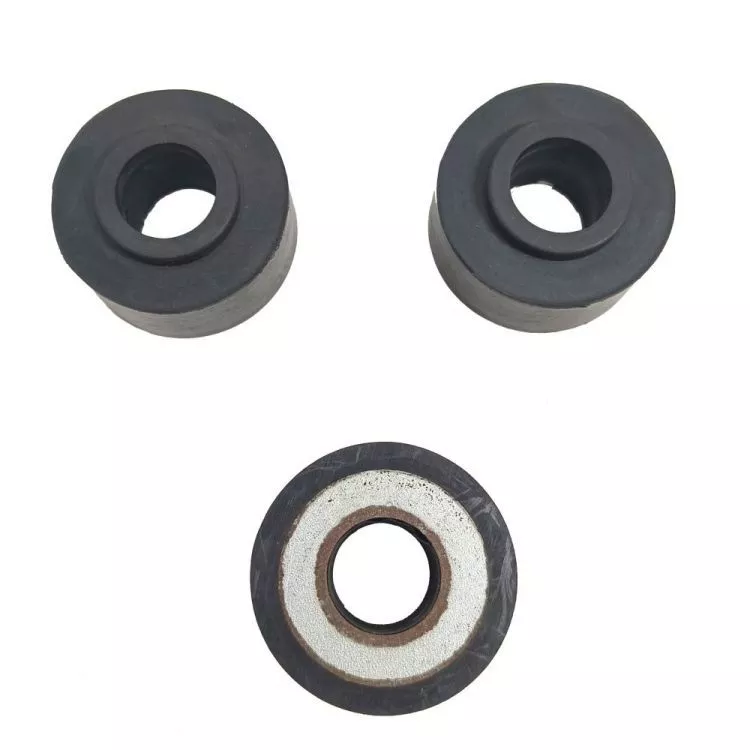

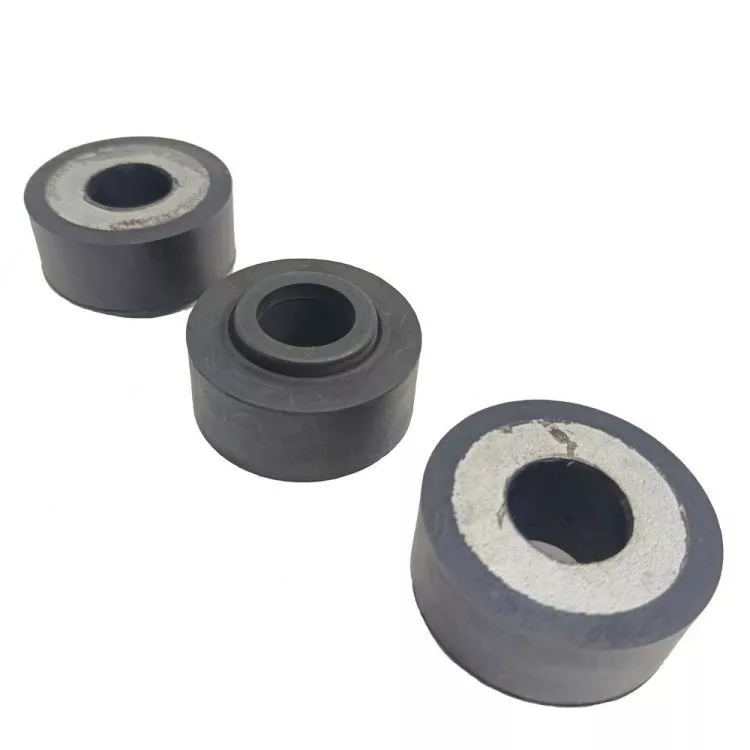

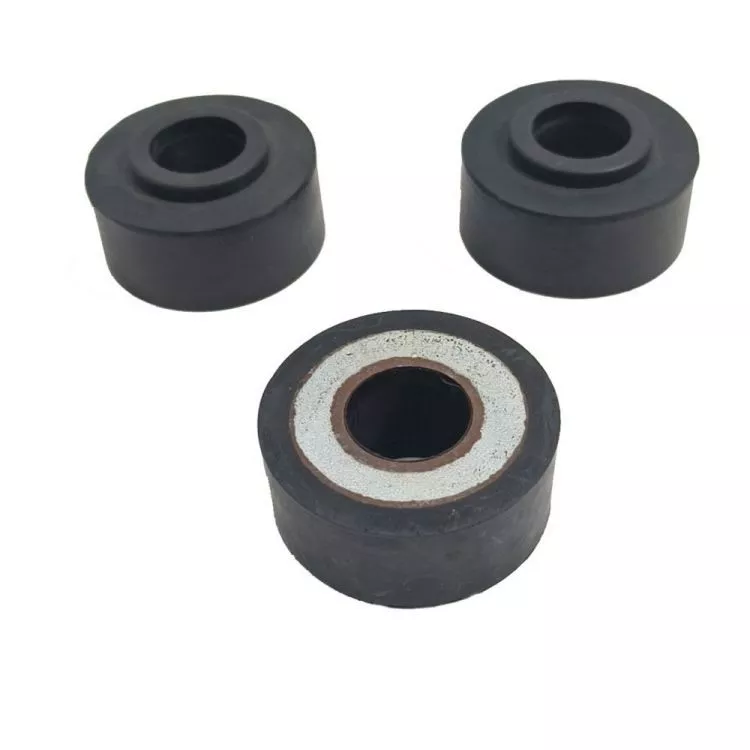

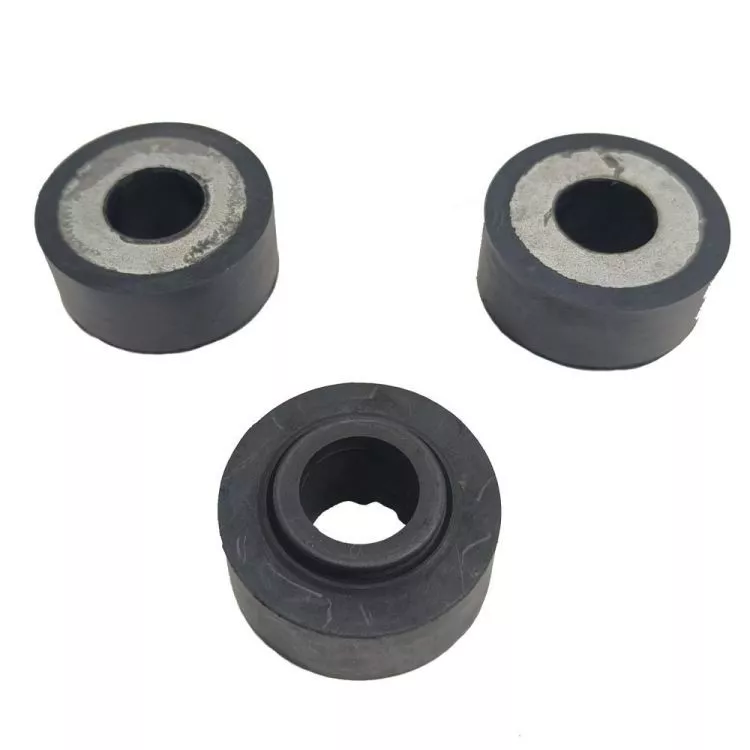

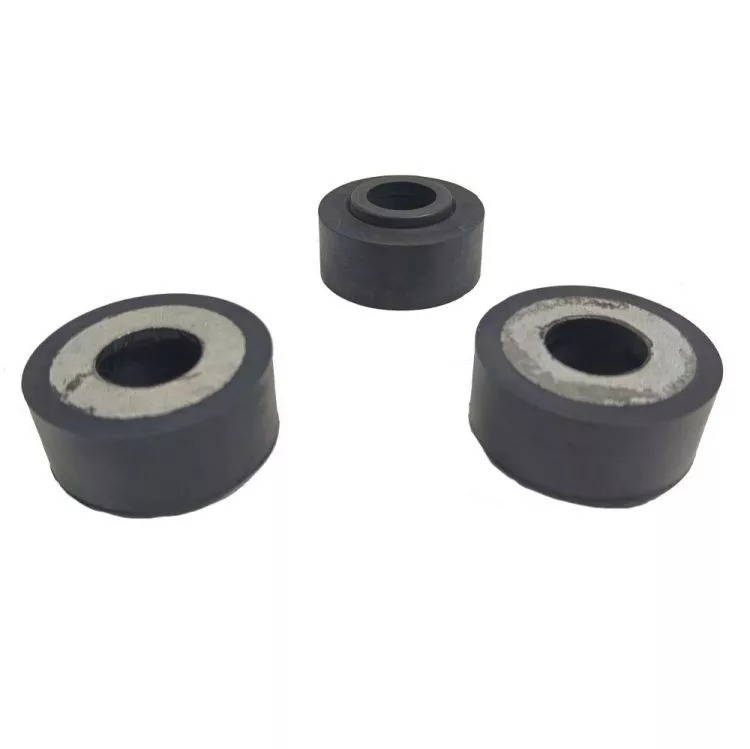

The round examples show a raised region around a bore; one view also shows a contrasting inner ring. Define the inner component, outer form and bore dimensions on the assembly drawing rather than identifying the materials from their appearance.
Describe both materials for an overmolding project
If rubber overmolding is required, specify the substrate and outer-layer grades, layer thickness and any hardness requirement. Include the intended bonding or mechanical-retention features. A general thermoplastic list does not identify the elastomer or prove a particular bond.
Provide quantities, finish and the critical dimensions at the bore and outer contact. State any functional test requirements for the actual assembly. The photographs alone do not establish that every example uses the same insert or coating process.
