Custom Extruded Aluminum Heat Sinks with Double Sided Fins, Offset Mounting Pads and Machining
Generate QR code
Product description
Project & Delivery Requirements
-
Grade6000 SeriesTemperT3-T8
-
ApplicationHeat SinkShapeAngle
-
Alloy Or NotIs AlloyModel NumberS 2301
-
Tolerance0.02mm, ±0.02Processing ServiceBending, Decoiling, Welding, Punching, Cutting, Machining
-
Delivery Time15 daysMaterial6063/ 6061 etc
-
MachiningAvailableSurface treatmentAnodized/oxide etc /powder coated
-
ToolingMade by ourselfSurface ColorCustomized Panton Colors

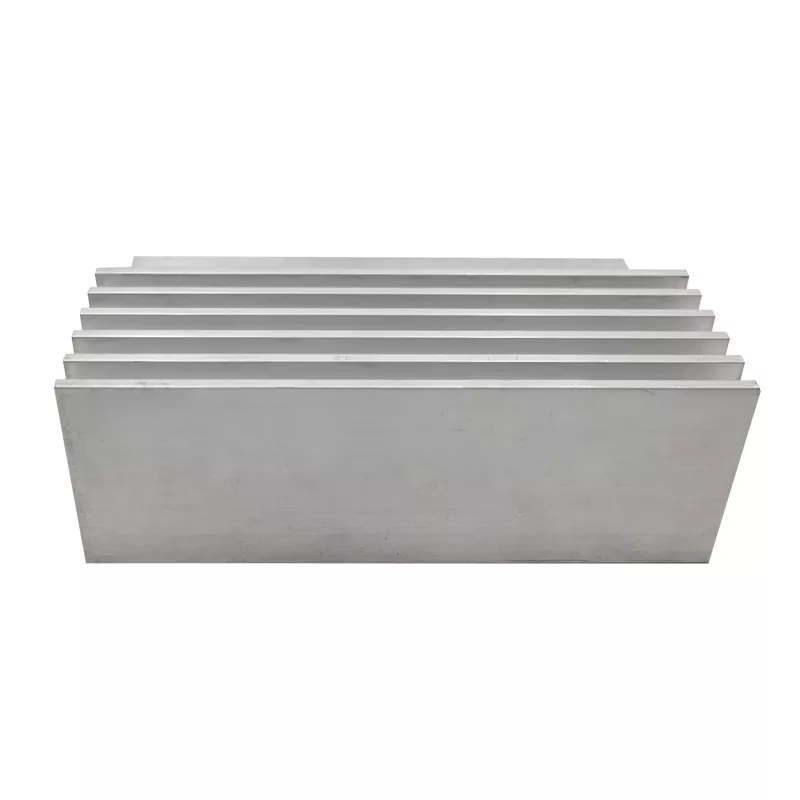

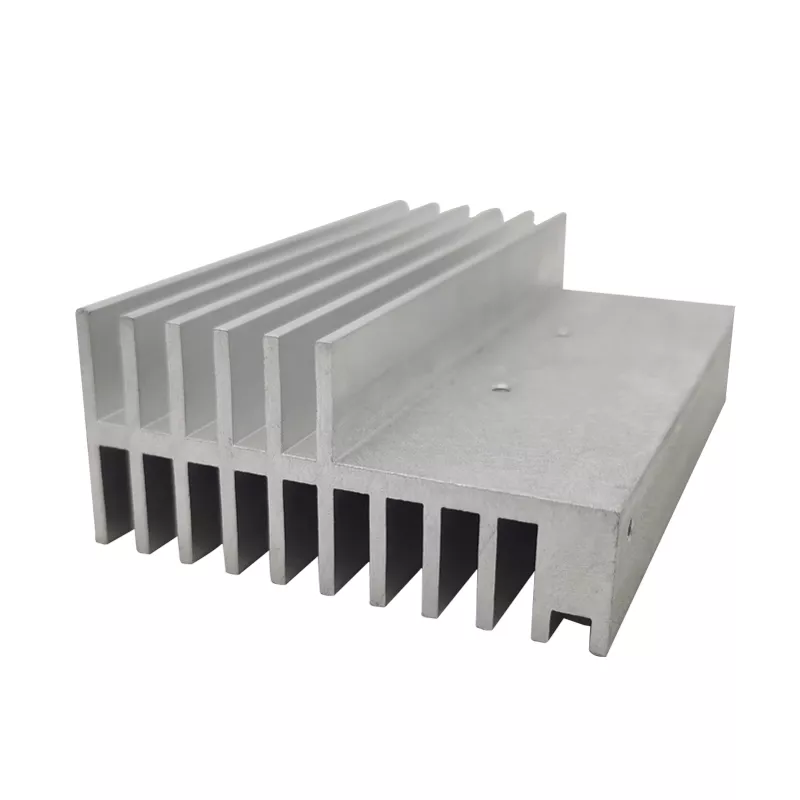

Double-sided fins and an exposed mounting pad

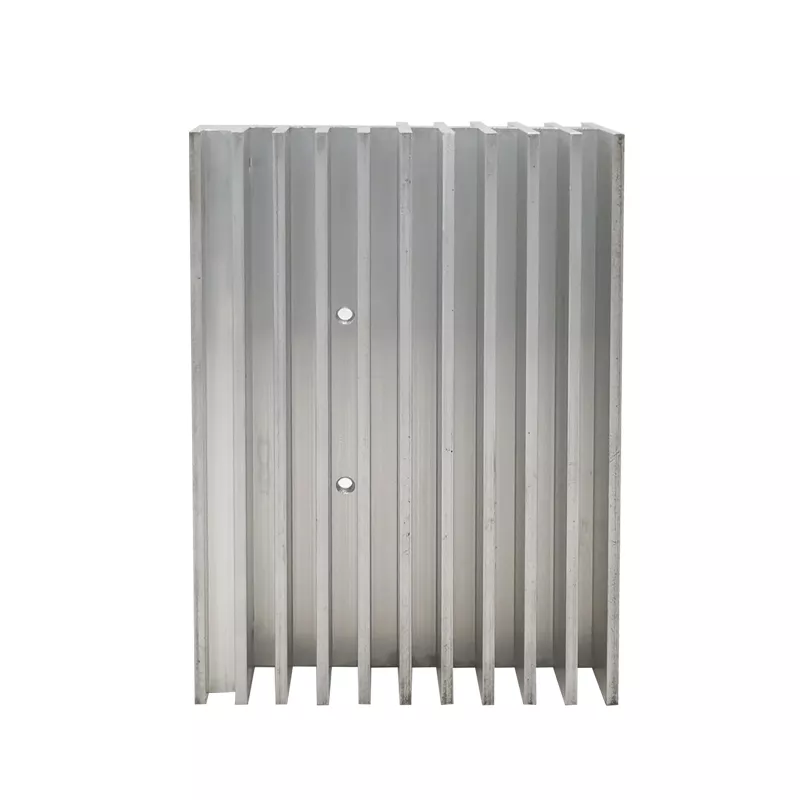

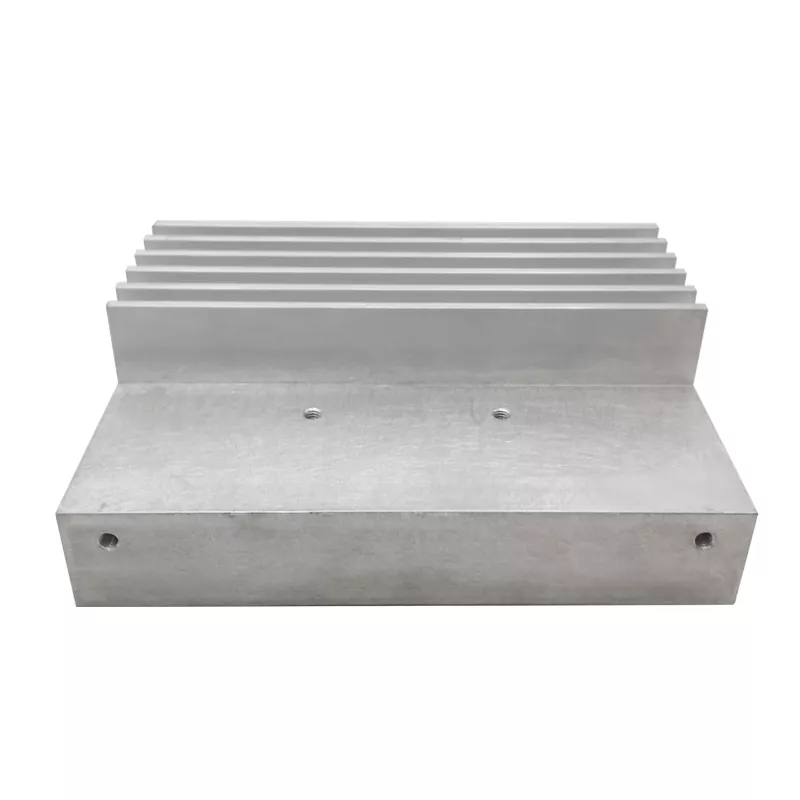

The illustrated section has fins on opposite sides of the base, with a broad exposed pad beside the upper fin group. Show the component contact area and fixing holes on that pad, with the clearance needed around both sets of fins.
6063 and 6061 aluminum, machining and customized surface colors are listed for model S 2301. Specify the alloy, temper, profile length, base thickness and finish for quotation. Include the heat input, installation orientation and airflow when requesting thermal suitability review. Agree critical dimensions and quantities from the drawing rather than assuming a cooling rating or a standard envelope from the image.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
